Ford
>>
2014
>>
Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution/SJB
>>
F20, F21, F31, F34, F35, F38
F20, F21, F31, F34, F35, F38

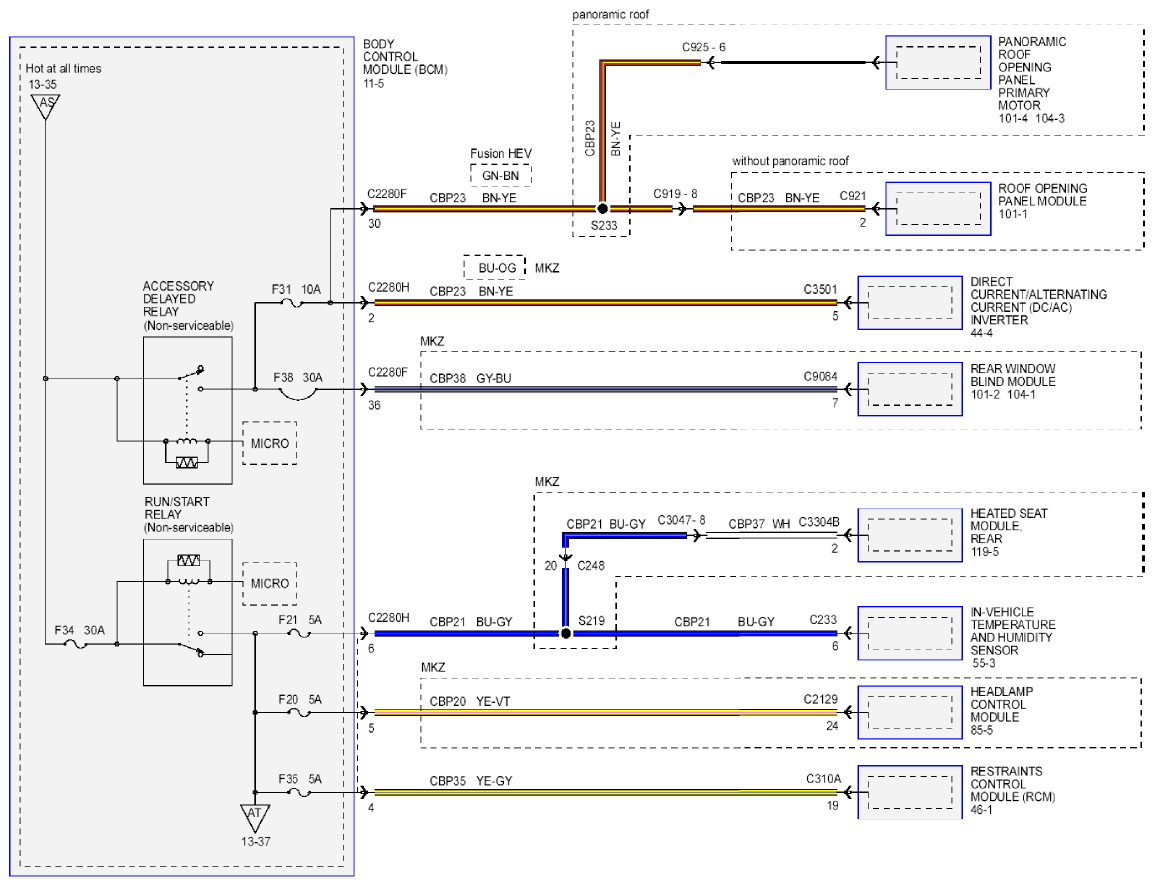

Fig 1: Power Distribution - Wiring Diagram - F20, F21, F31, F34, F35, F38
Courtesy of FORD MOTOR CO.
