F19, F22, F36, F37

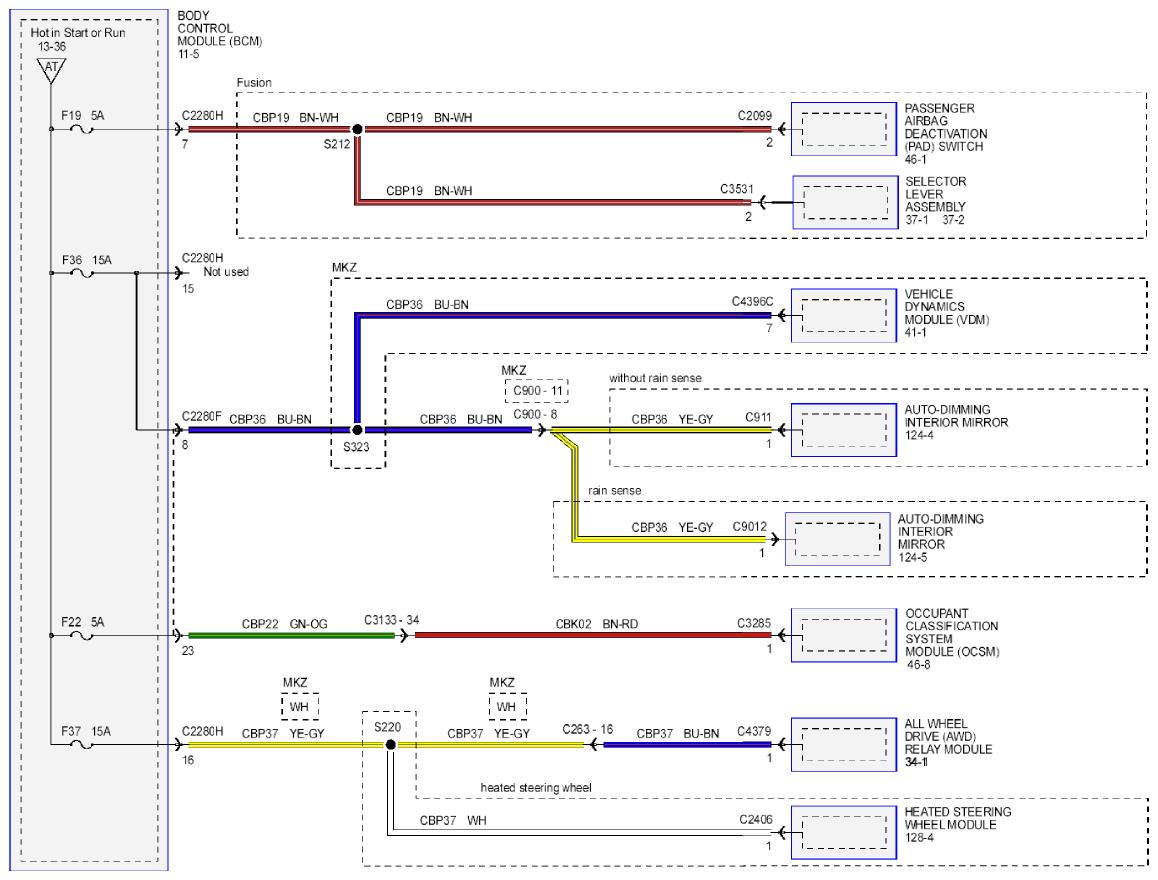

Fig 1: Power Distribution - Wiring Diagram - F19, F22, F36, F37

G09269351

Courtesy of FORD MOTOR CO.
