Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution/SJB
>>
F18, F37, F62, F67
F18, F37, F62, F67

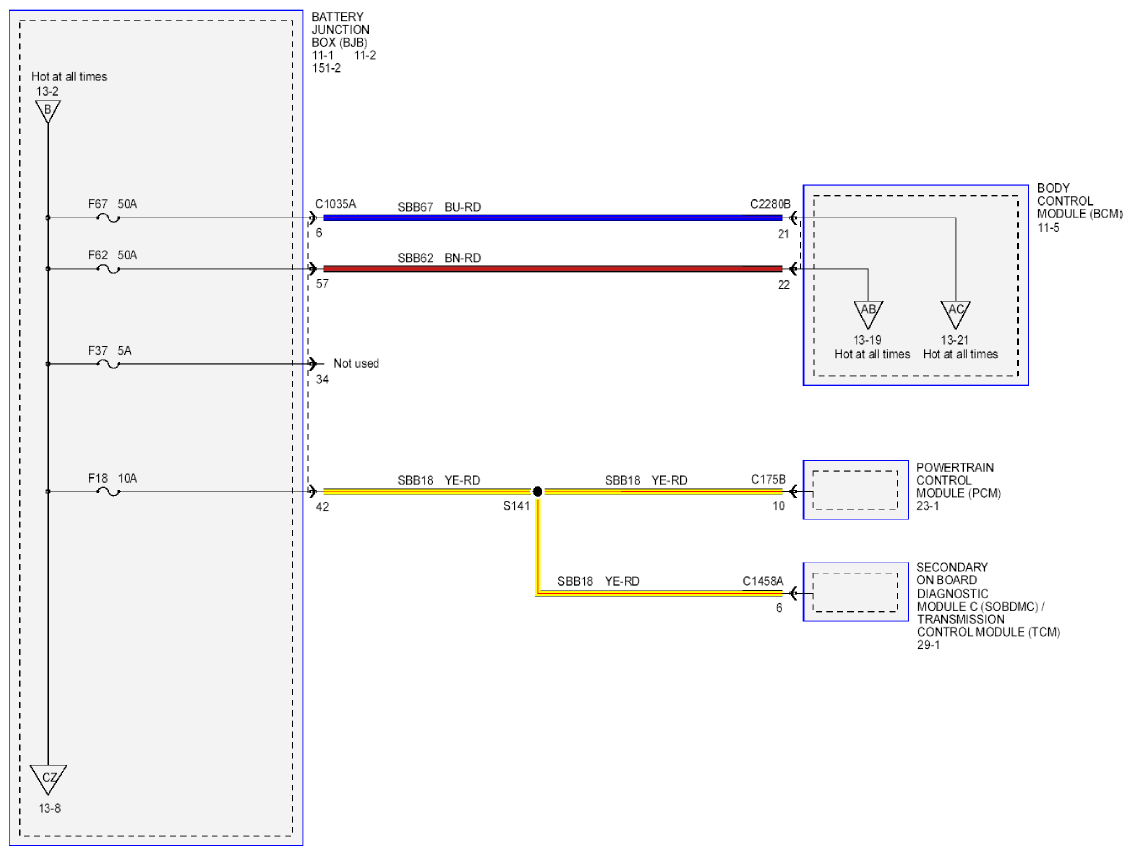

Fig 1: Power Distribution - Wiring Diagram - F18, F37, F62, F67
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
