Power Distribution/SJB
>>
F17, F27, F35, F36, F64
F17, F27, F35, F36, F64

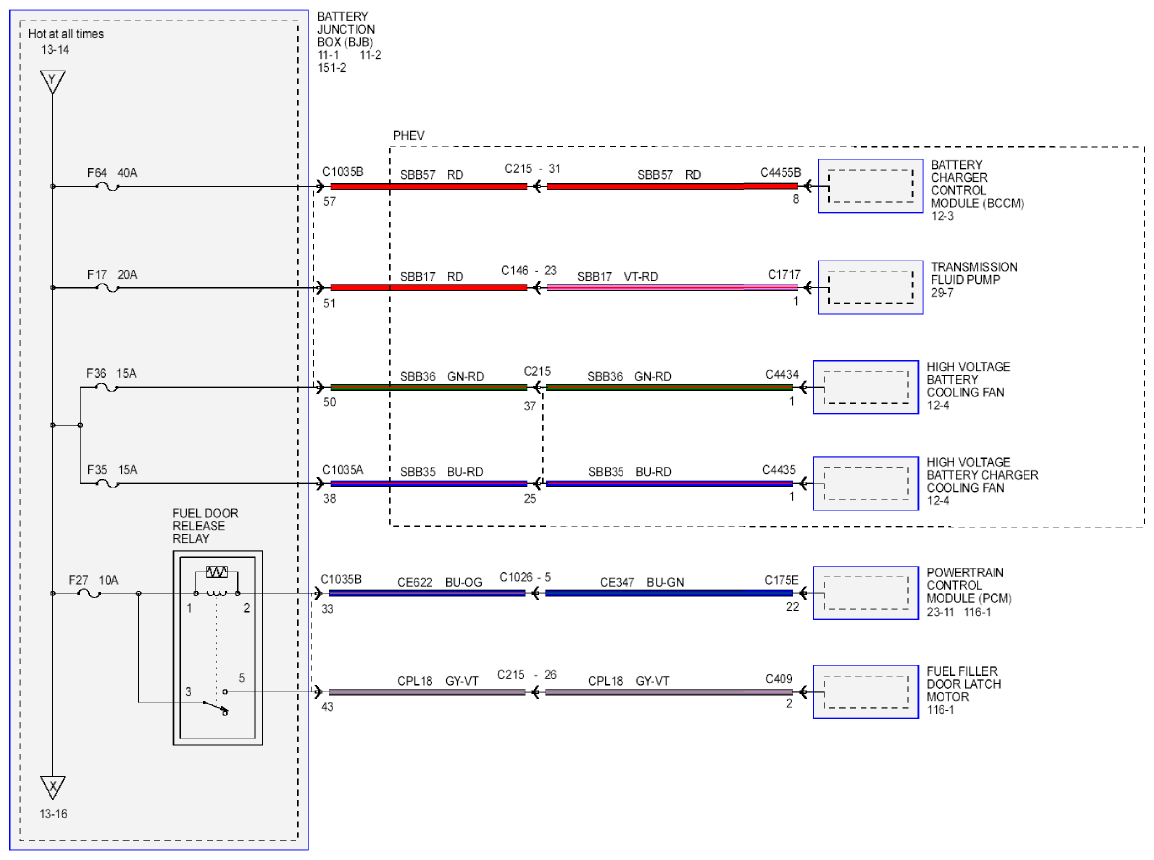

Fig 1: Power Distribution - Wiring Diagram - F17, F27, F35, F36, F64
Courtesy of FORD MOTOR CO.
