Power Distribution/SJB
>>
F17, F25, F26, F27, F29, F30
F17, F25, F26, F27, F29, F30

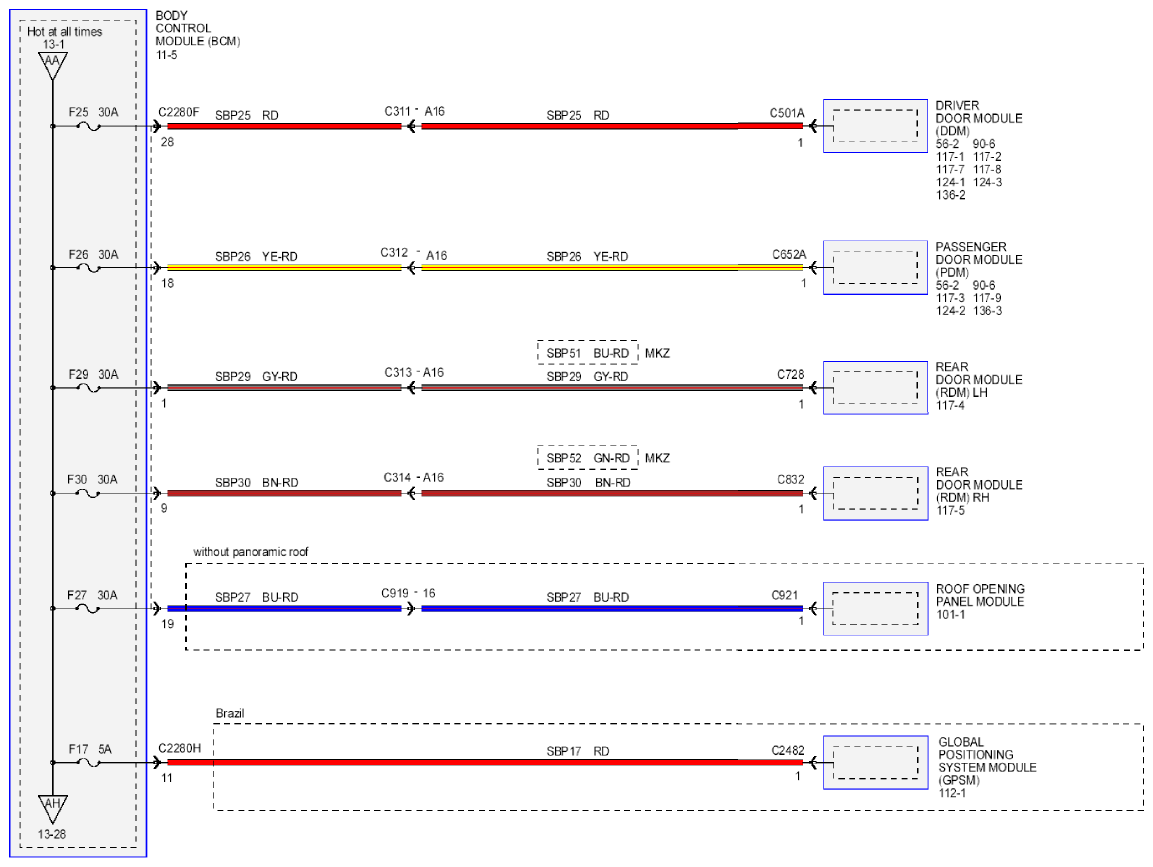

Fig 1: Power Distribution - Wiring Diagram - F17, F25, F26, F27, F29, F30
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
