Power Distribution/SJB: F13

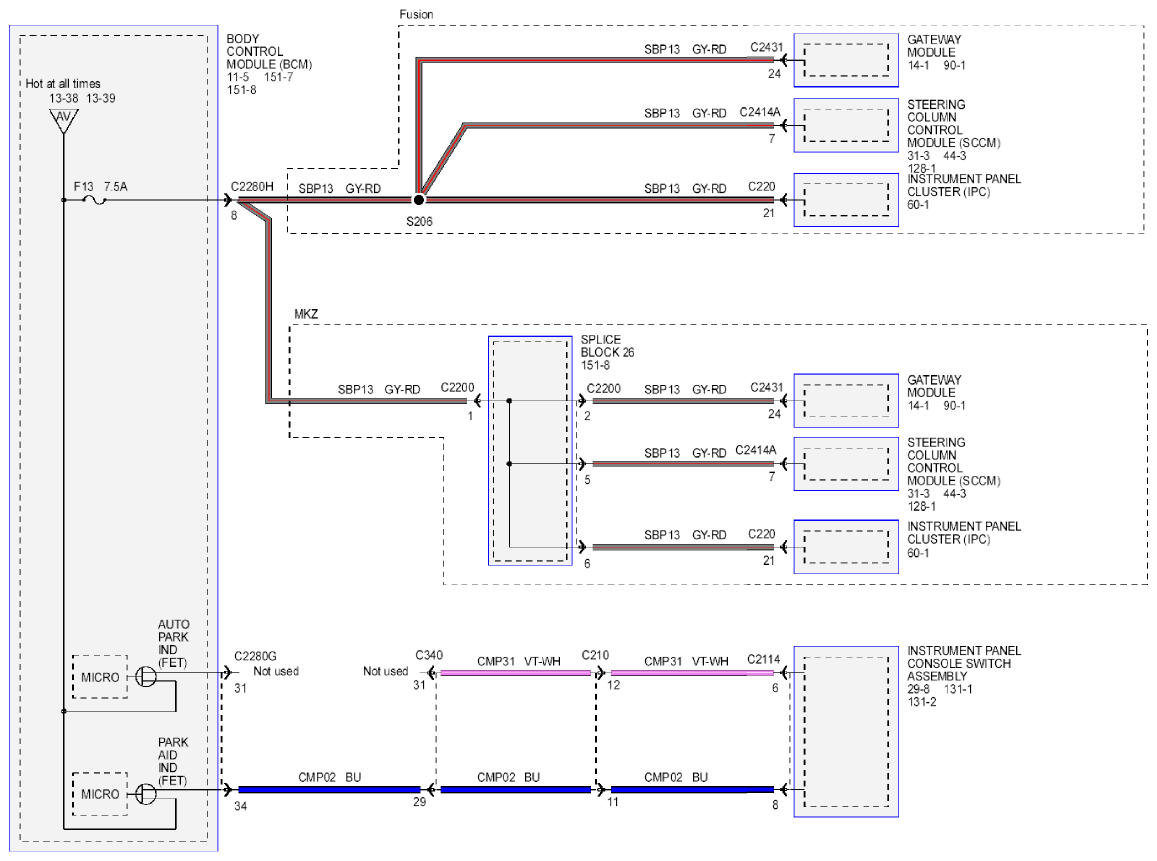

Fig 1: Power Distribution - Wiring Diagram - F13

G09269354

Courtesy of FORD MOTOR CO.
