F12, F32, F33 MKZ

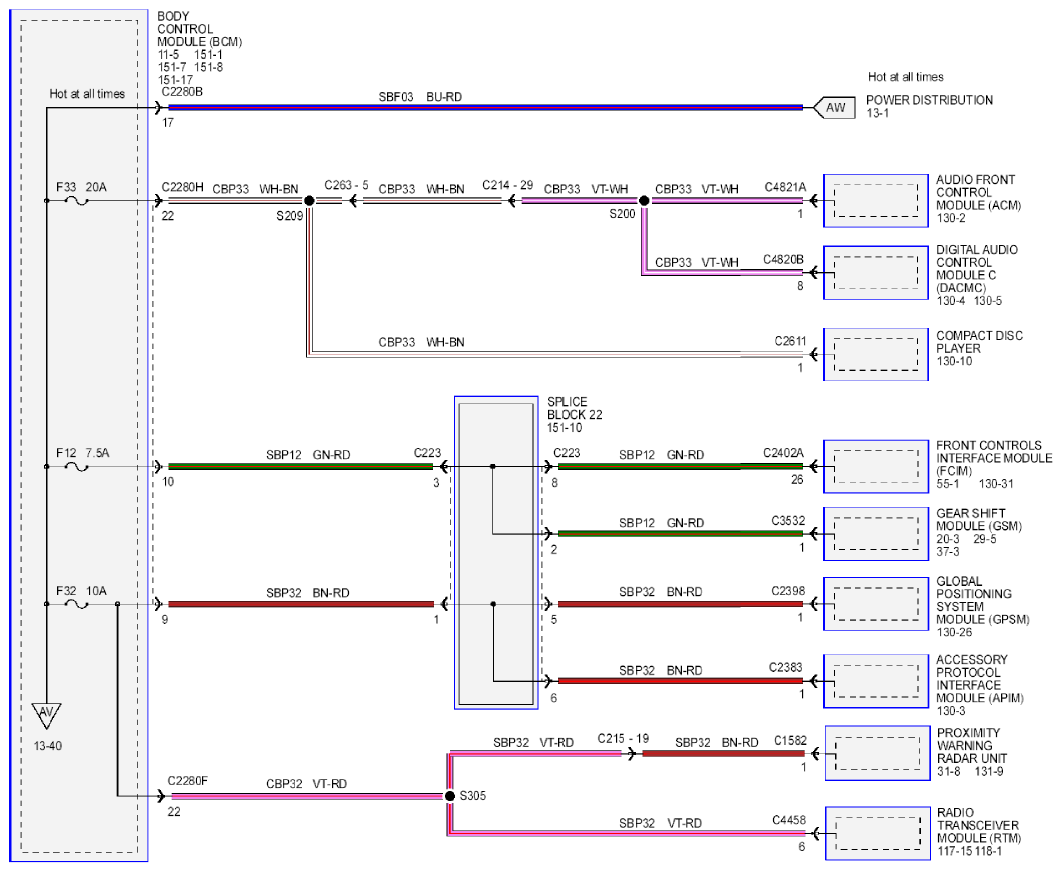

Fig 1: Power Distribution (MKZ) - Wiring Diagram - F12, F32, F33

G09269352

Courtesy of FORD MOTOR CO.
