F12, F32, F33 Fusion

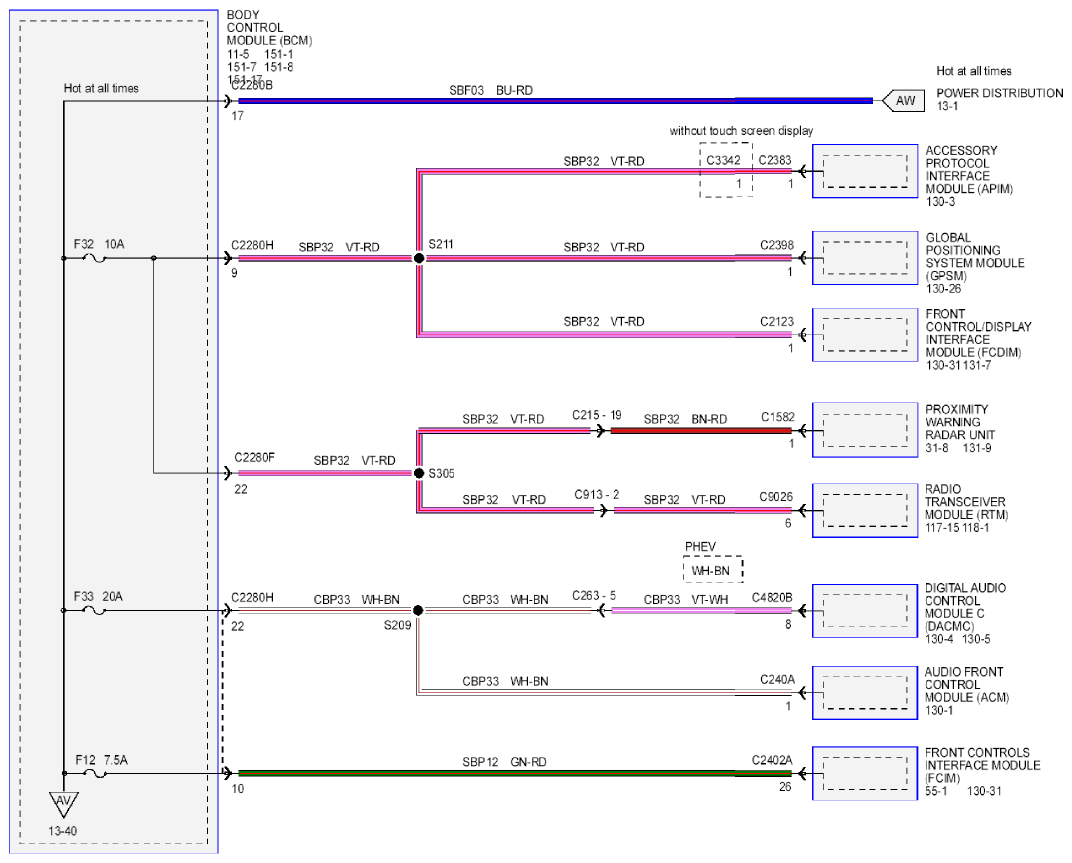

Fig 1: Power Distribution (Fusion) - Wiring Diagram - F12, F32, F33

G09269353

Courtesy of FORD MOTOR CO.
