Power Distribution/SJB
>>
F1, F3, F76, F78, F83
F1, F3, F76, F78, F83

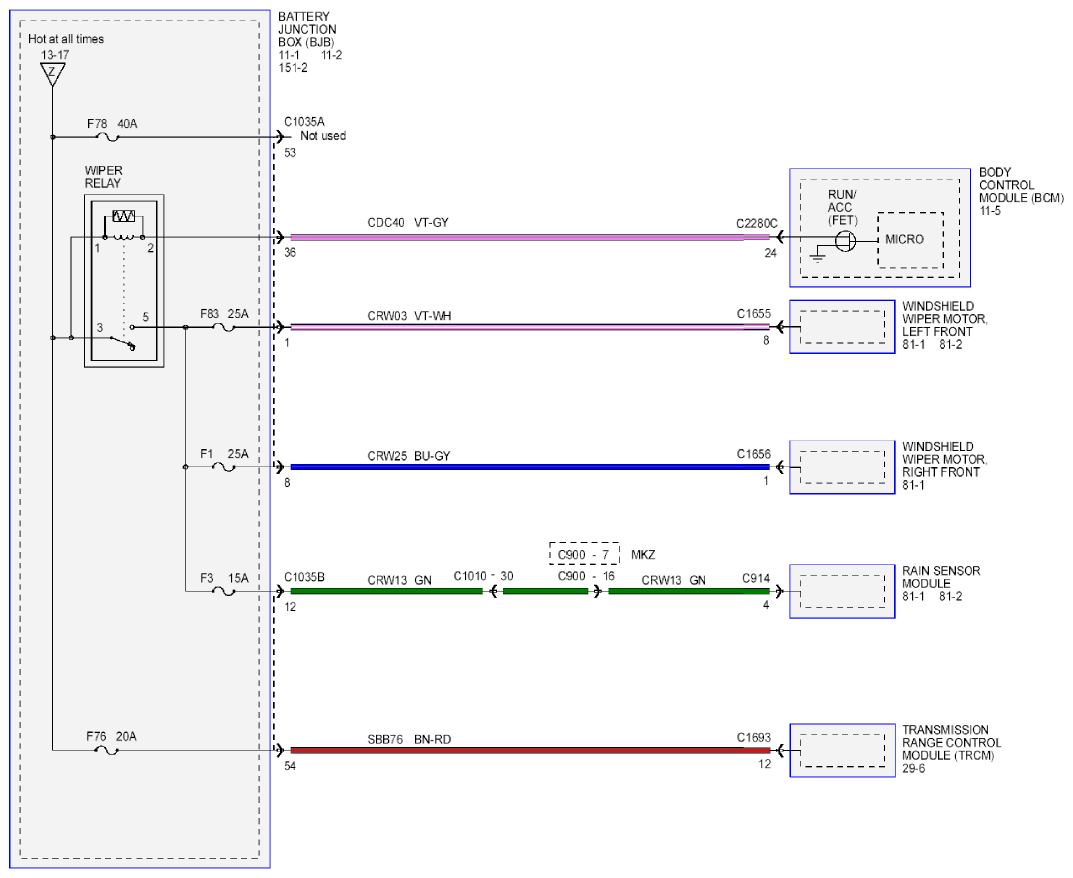

Fig 1: Power Distribution - Wiring Diagram - F1, F3, F76, F78, F83
Courtesy of FORD MOTOR CO.
