With Keyless Entry With Push Button Start

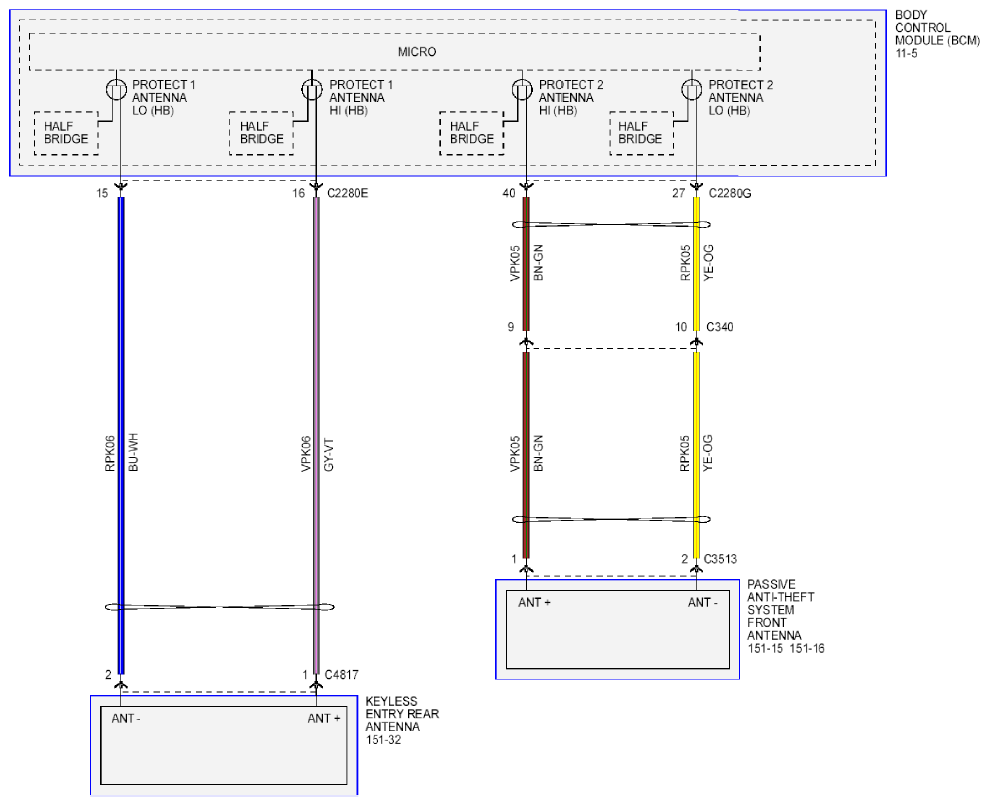

Fig 1: Passive Anti-Theft System (With Keyless Entry With Push Button Start) - Wiring Diagram

G09269524

Courtesy of FORD MOTOR CO.
