Passive Anti-Theft System: Fusion

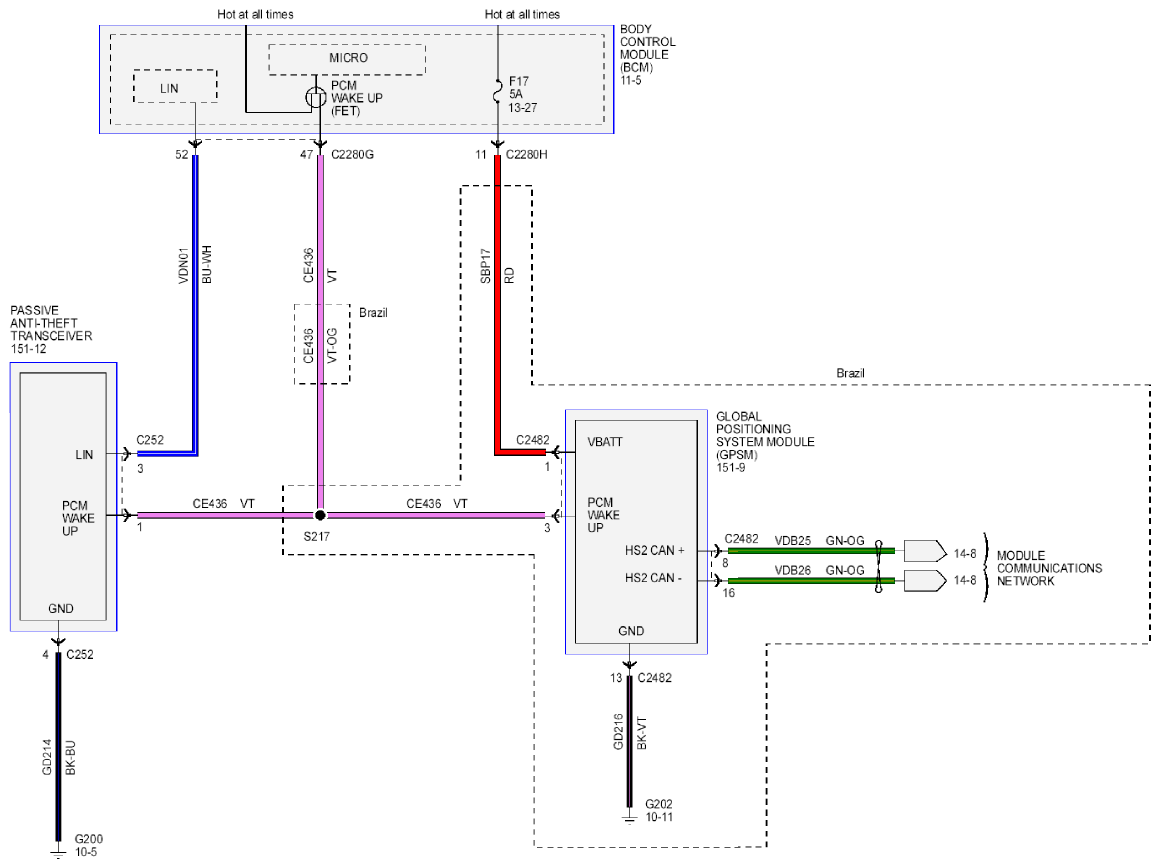

Fig 1: Passive Anti-Theft System (Fusion) - Wiring Diagram

G09269523

Courtesy of FORD MOTOR CO.
