Module Communications Network: Notes

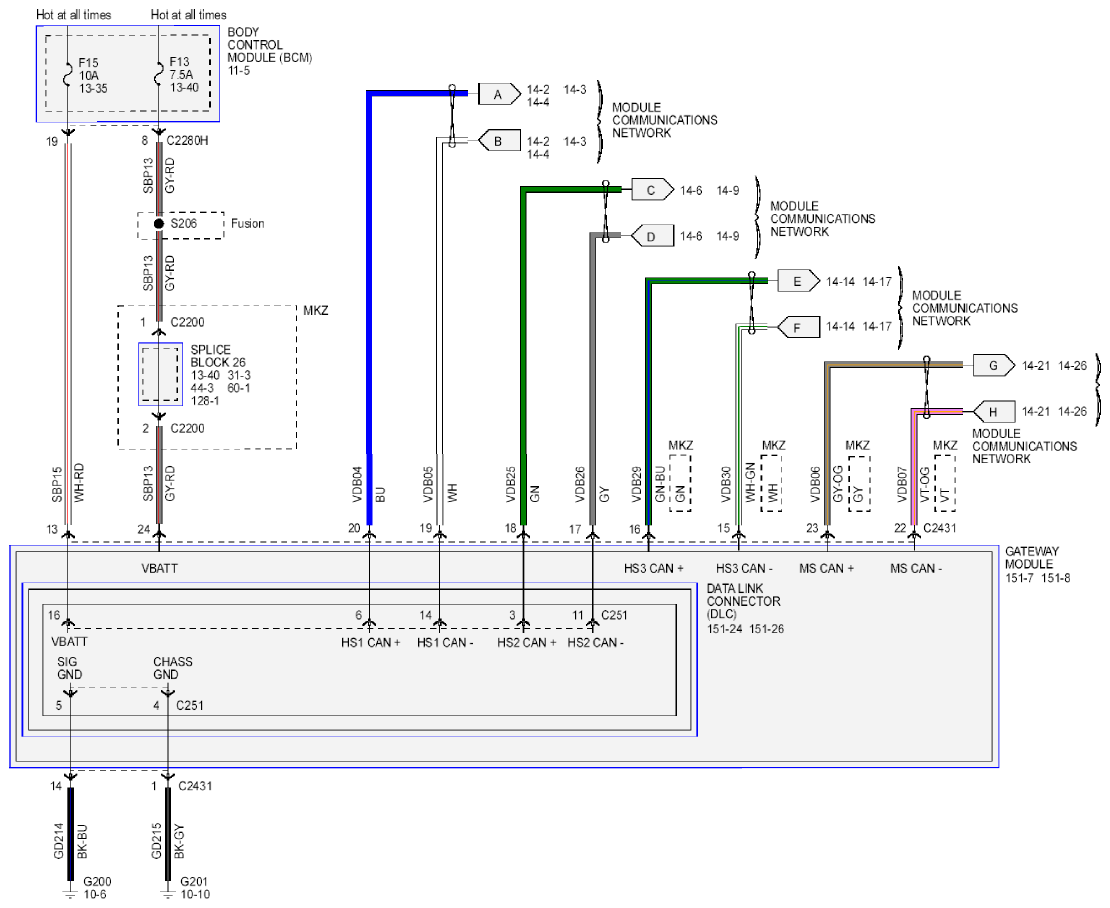

Fig 1: Module Communications Network - Wiring Diagram (1 Of 2)
G09269365Courtesy of FORD MOTOR CO.

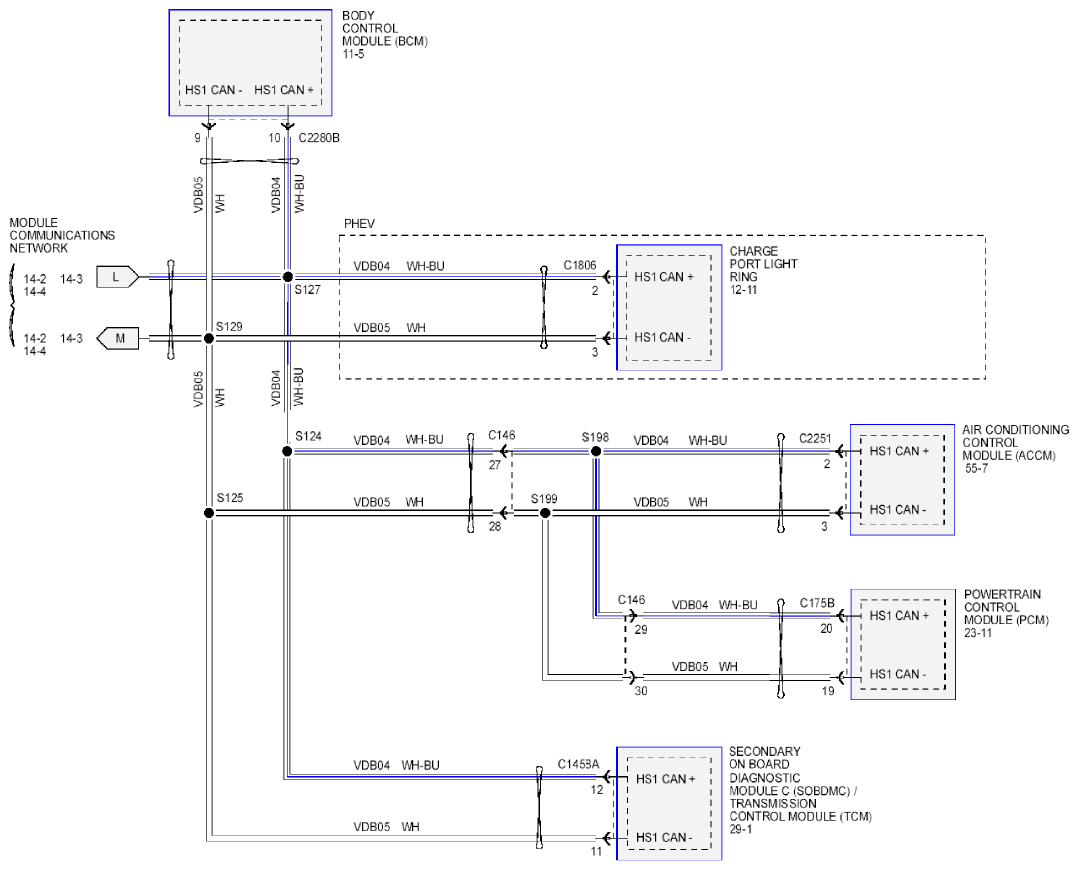

Fig 2: Module Communications Network - Wiring Diagram (2 Of 2)
G09269369Courtesy of FORD MOTOR CO.
