Ford
>>
2014
>>
Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Module Communications Network
>>
MKZ Without THX® Audio
MKZ Without THX® Audio

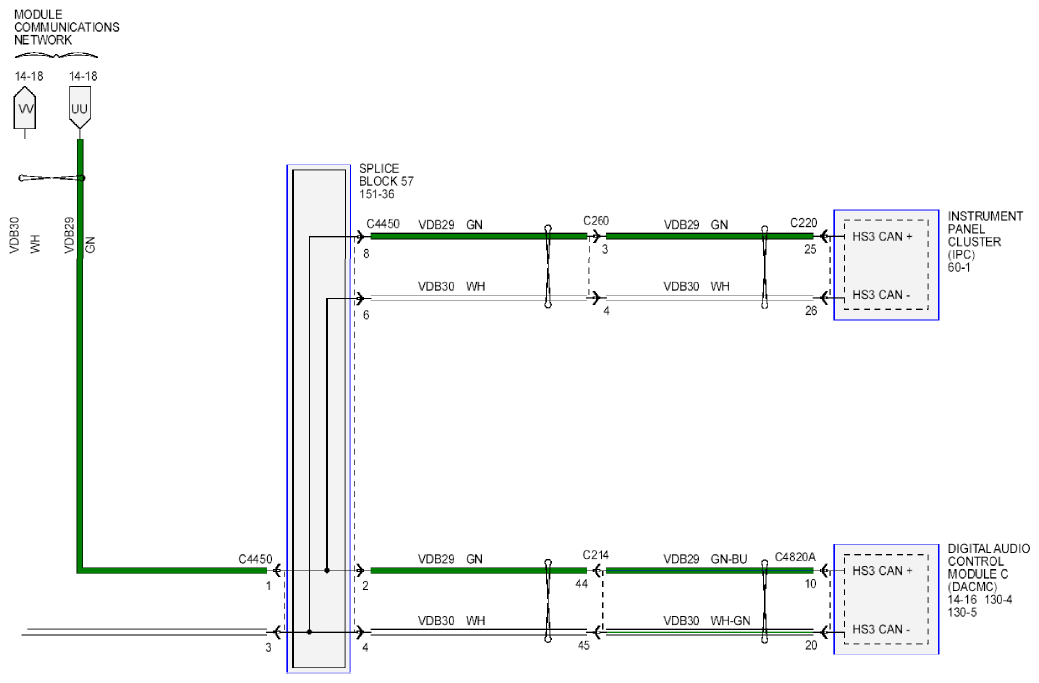

Fig 1: Module Communications Network - Wiring Diagram - MKZ Without THX® Audio
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
