Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Module Communications Network
>>
Fusion - With Blind Spot Information System (BLIS)®
Fusion - With Blind Spot Information System (BLIS)®

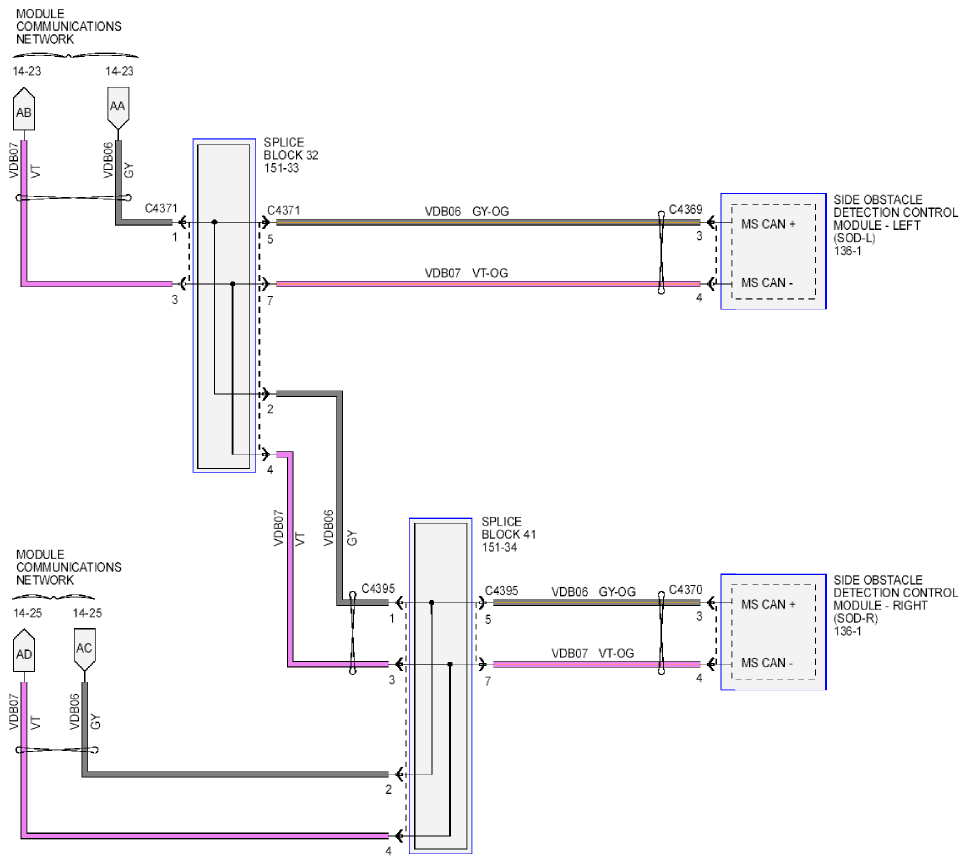

Fig 1: Module Communications Network - Wiring Diagram - Fusion With Blind Spot Information System (BLIS)®
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
