Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Module Communications Network
>>
Fusion - Memory
Fusion - Memory

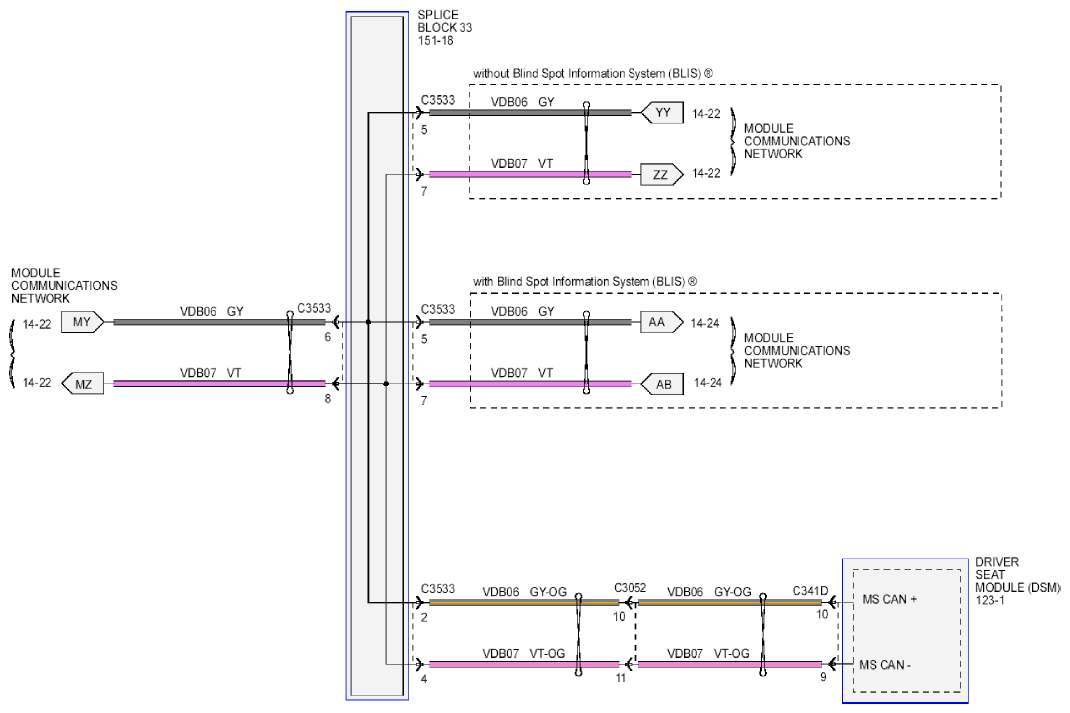

Fig 1: Module Communications Network - Wiring Diagram - Fusion Memory
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
