Memory Seats: Notes

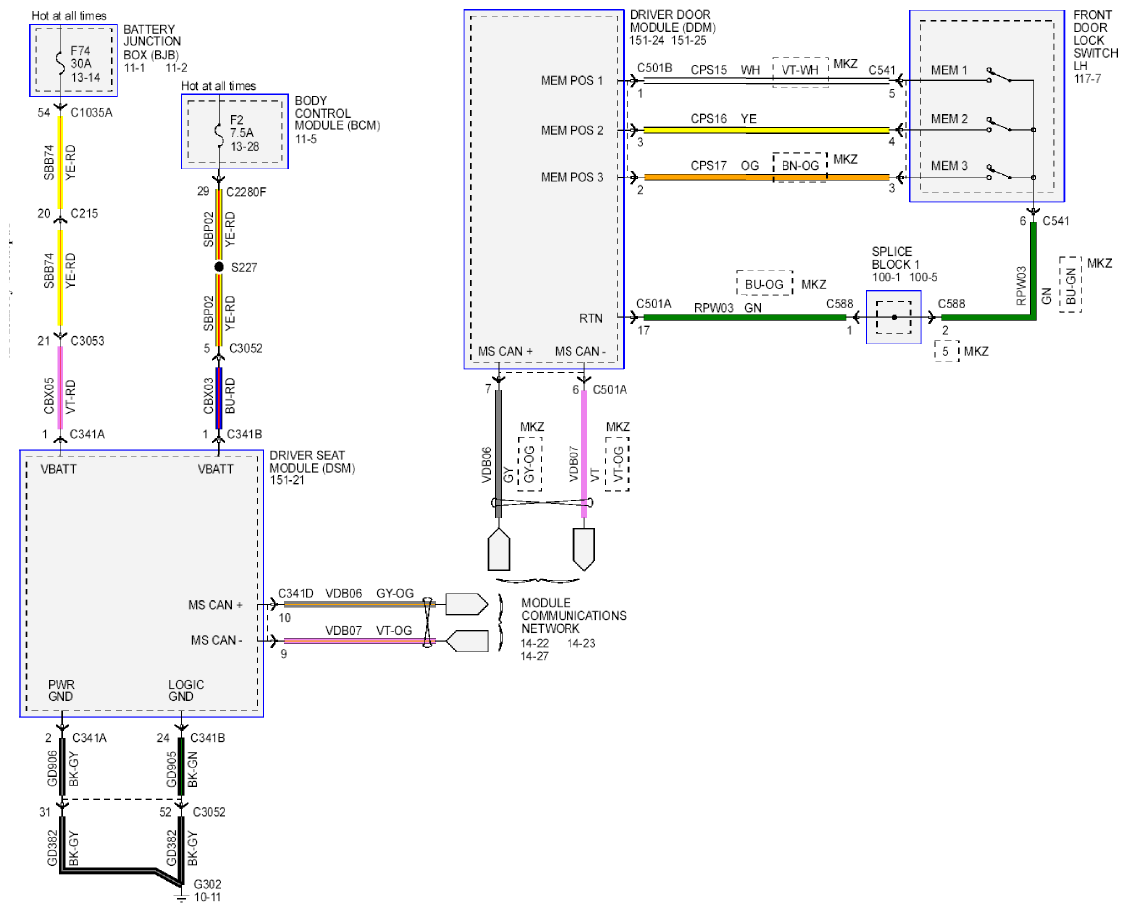

Fig 1: Memory Seats - Wiring Diagram (1 Of 3)
G09269561Courtesy of FORD MOTOR CO.

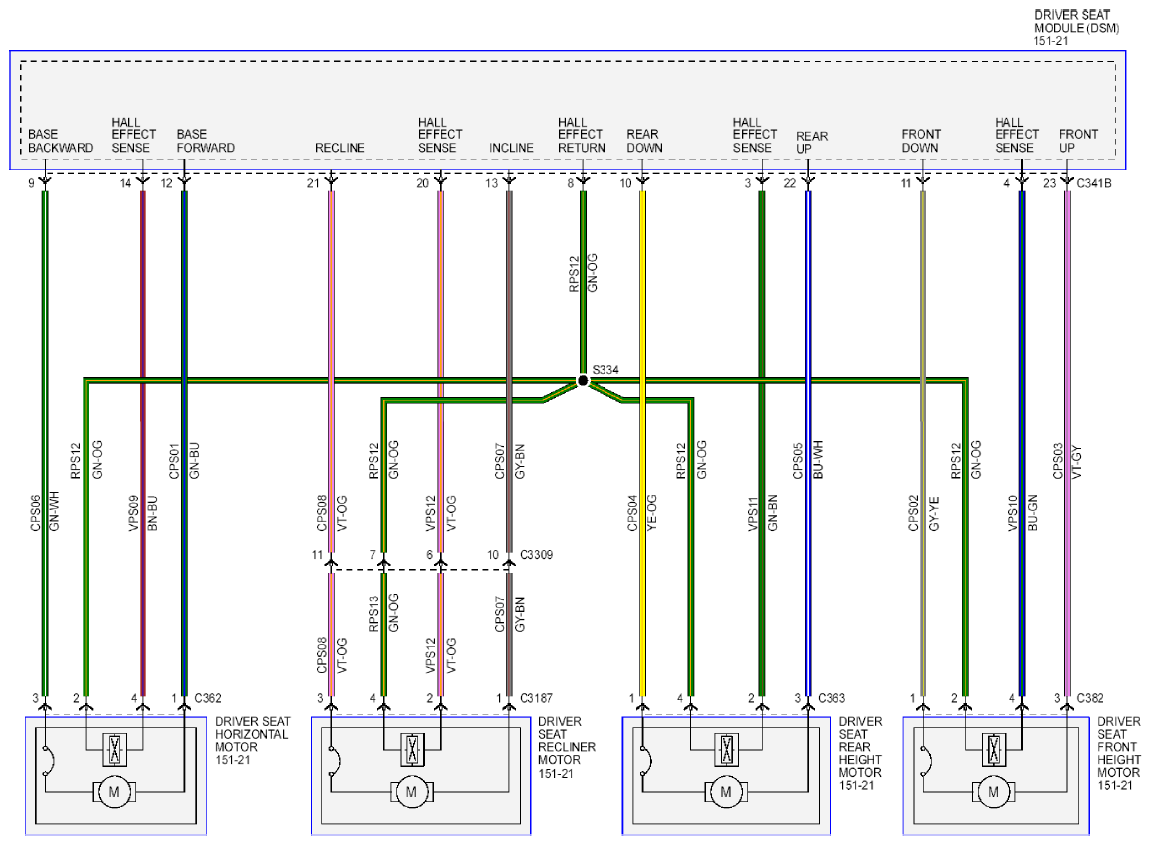

Fig 2: Memory Seats - Wiring Diagram (2 Of 3)
G09269563Courtesy of FORD MOTOR CO.

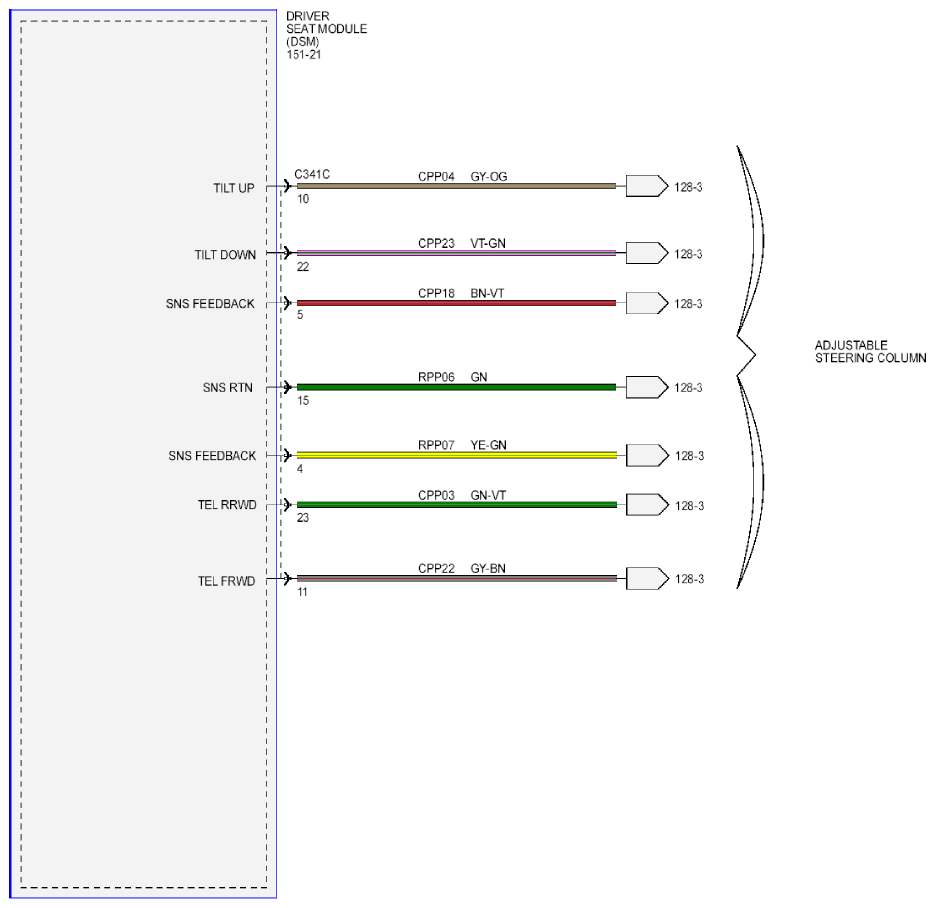

Fig 3: Memory Seats - Wiring Diagram (3 Of 3)
G09269567Courtesy of FORD MOTOR CO.
