10-Way Power Seat With Multi Contour - Driver

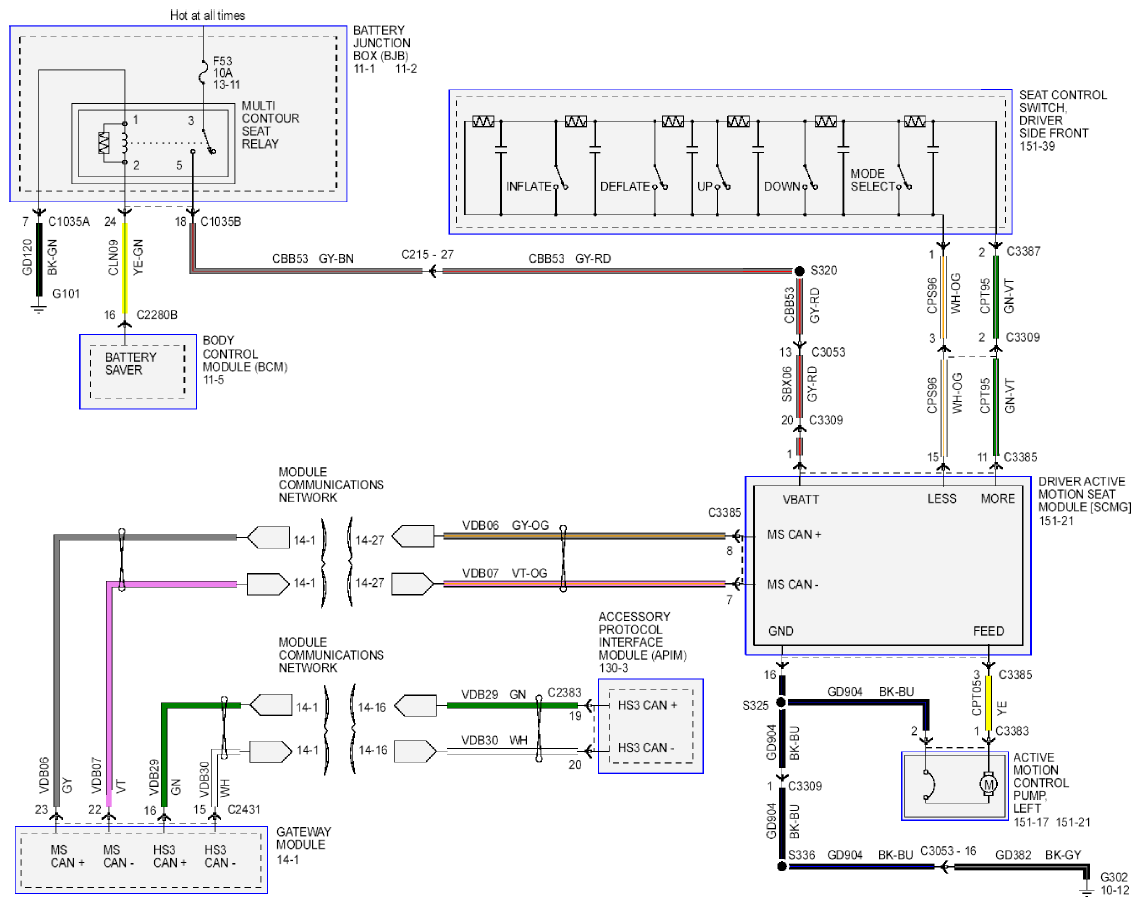

Fig 1: Memory Seats 10-Way Power Seat With Multi Counter - Driver - Wiring Diagram

G09269564

Courtesy of FORD MOTOR CO.
