Interior Lamps: Notes

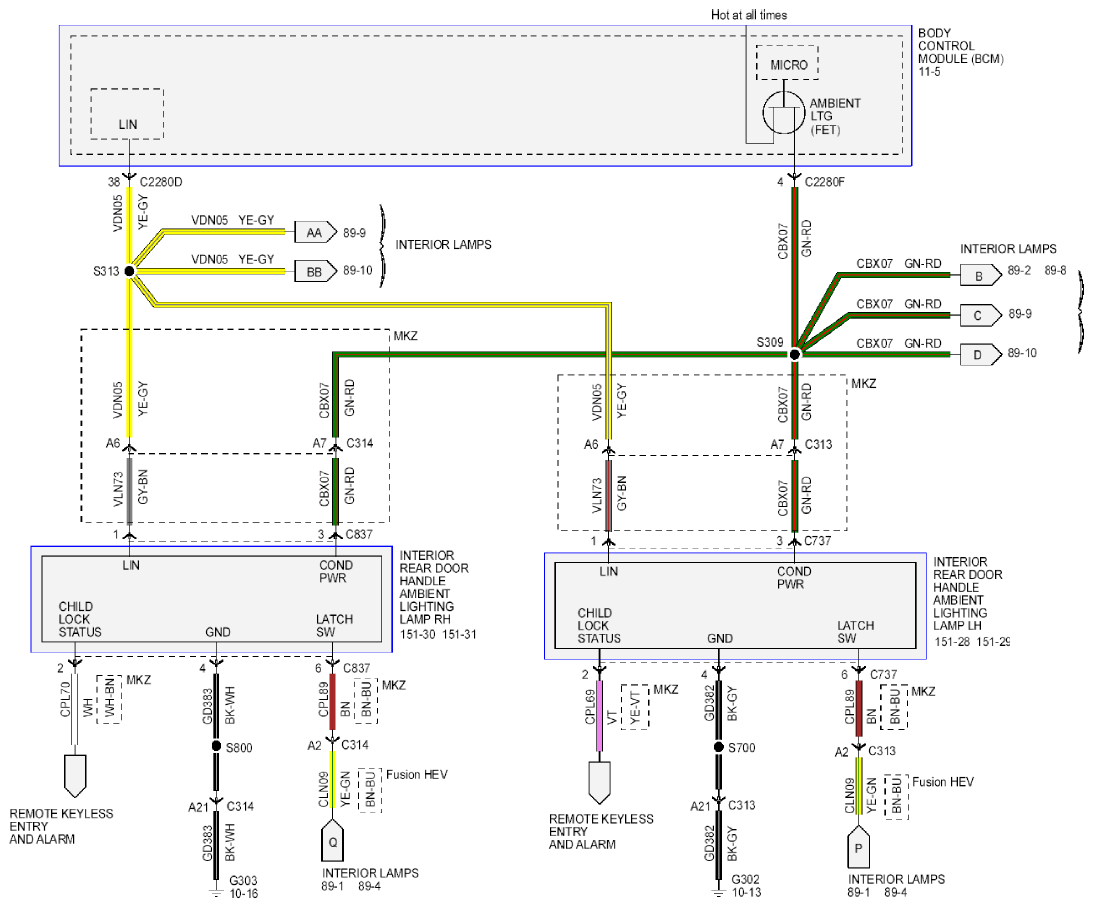

Fig 1: Interior Lamps - Wiring Diagram (1 Of 4)
G09269490Courtesy of FORD MOTOR CO.

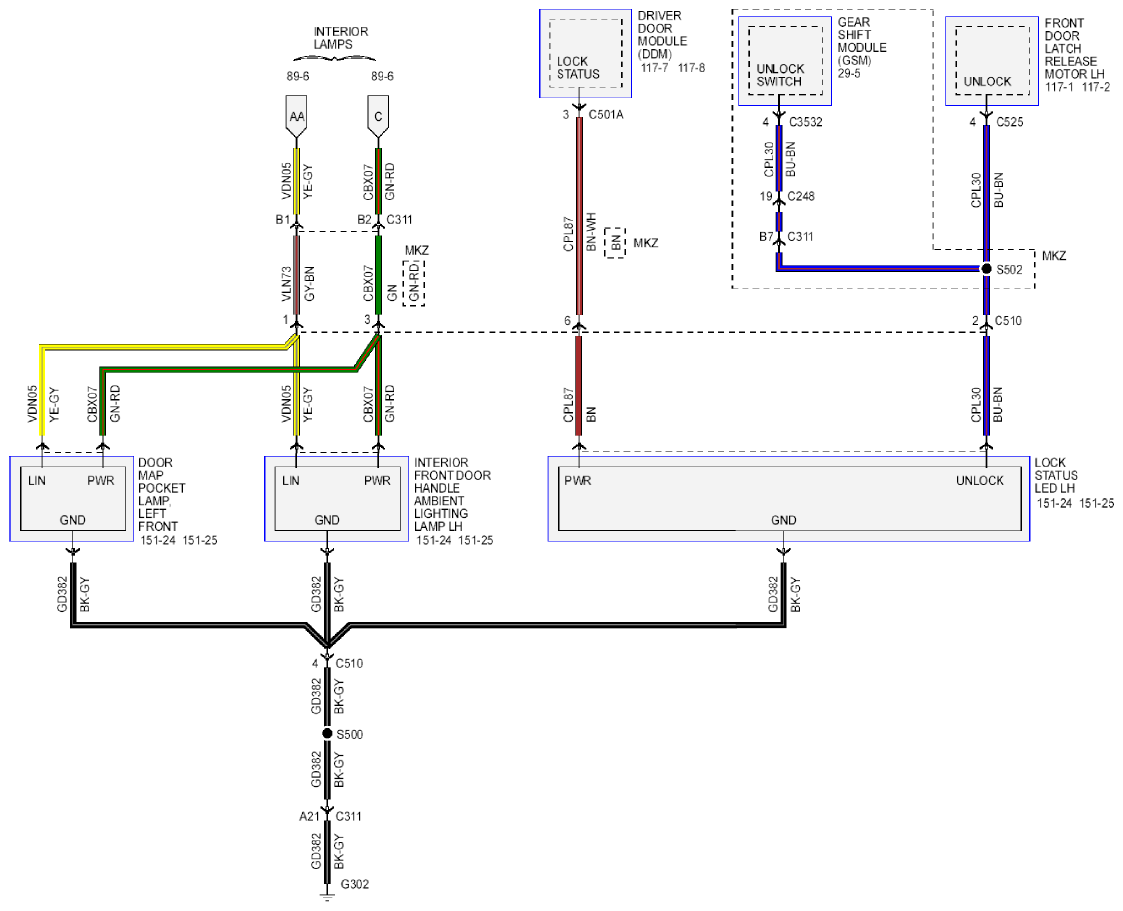

Fig 2: Interior Lamps - Wiring Diagram (2 Of 4)
G09269493Courtesy of FORD MOTOR CO.

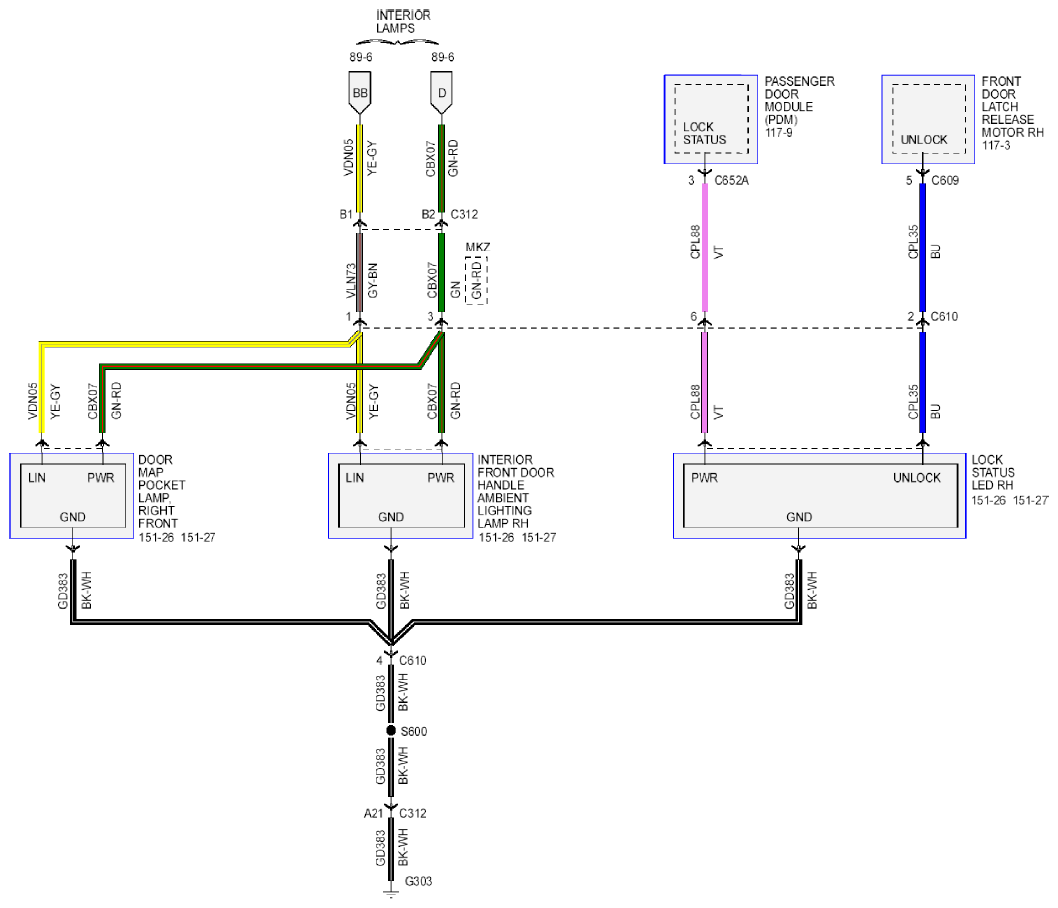

Fig 3: Interior Lamps - Wiring Diagram (3 Of 4)
G09269494Courtesy of FORD MOTOR CO.

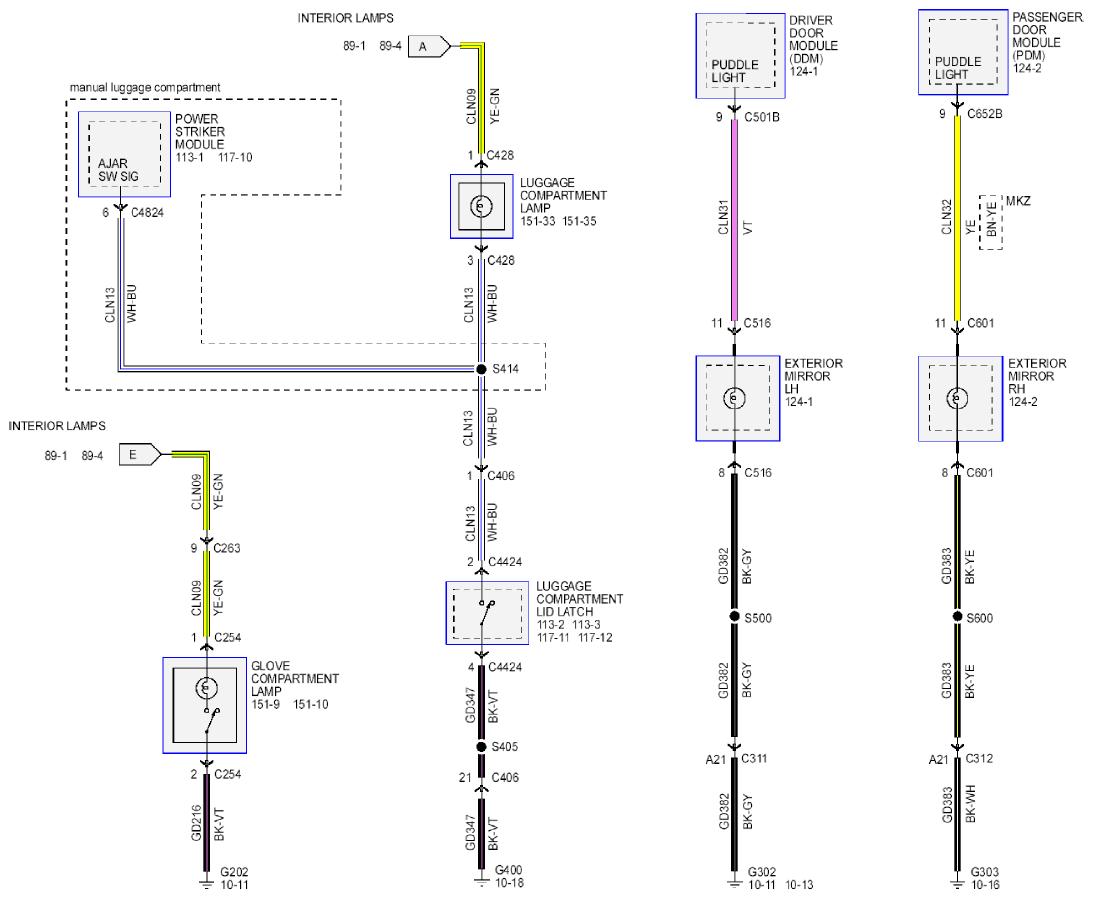

Fig 4: Interior Lamps - Wiring Diagram (4 Of 4)
G09269495Courtesy of FORD MOTOR CO.
