Horn/Cigar Lighter: Notes

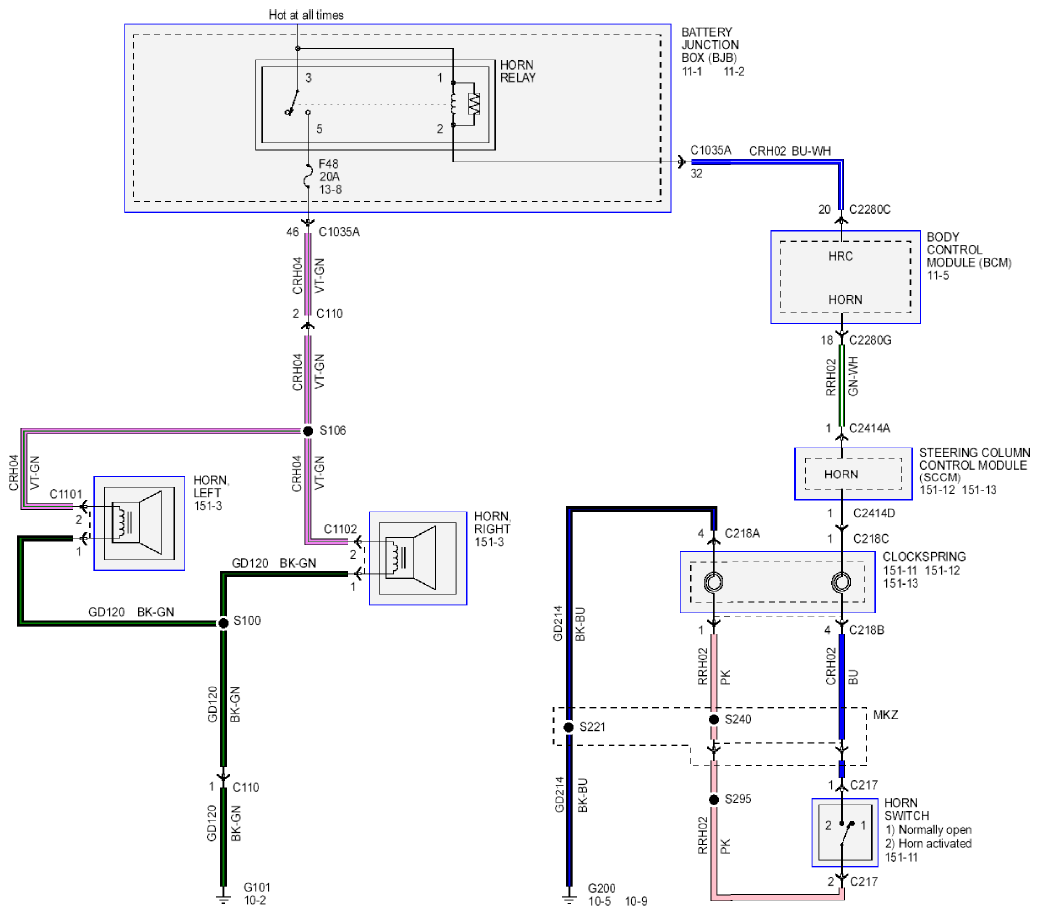

Fig 1: Horn Cigar Lighter - Wiring Diagram (1 Of 3)
G09269442Courtesy of FORD MOTOR CO.

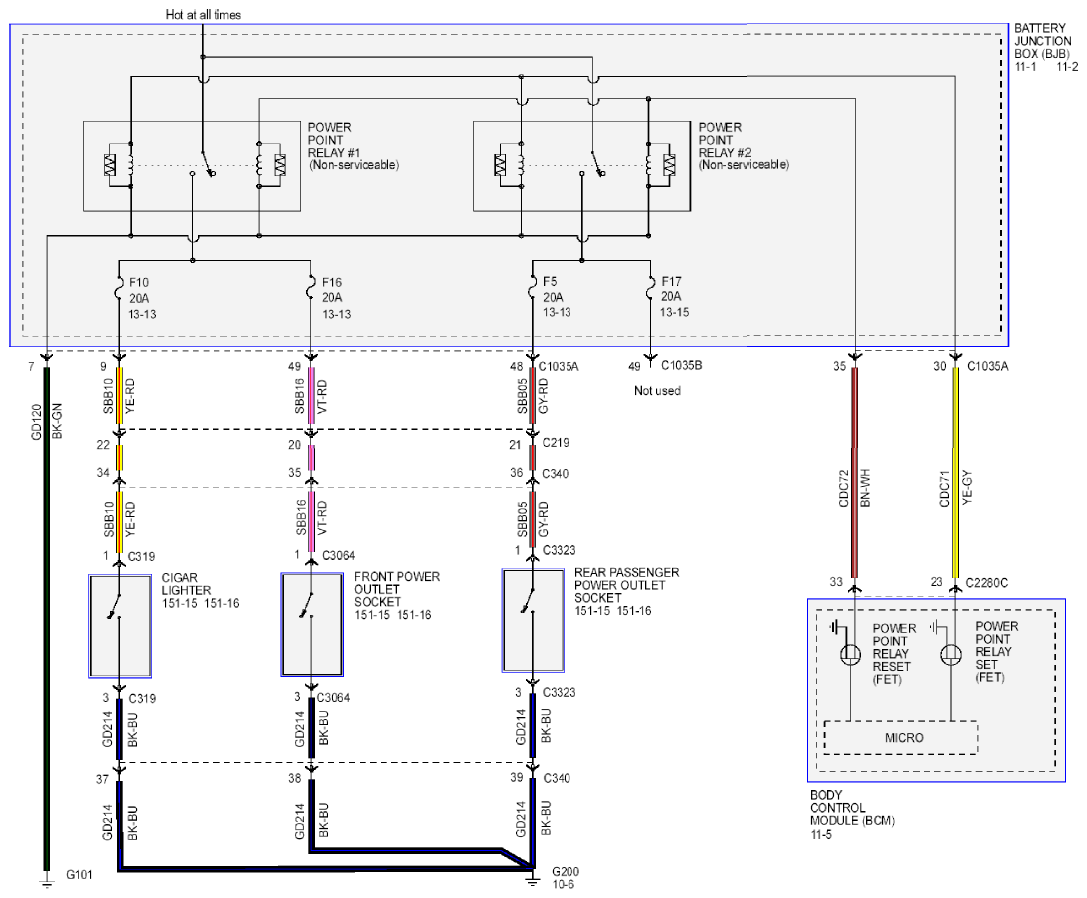

Fig 2: Horn Cigar Lighter - Wiring Diagram (2 Of 3)
G09269443Courtesy of FORD MOTOR CO.

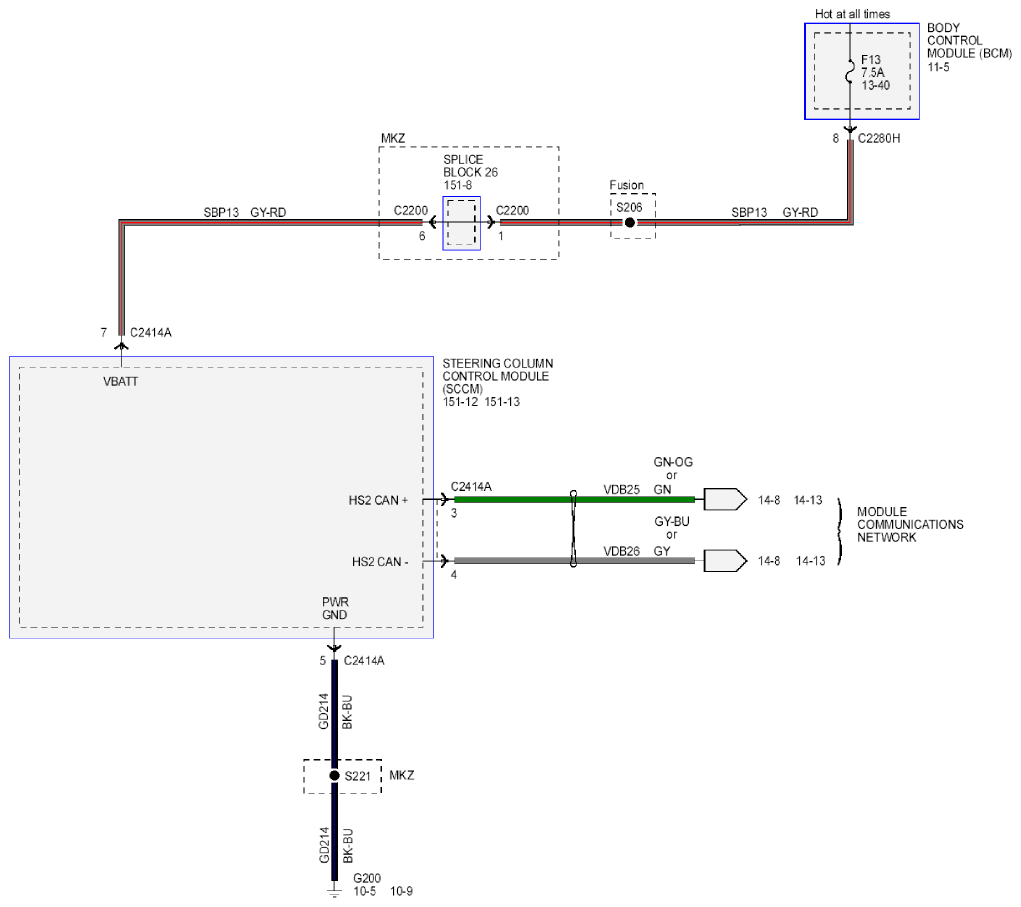

Fig 3: Horn Cigar Lighter - Wiring Diagram (3 Of 3)
G09269444Courtesy of FORD MOTOR CO.
