OEM Wiring Diagrams -- (Hybrid): Headlamps/AUTOLAMPS: Notes

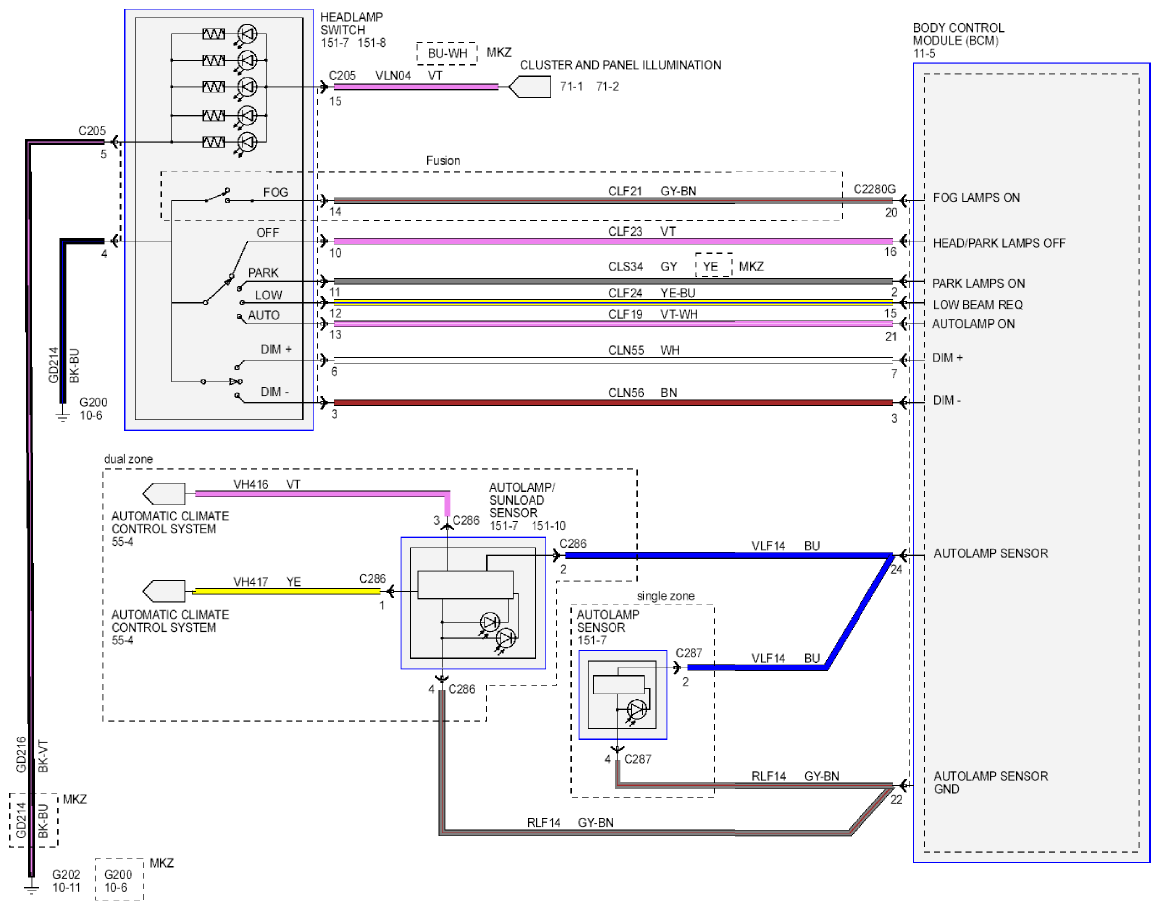

Fig 1: Headlamps Autolamps - Wiring Diagram

G09269479

Courtesy of FORD MOTOR CO.
