OEM Wiring Diagrams -- (Hybrid): Headlamps/AUTOLAMPS: Halogen

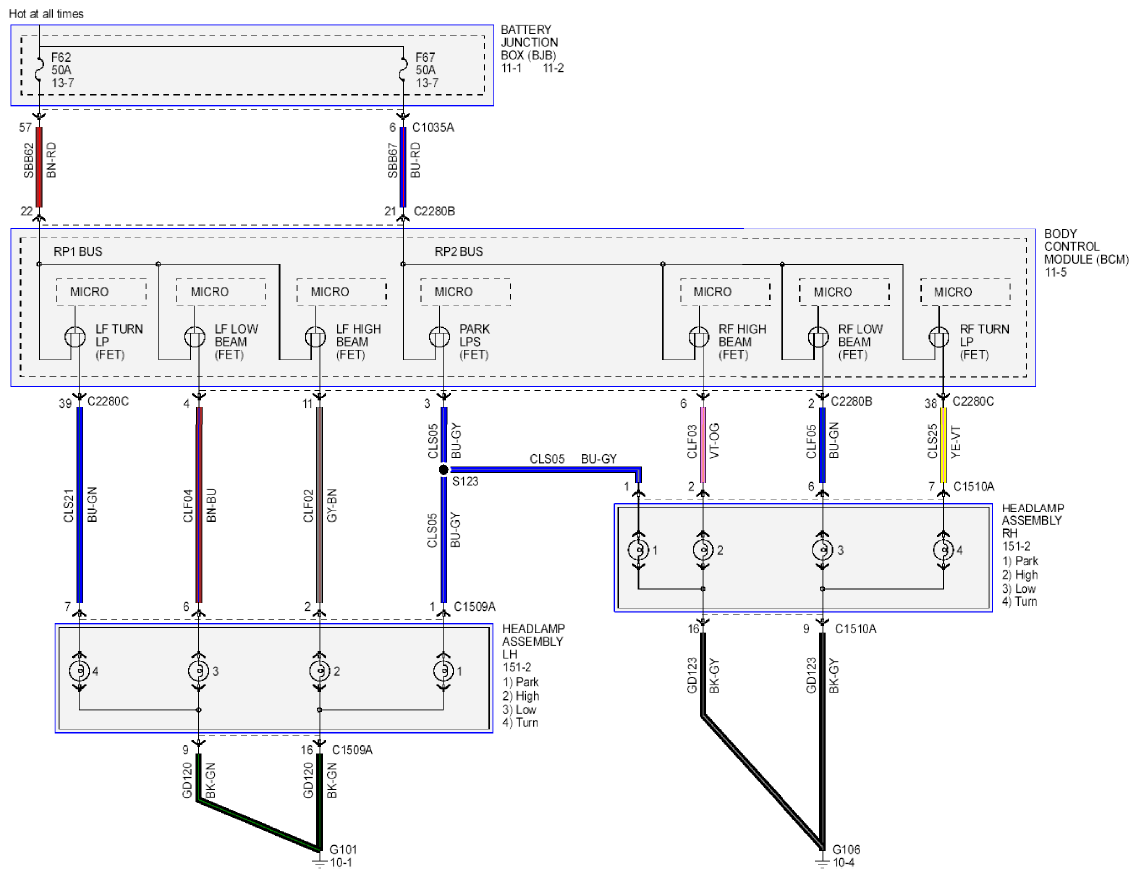

Fig 1: Headlamps Autolamps - Wiring Diagram (Halogen)

G09269480

Courtesy of FORD MOTOR CO.
