Cruise Control
>>
With Adaptive Cruise
With Adaptive Cruise

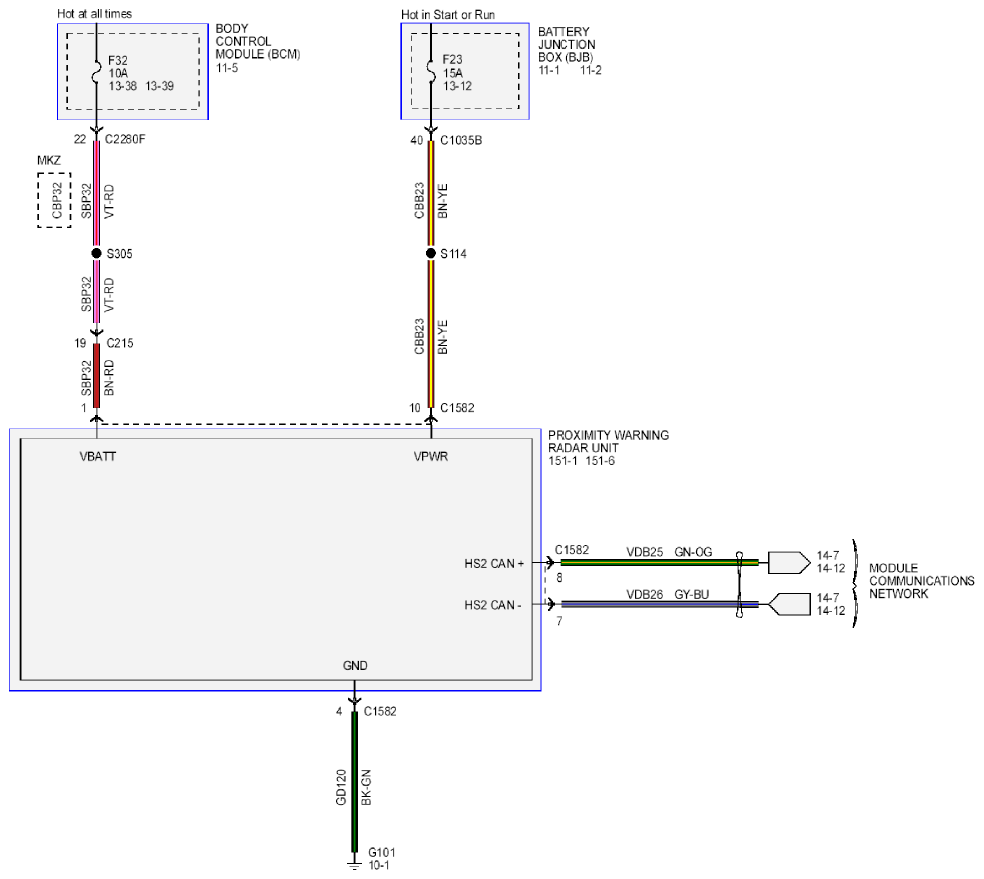

Fig 1: Cruise Control - Wiring Diagram (With Adaptive Cruise)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
