Cruise Control: Notes

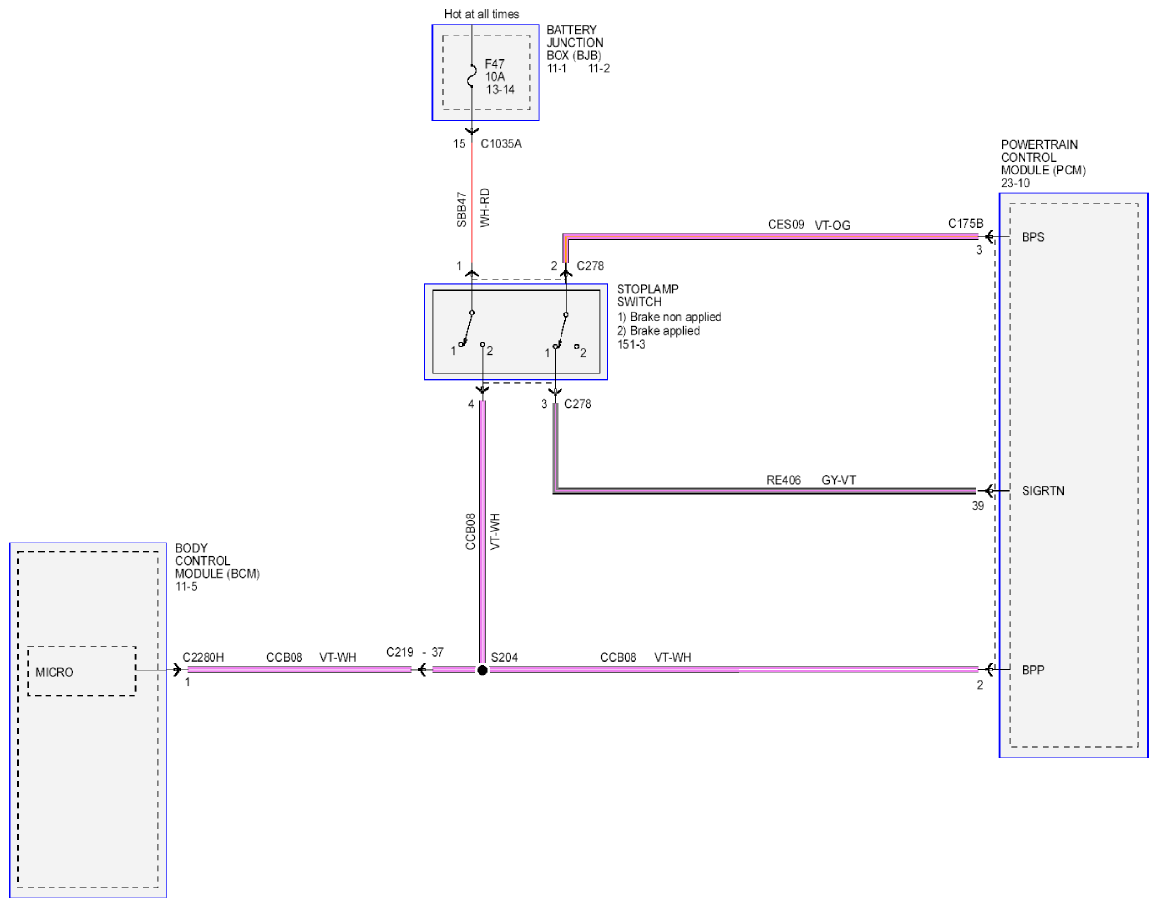

Fig 1: Cruise Control - Wiring Diagram (1 Of 3)
G09269417Courtesy of FORD MOTOR CO.

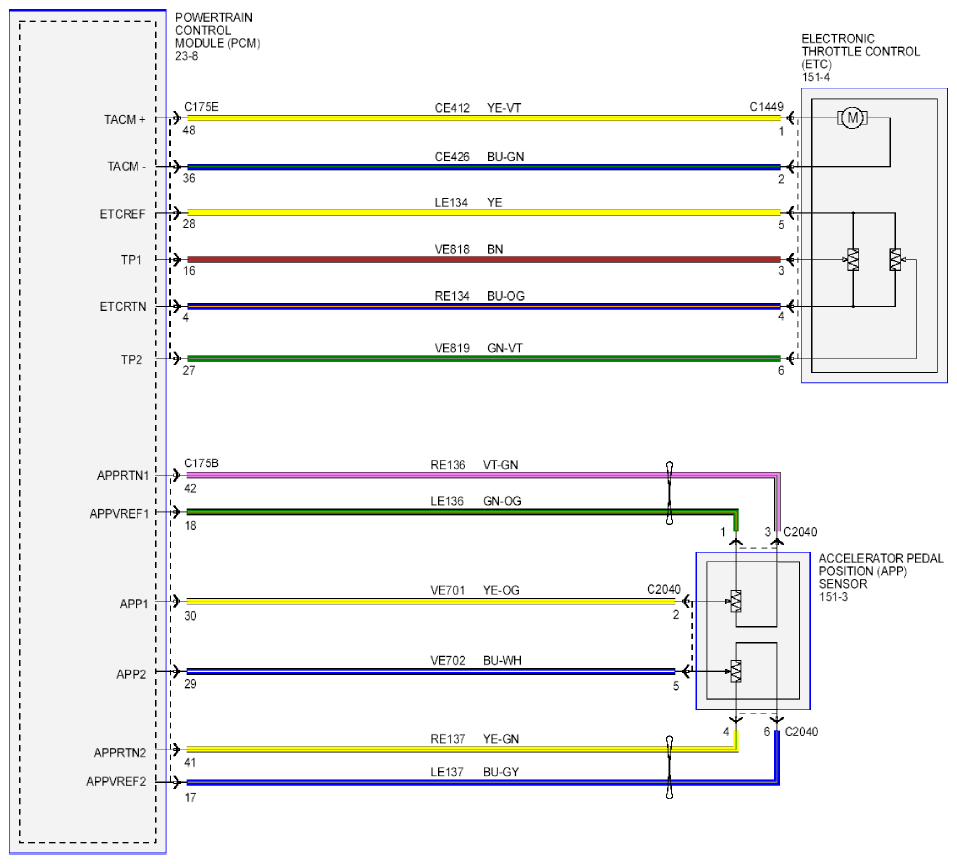

Fig 2: Cruise Control - Wiring Diagram (2 Of 3)
G09269418Courtesy of FORD MOTOR CO.

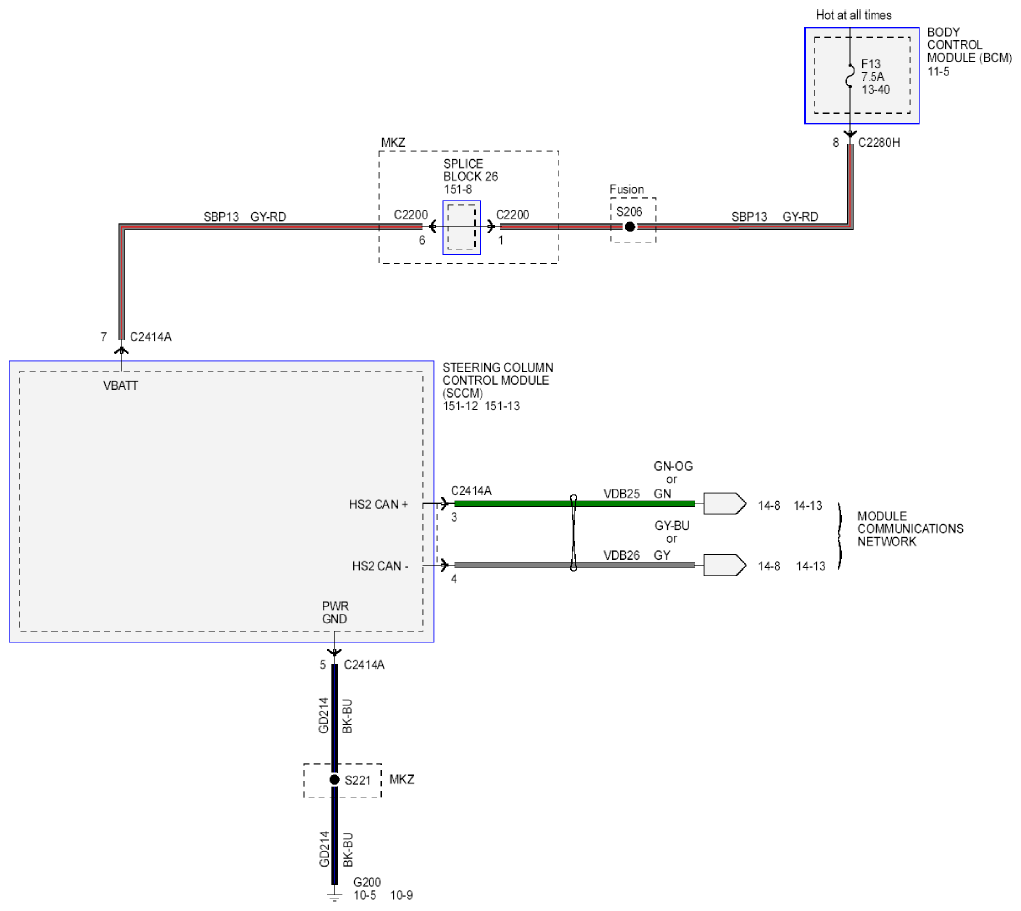

Fig 3: Cruise Control - Wiring Diagram (3 Of 3)
G09269419Courtesy of FORD MOTOR CO.
