Ford
>>
2014
>>
Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Cruise Control
>>
MKZ Adaptive Cruise
MKZ Adaptive Cruise

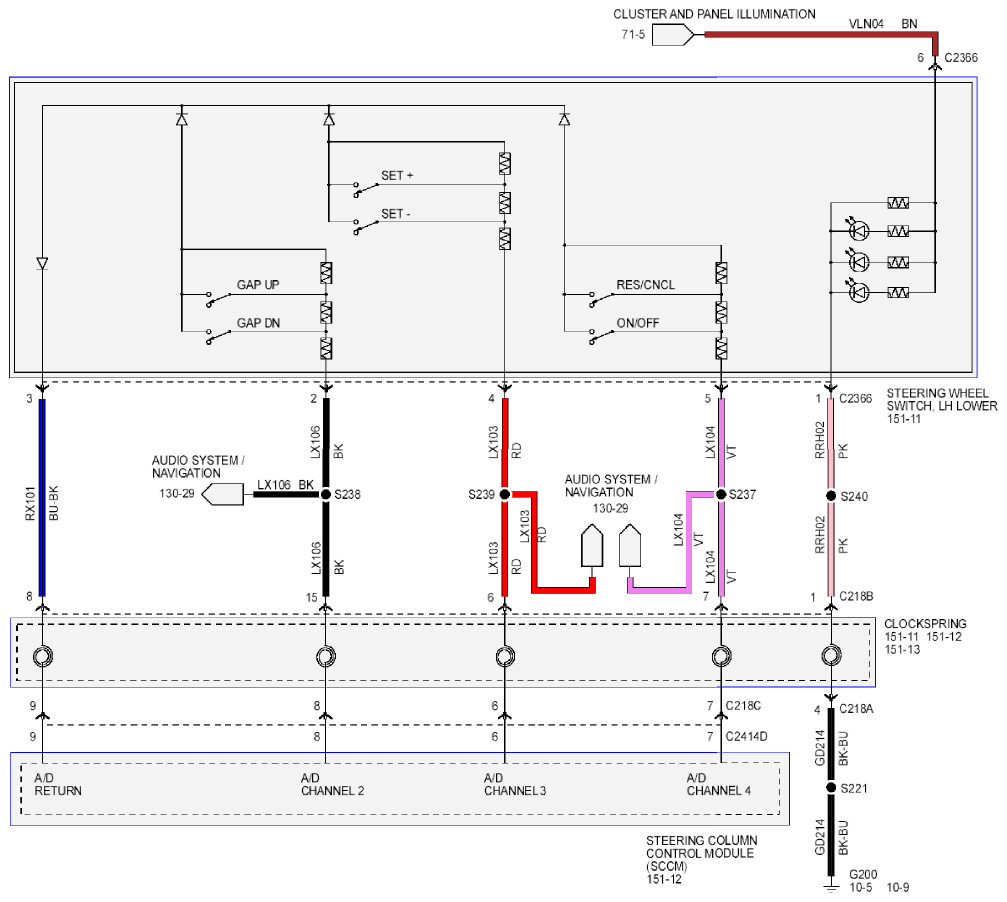

Fig 1: Cruise Control - Wiring Diagram (MKZ Adaptive Cruise)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
