Fusion Without Adaptive Cruise

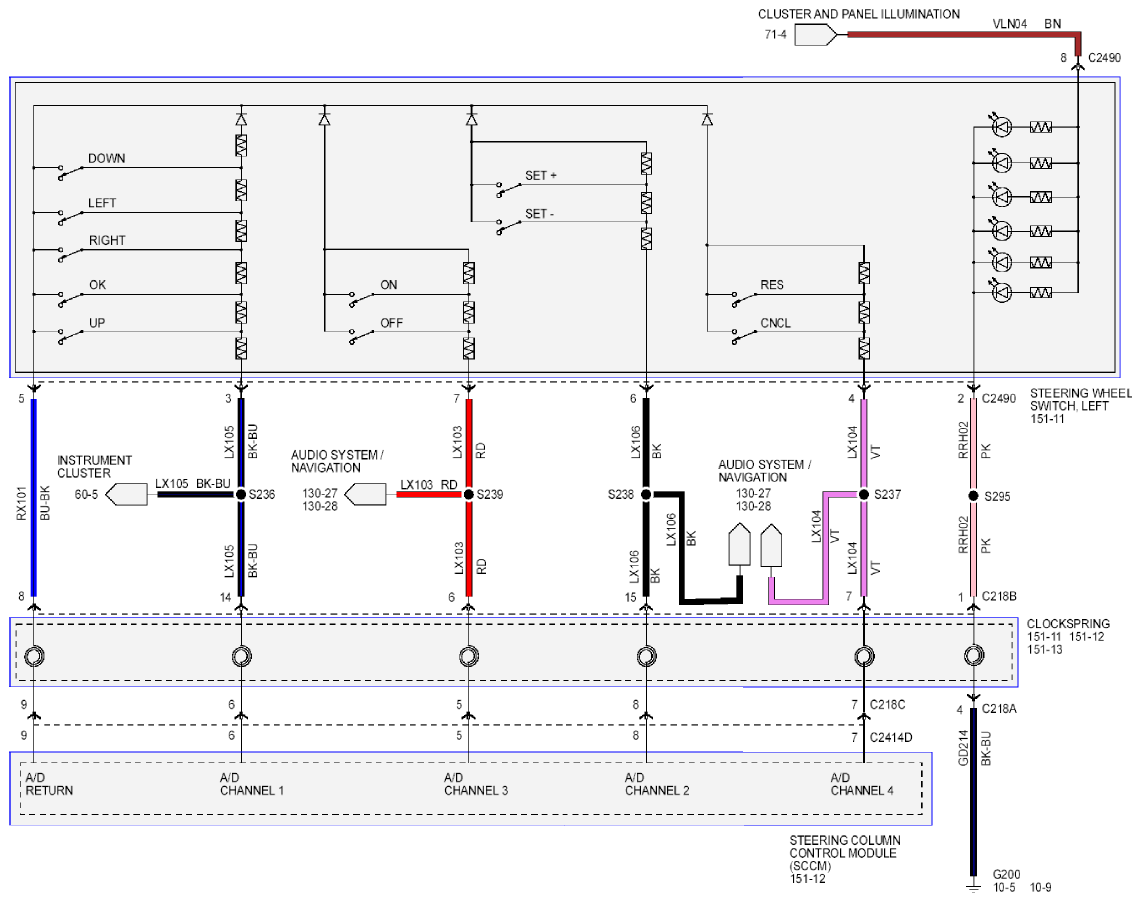

Fig 1: Cruise Control - Wiring Diagram (Fusion Without Adaptive Cruise)

G09269421

Courtesy of FORD MOTOR CO.
