Fusion Adaptive Cruise

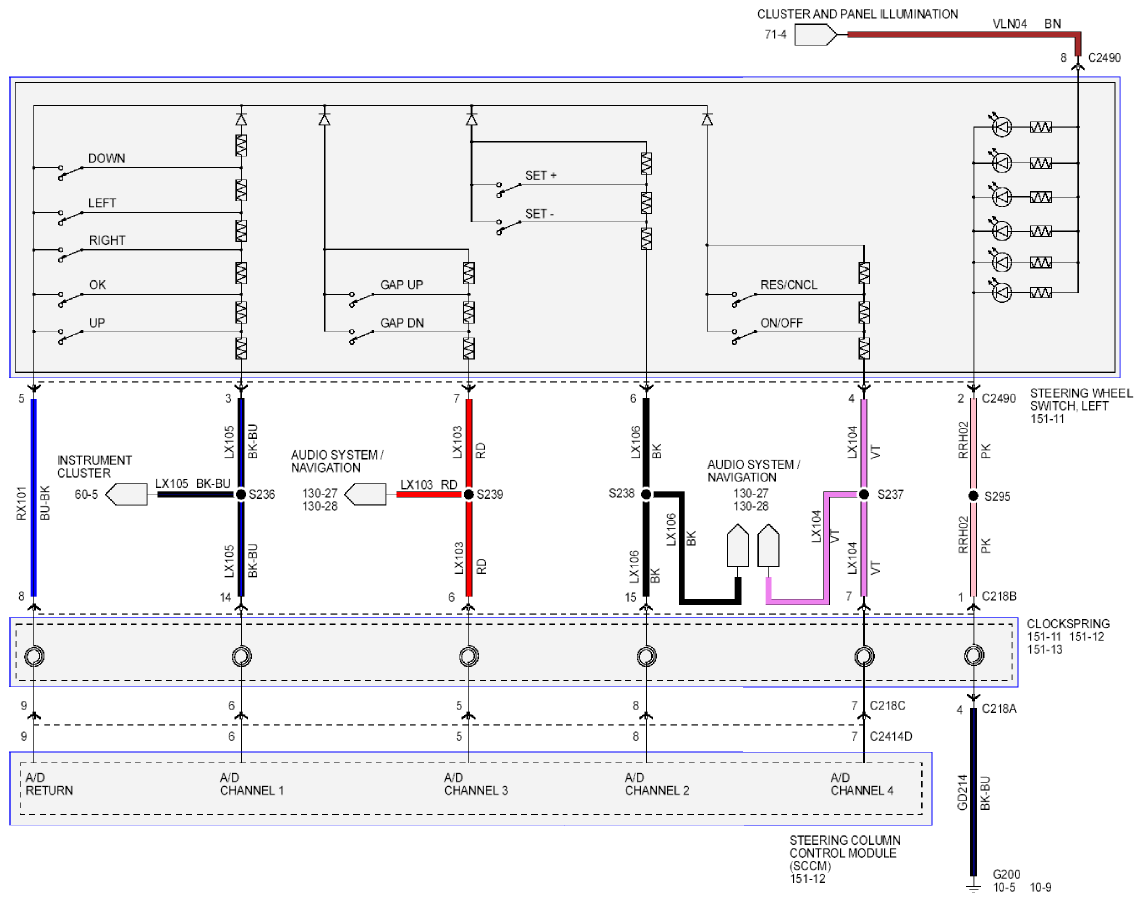

Fig 1: Cruise Control - Wiring Diagram (Fusion Adaptive Cruise)

G09269420

Courtesy of FORD MOTOR CO.
