Rear Heated Seats

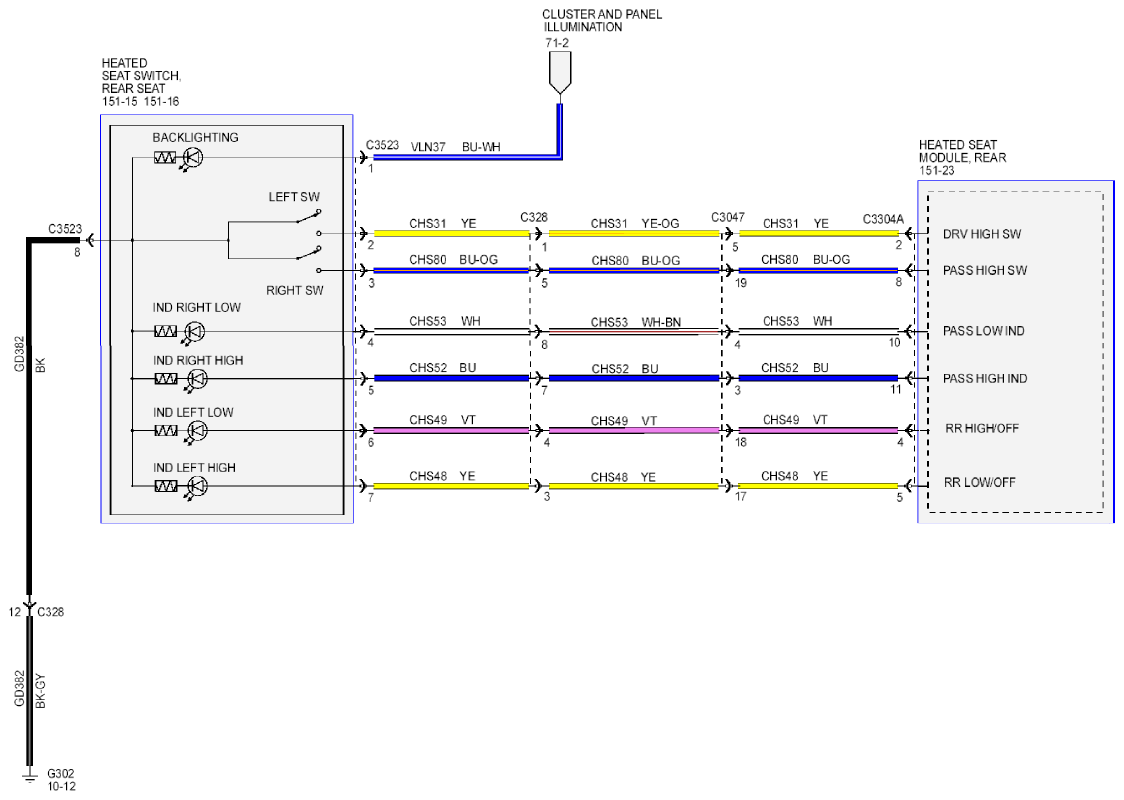

Fig 1: Climate Controlled Seats (Rear Heated Seats) - Wiring Diagram (1 Of 2)
G09269553Courtesy of FORD MOTOR CO.

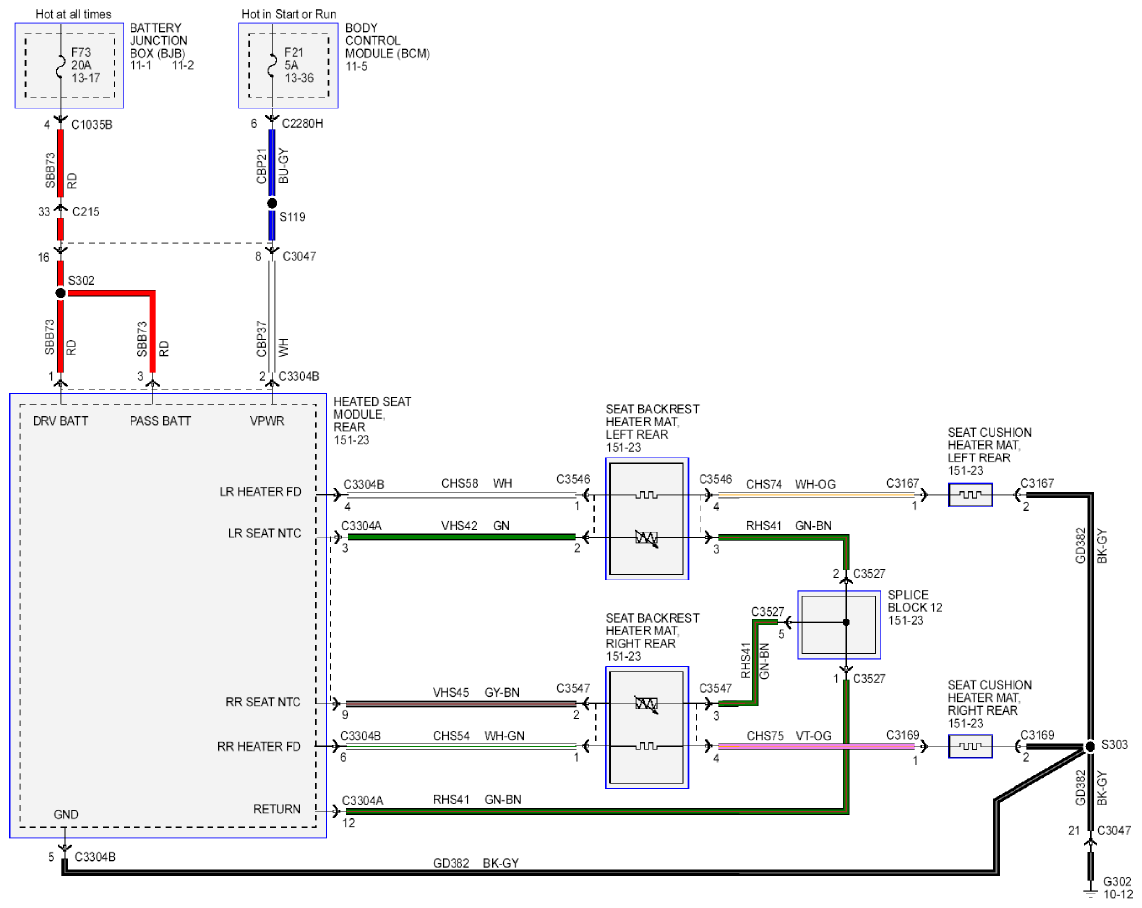

Fig 2: Climate Controlled Seats (Rear Heated Seats) - Wiring Diagram (2 Of 2)
G09269554Courtesy of FORD MOTOR CO.
