Heated Seats

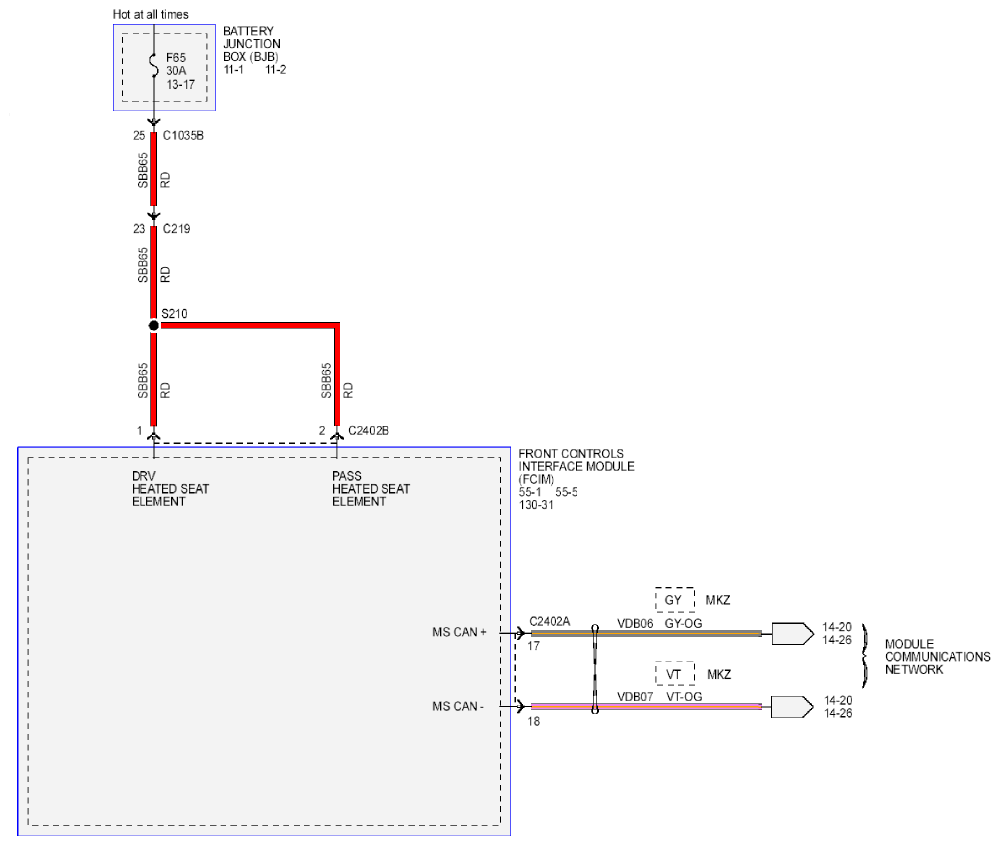

Fig 1: Climate Controlled Seats (Heated Seats) - Wiring Diagram (1 Of 3)
G09269550Courtesy of FORD MOTOR CO.

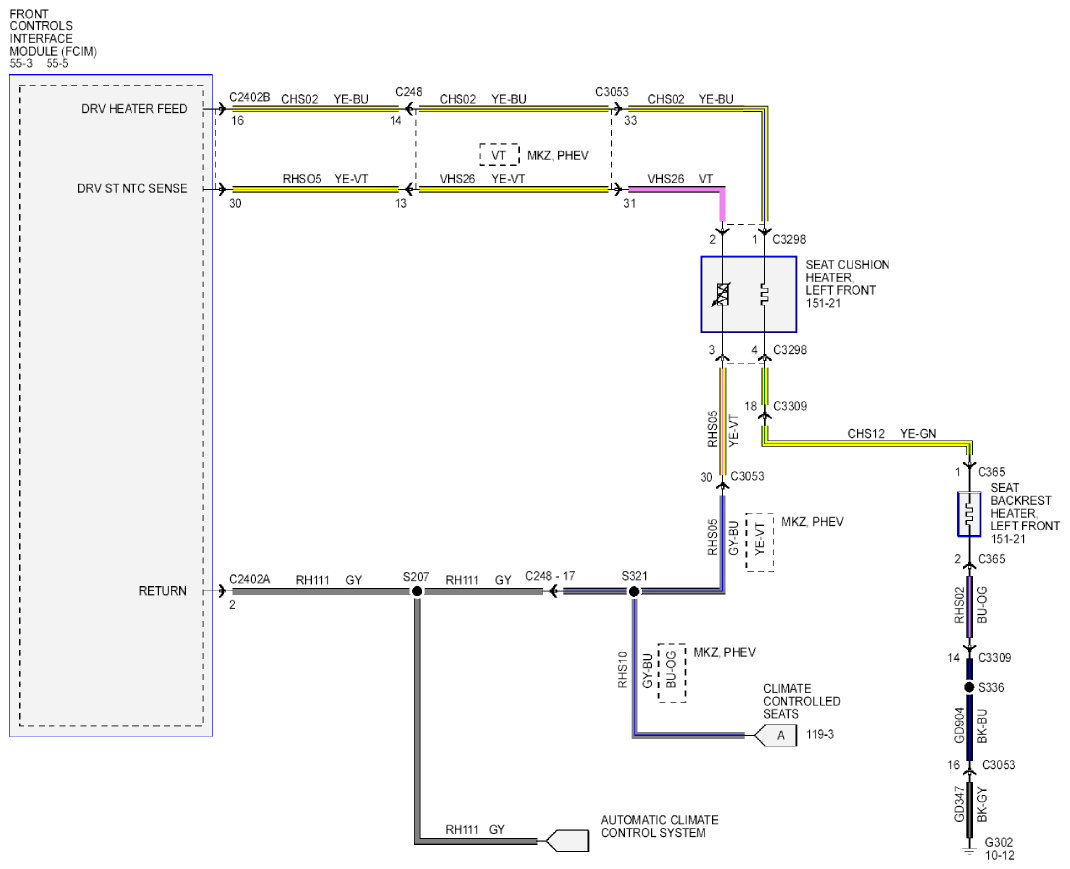

Fig 2: Climate Controlled Seats (Heated Seats) - Wiring Diagram (2 Of 3)
G09269551Courtesy of FORD MOTOR CO.

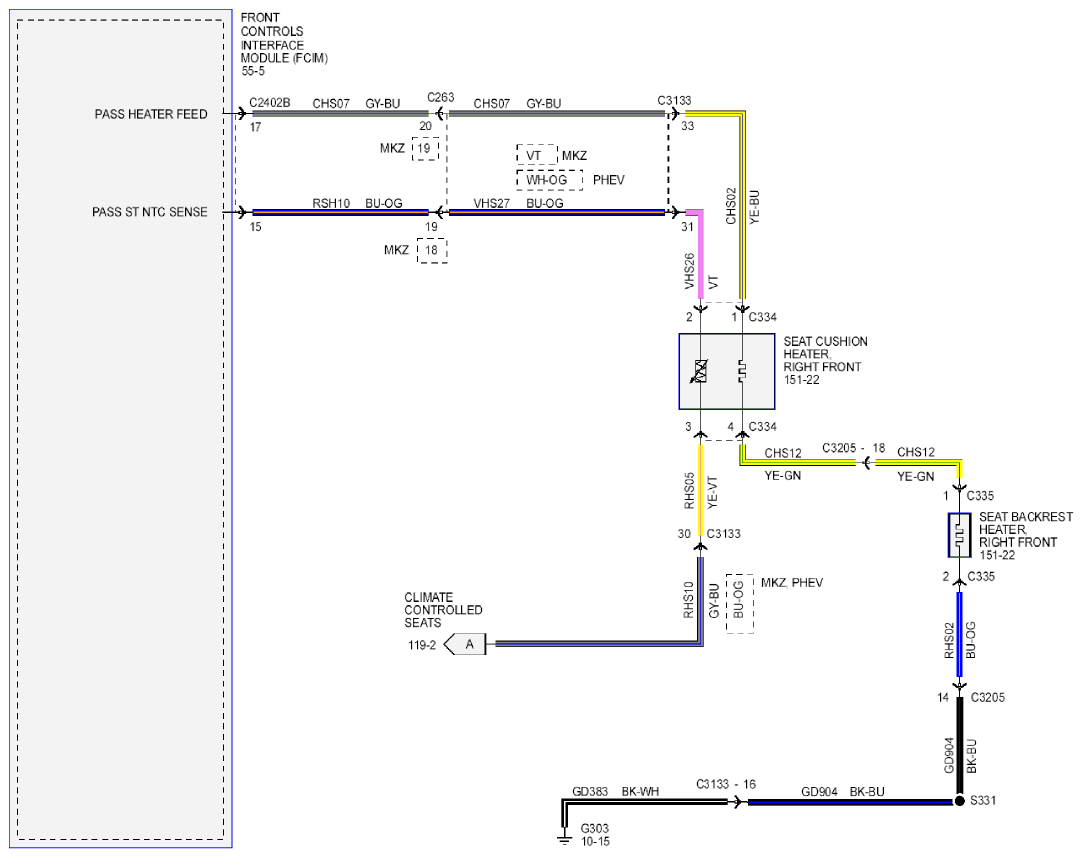

Fig 3: Climate Controlled Seats (Heated Seats) - Wiring Diagram (3 Of 3)
G09269552Courtesy of FORD MOTOR CO.
