Climate Controlled Seats

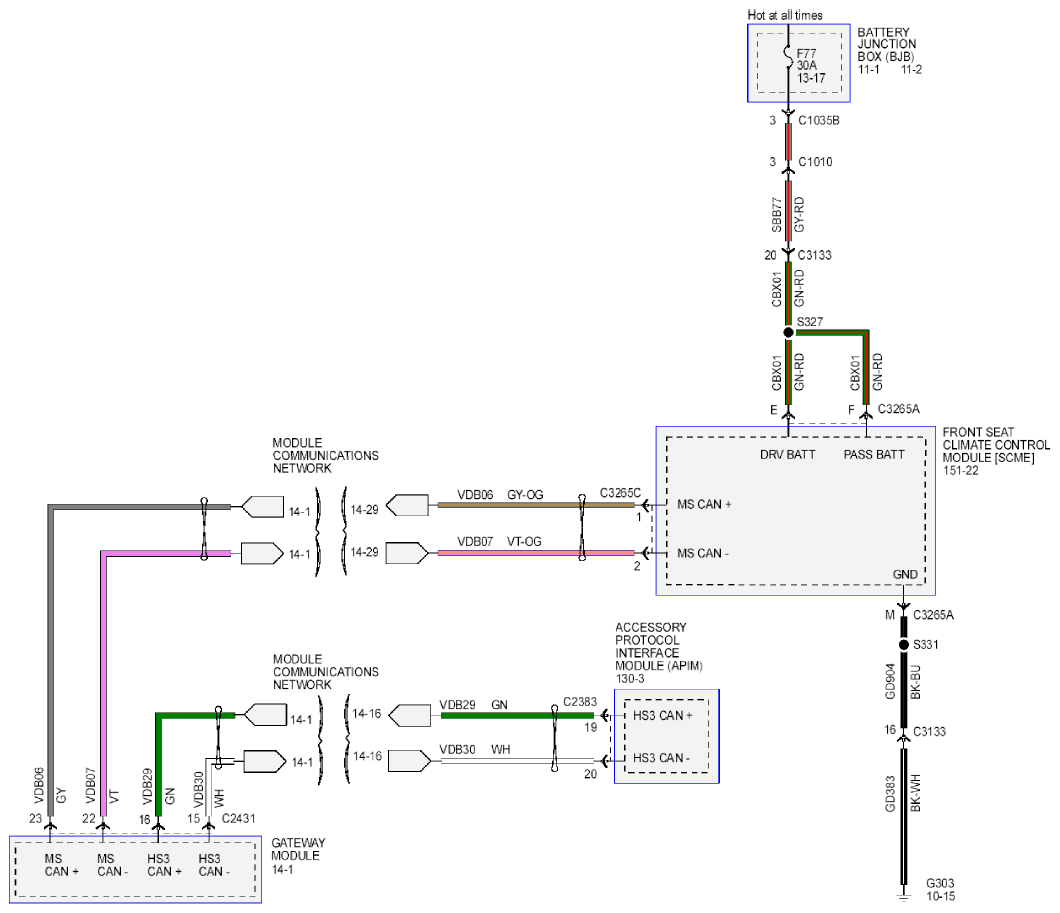

Fig 1: Climate Controlled Seats - Wiring Diagram (1 Of 3)
G09269555Courtesy of FORD MOTOR CO.

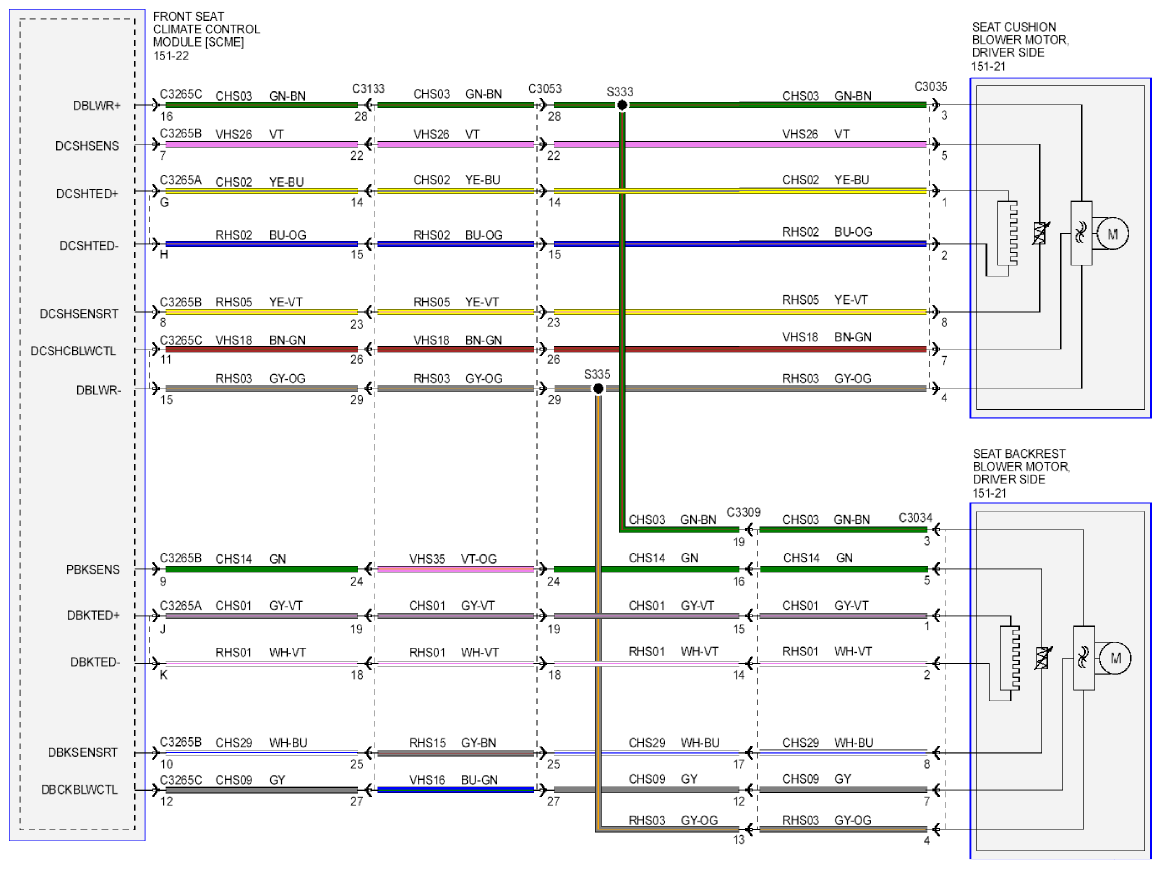

Fig 2: Climate Controlled Seats - Wiring Diagram (2 Of 3)
G09269556Courtesy of FORD MOTOR CO.

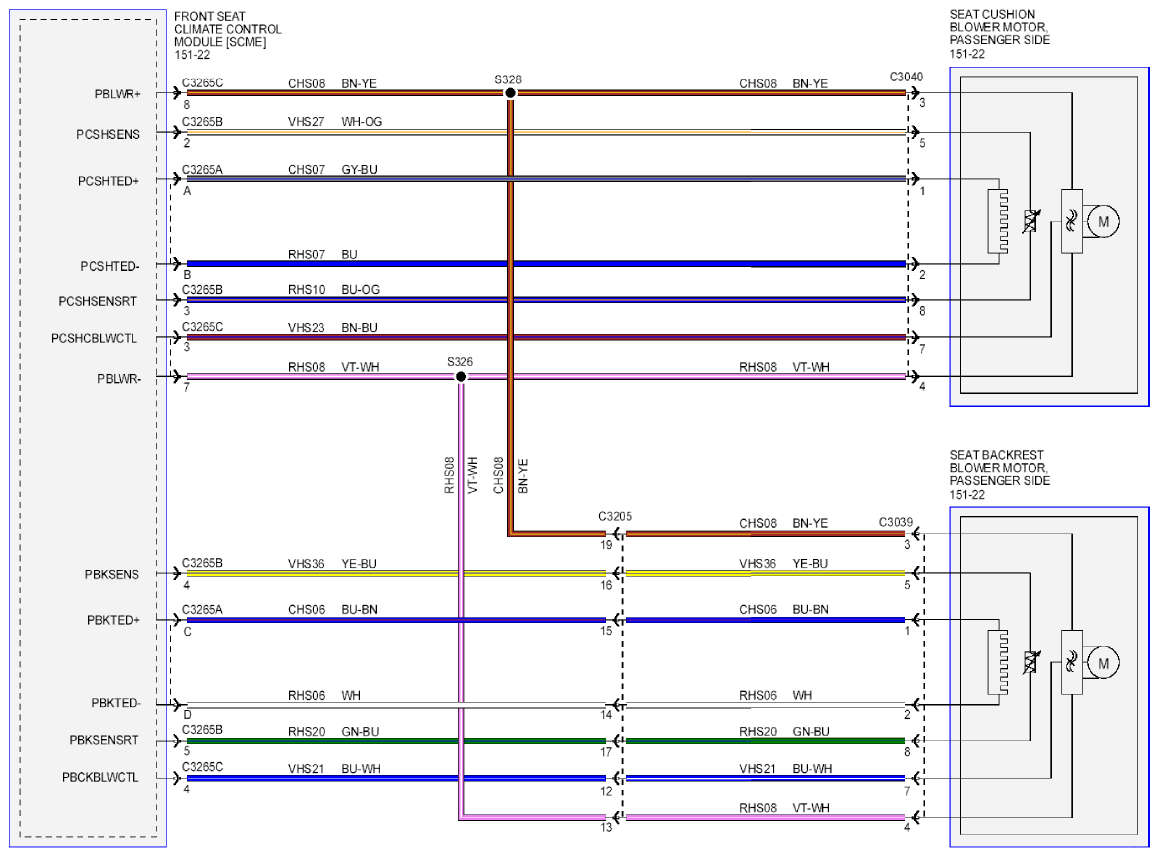

Fig 3: Climate Controlled Seats - Wiring Diagram (3 Of 3)
G09269557Courtesy of FORD MOTOR CO.
