Charging System
>>
PHEV
Charging System: PHEV

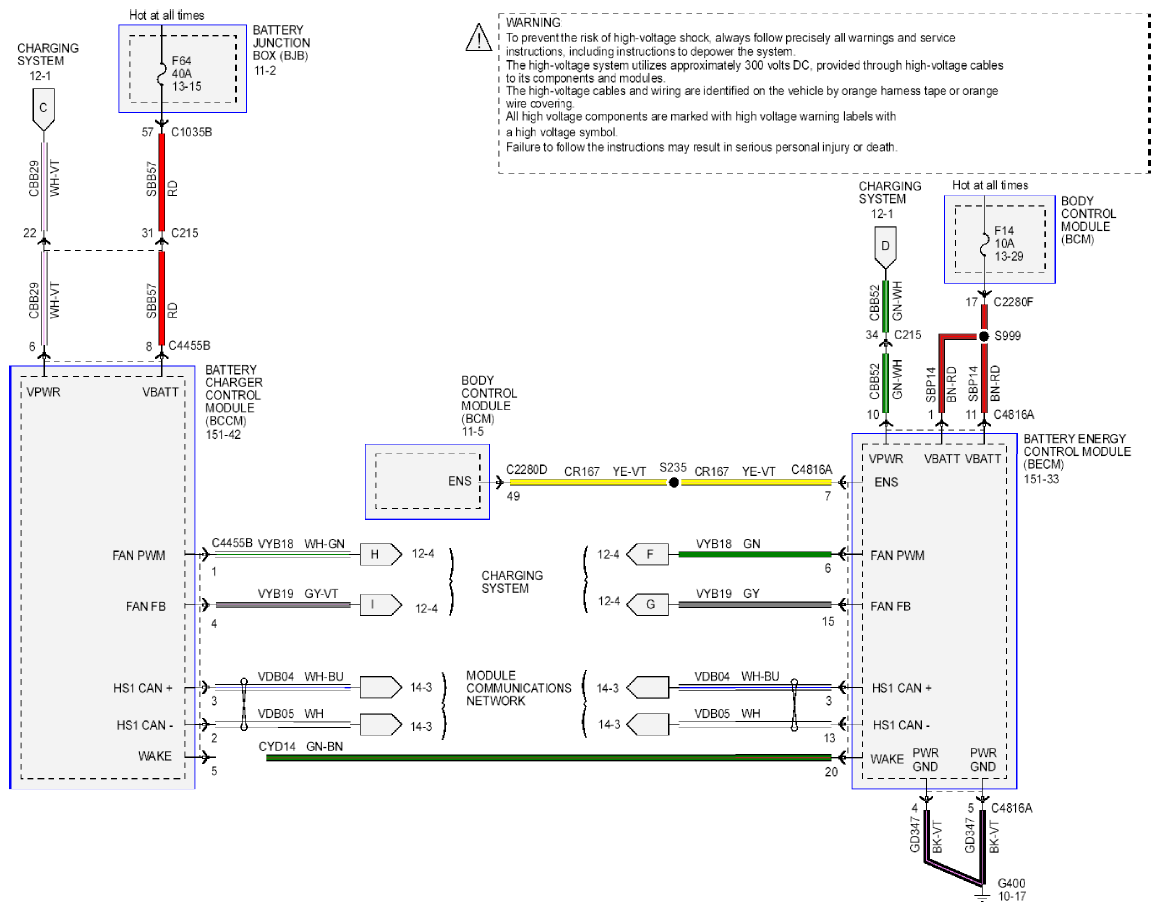

Fig 1: Charging System - PHEV - Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR CO.

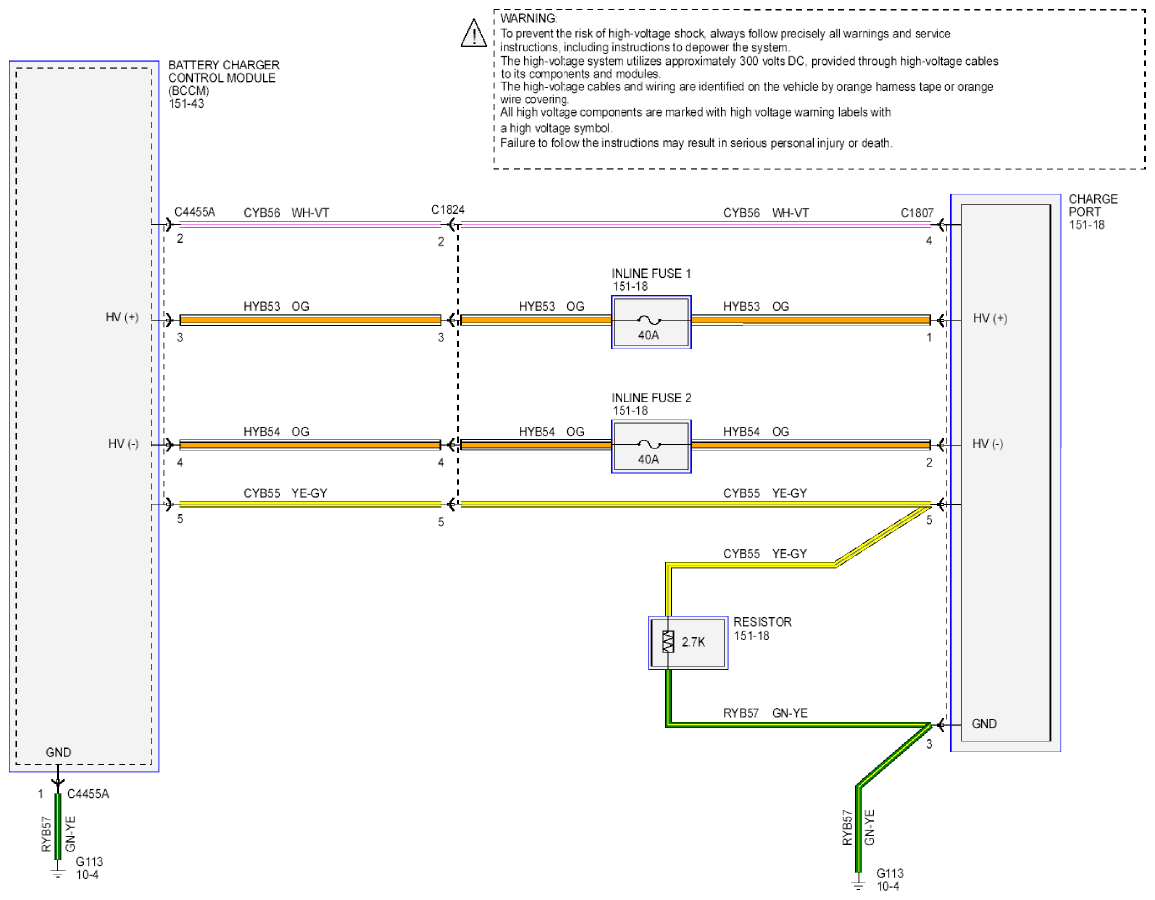

Fig 2: Charging System - PHEV - Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR CO.

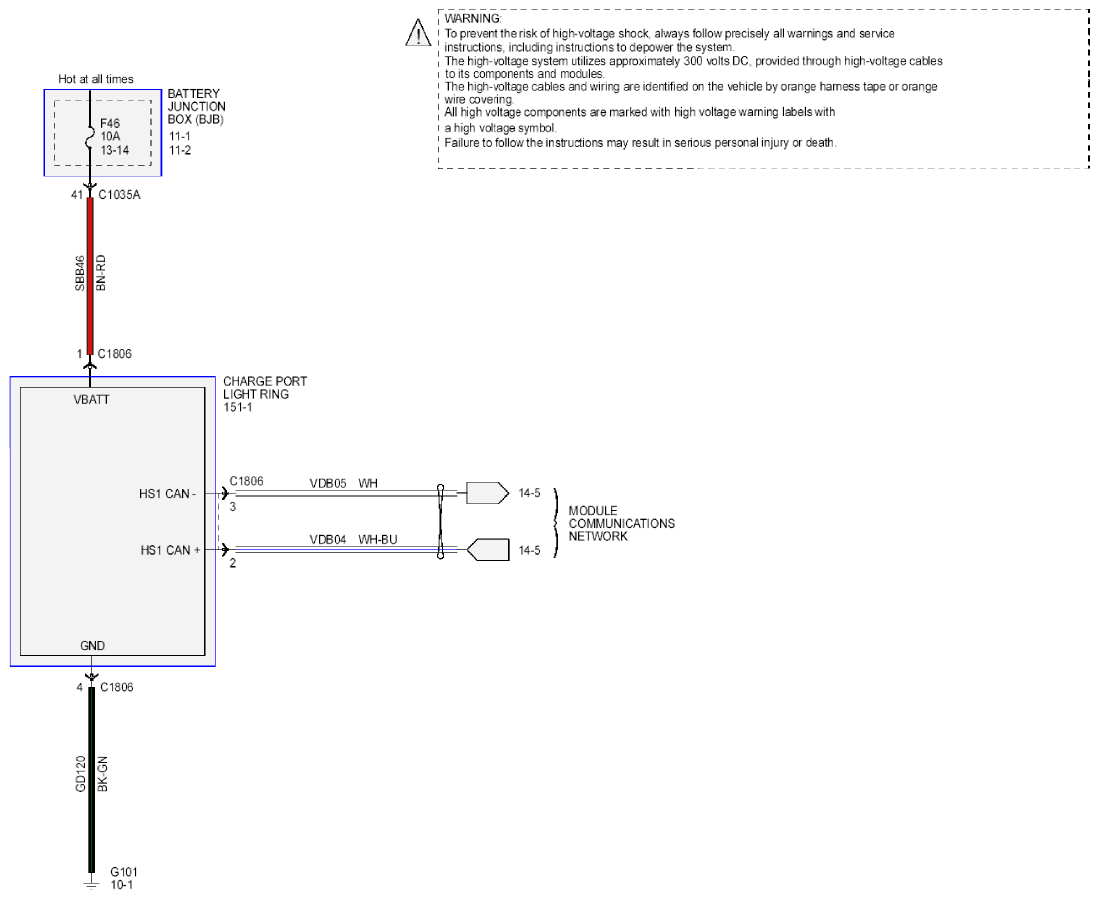

Fig 3: Charging System - PHEV - Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR CO.

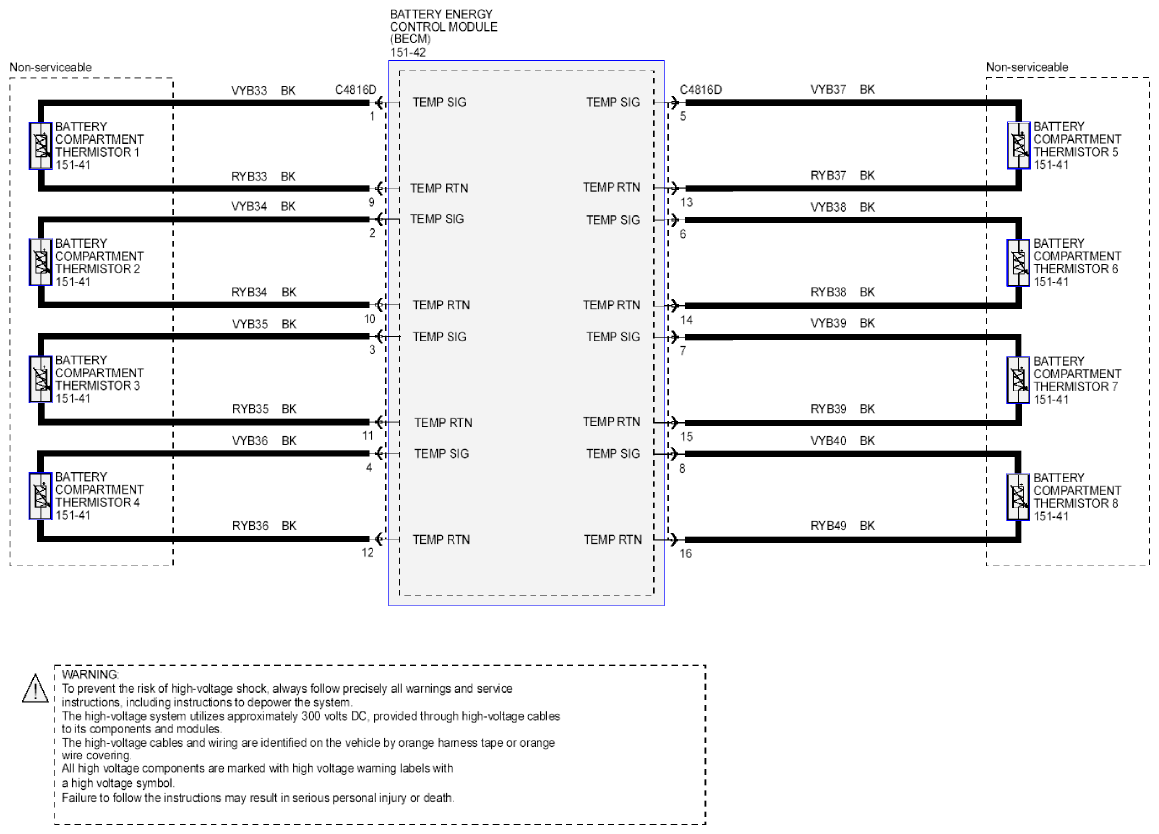

Fig 4: Charging System - PHEV - Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR CO.

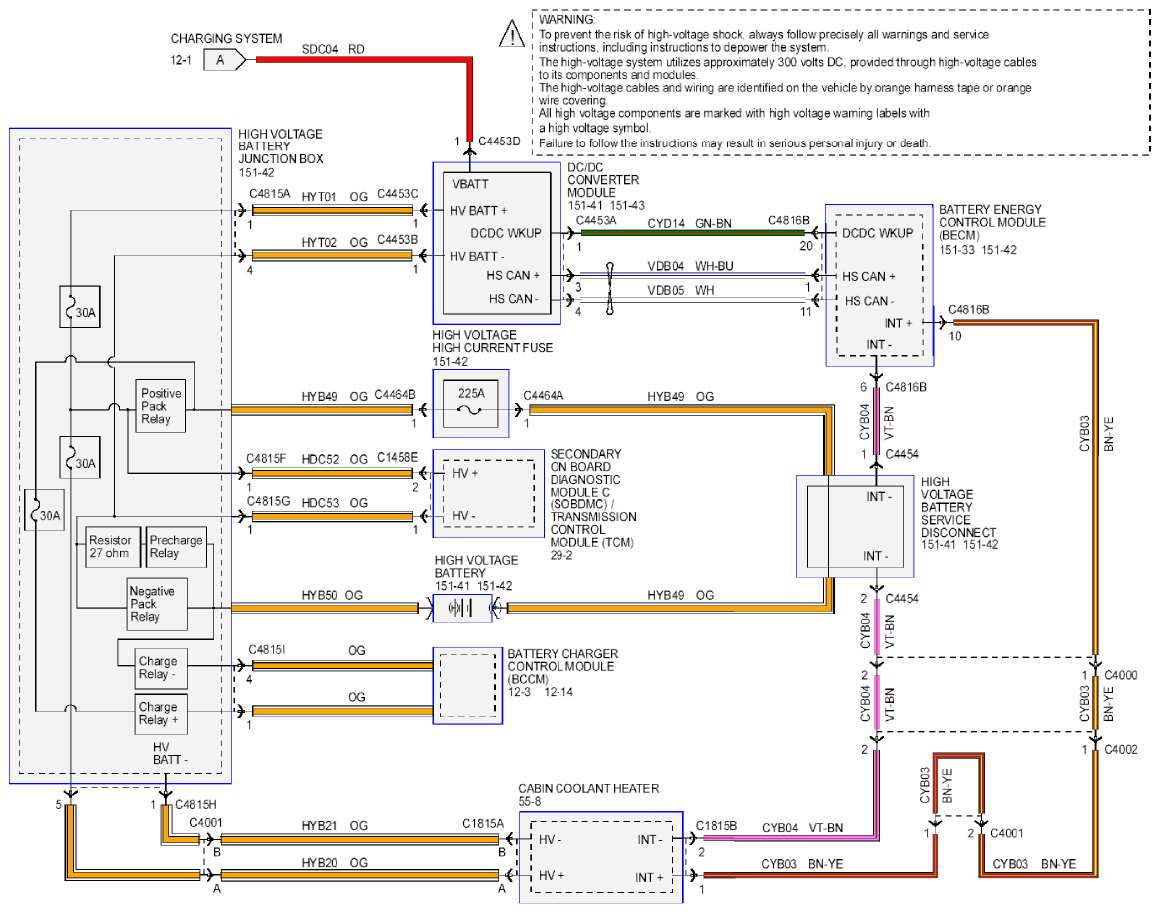

Fig 5: Charging System - PHEV - Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR CO.

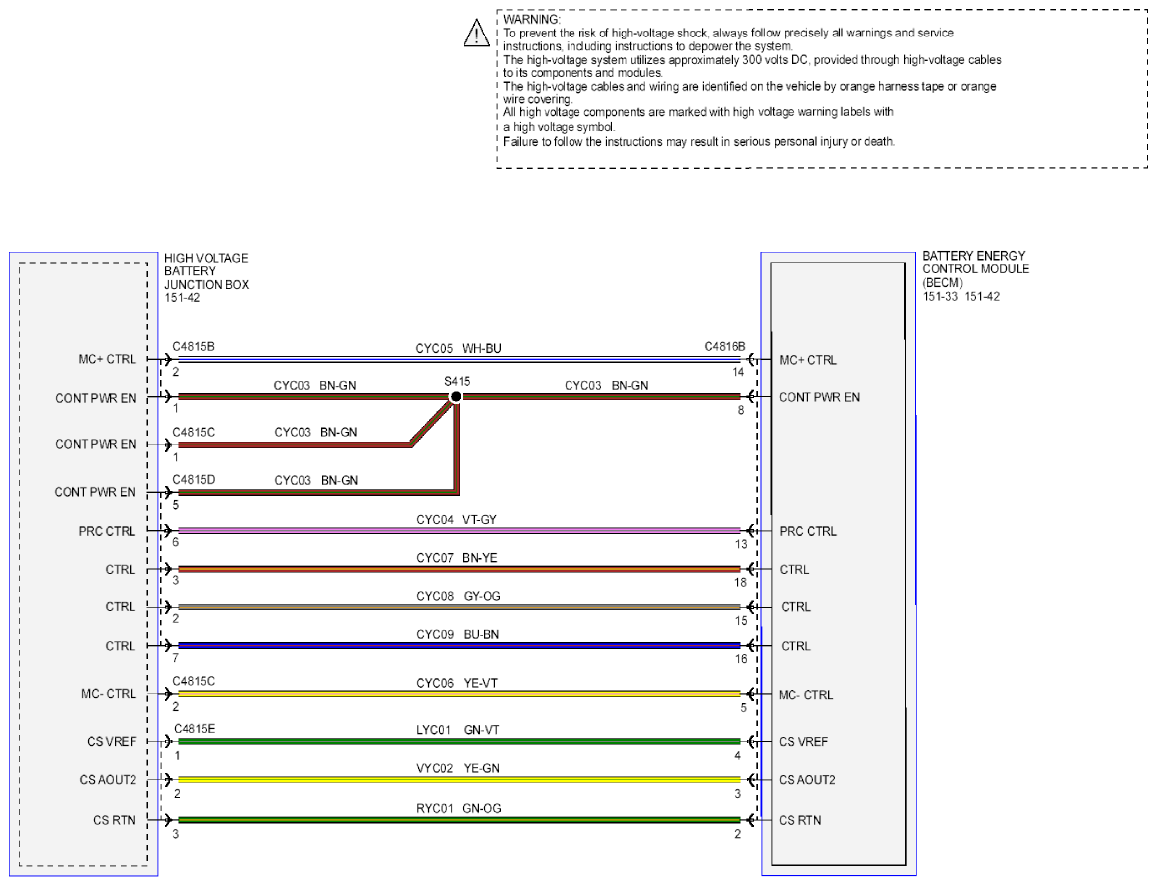

Fig 6: Charging System - PHEV - Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR CO.
Fig 7: Charging System - PHEV - Wiring Diagram (7 Of 7)
Courtesy of FORD MOTOR CO.
