Charging System: Notes

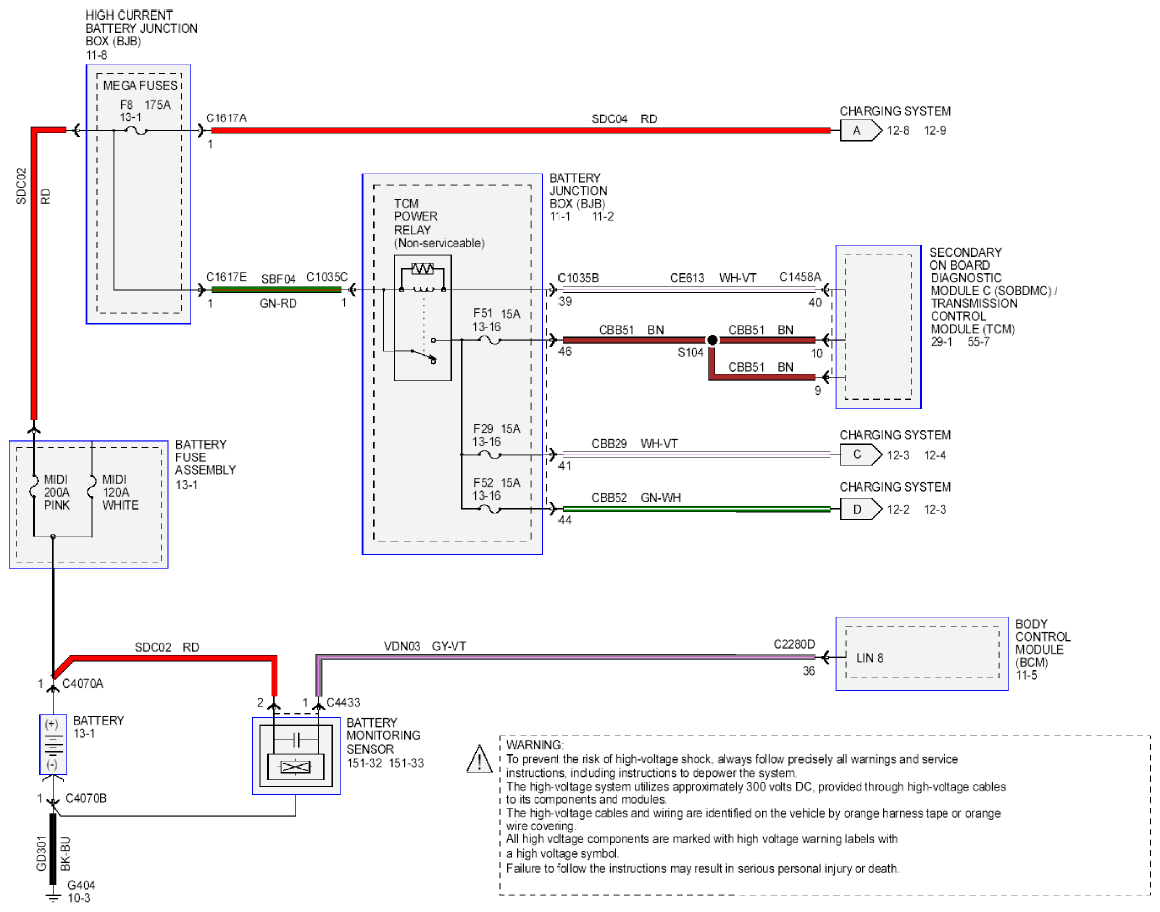

Fig 1: Charging System - Wiring Diagram (1 Of 3)
G09269301Courtesy of FORD MOTOR CO.

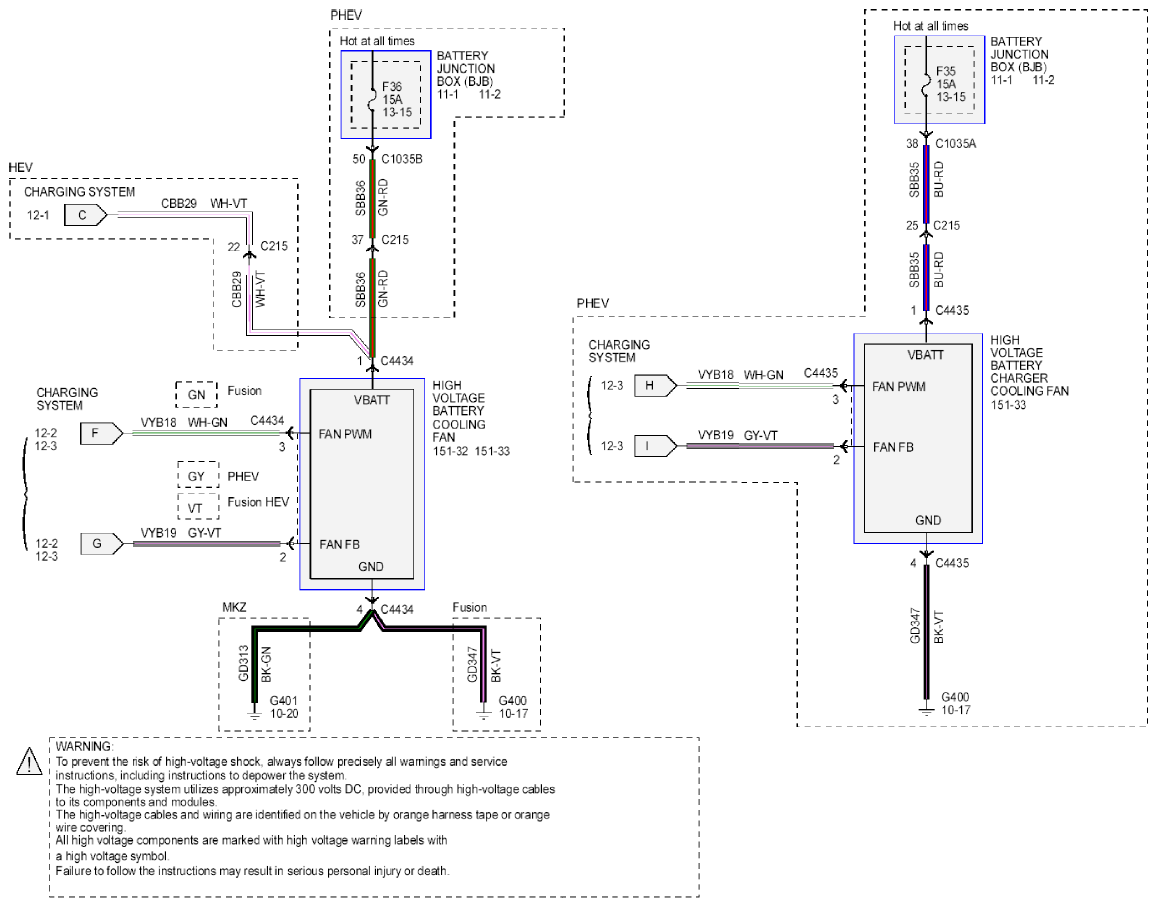

Fig 2: Charging System - Wiring Diagram (2 Of 3)
G09269304Courtesy of FORD MOTOR CO.

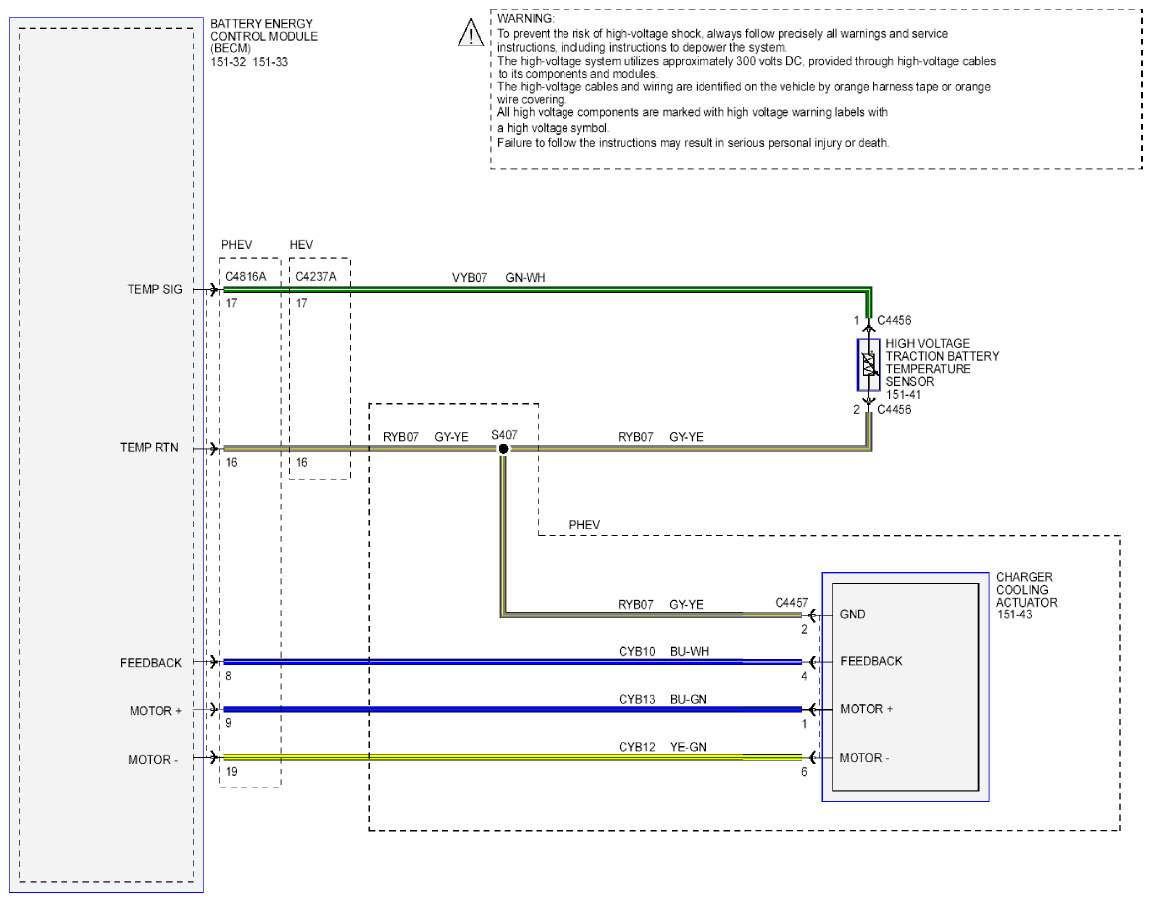

Fig 3: Charging System - Wiring Diagram (3 Of 3)
G09269310Courtesy of FORD MOTOR CO.
