Charging System: HEV

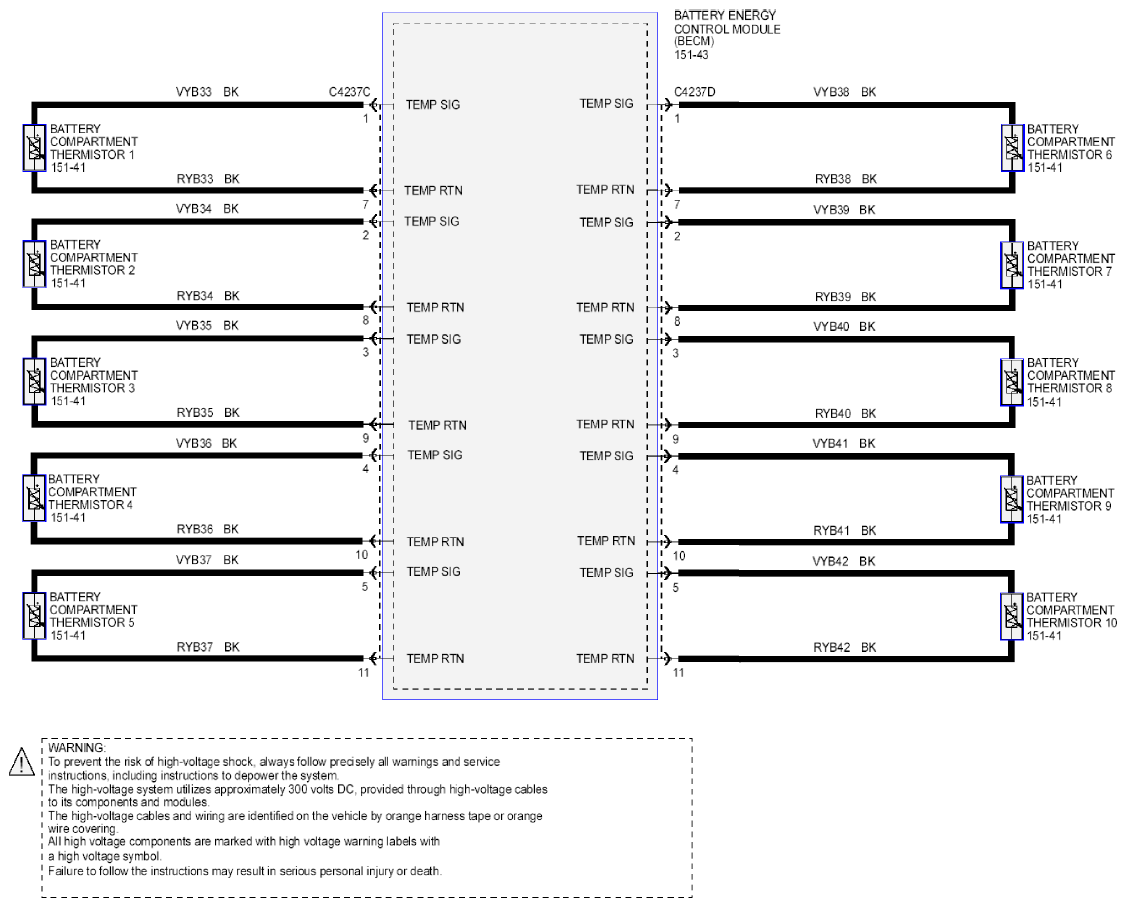

Fig 1: Charging System - Wiring Diagram (HEV) (1 Of 4)
Courtesy of FORD MOTOR CO.

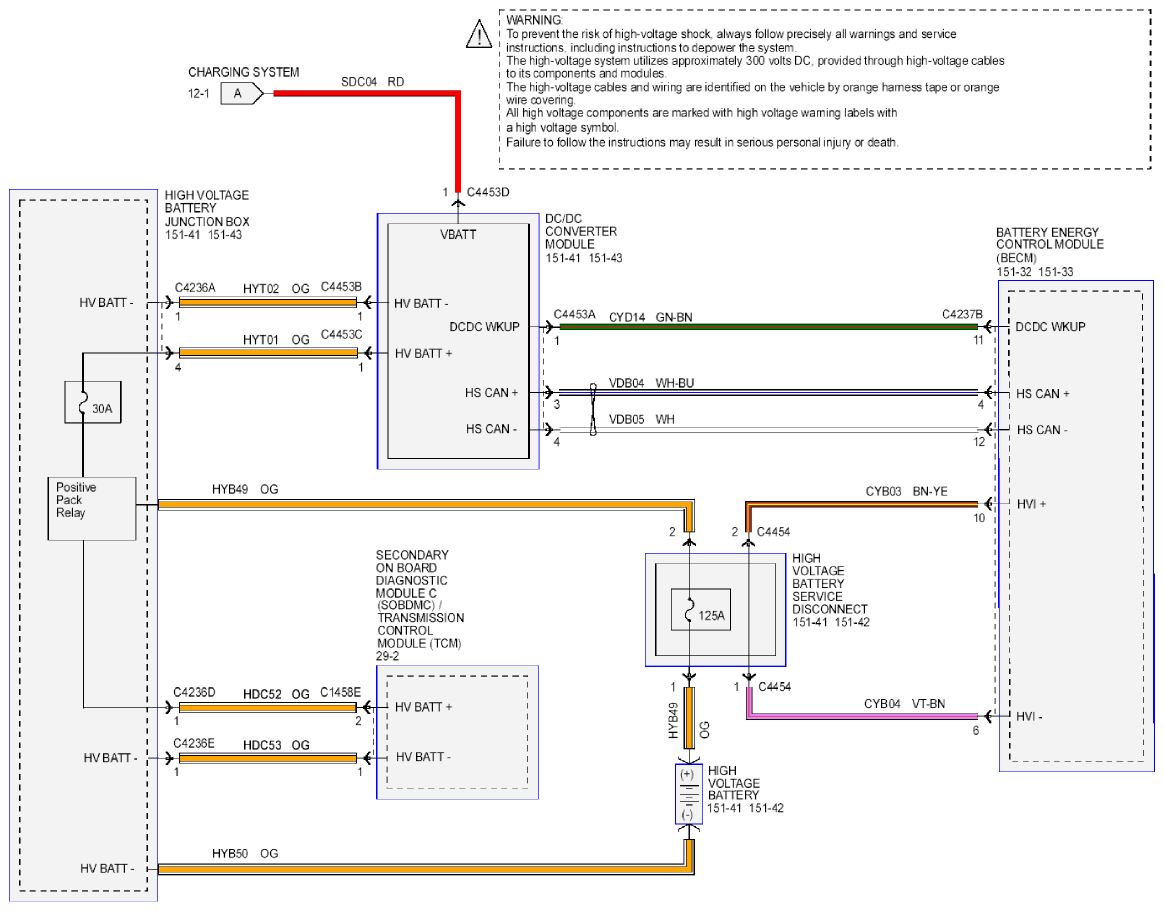

Fig 2: Charging System - Wiring Diagram (HEV) (2 Of 4)
Courtesy of FORD MOTOR CO.

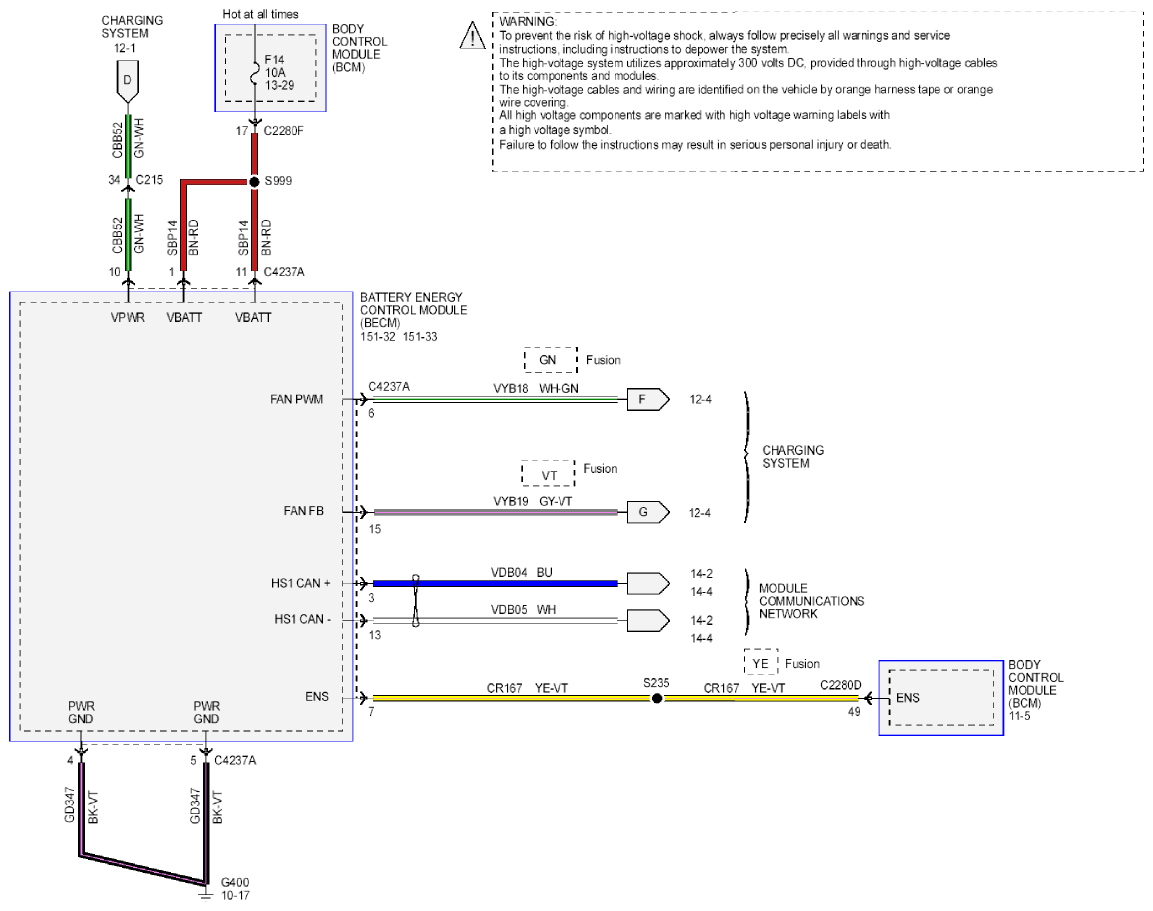

Fig 3: Charging System - Wiring Diagram (HEV) (3 Of 4)
Courtesy of FORD MOTOR CO.

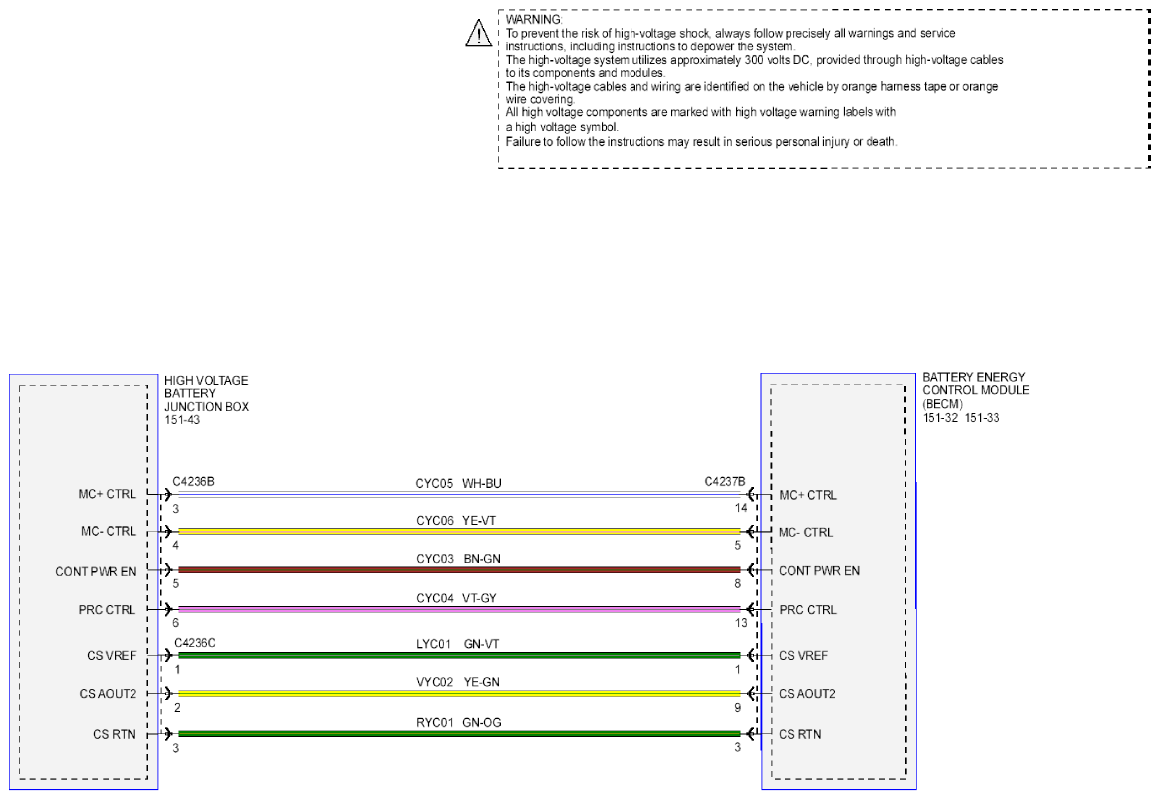

Fig 4: Charging System - Wiring Diagram (HEV) (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
