Automatic Climate Control System: PHEV

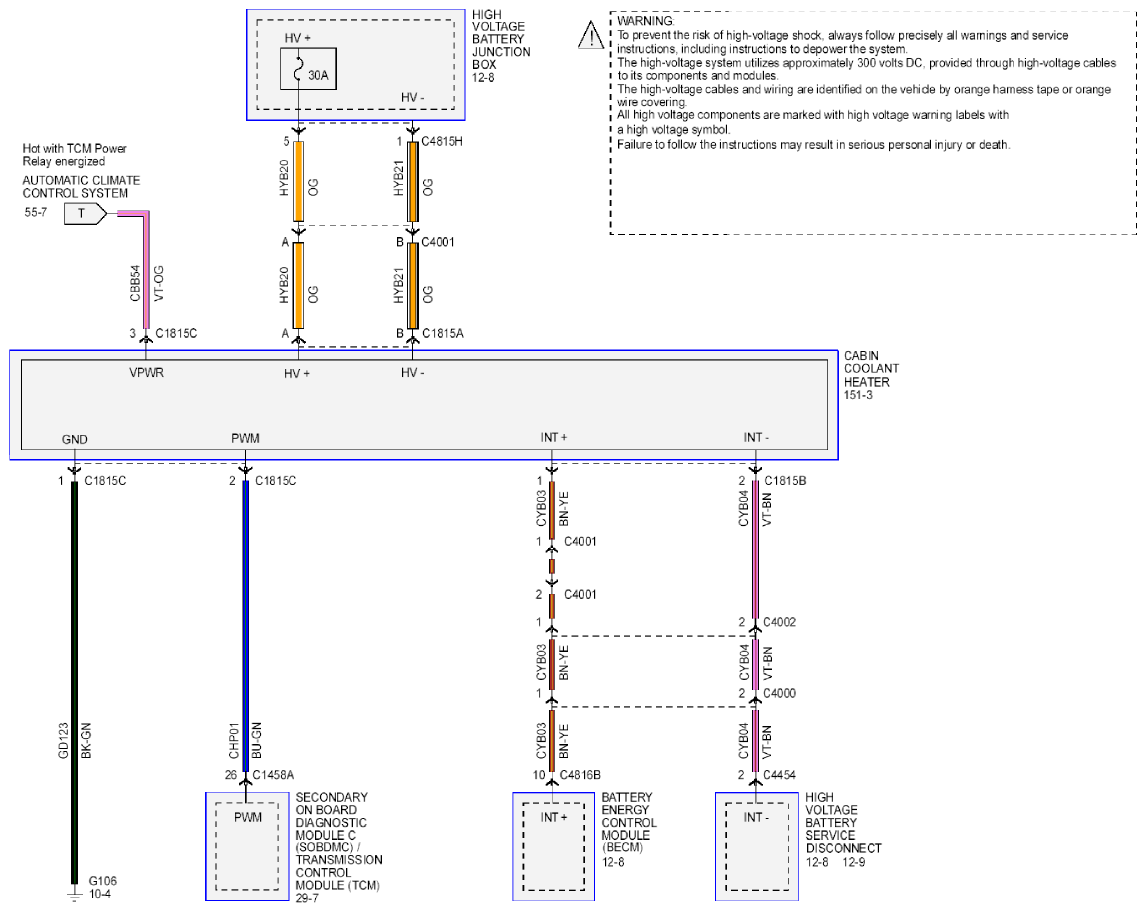

Fig 1: Automatic Climate Control System - PHEV - Wiring Diagram (1 Of 2)
G09269462Courtesy of FORD MOTOR CO.

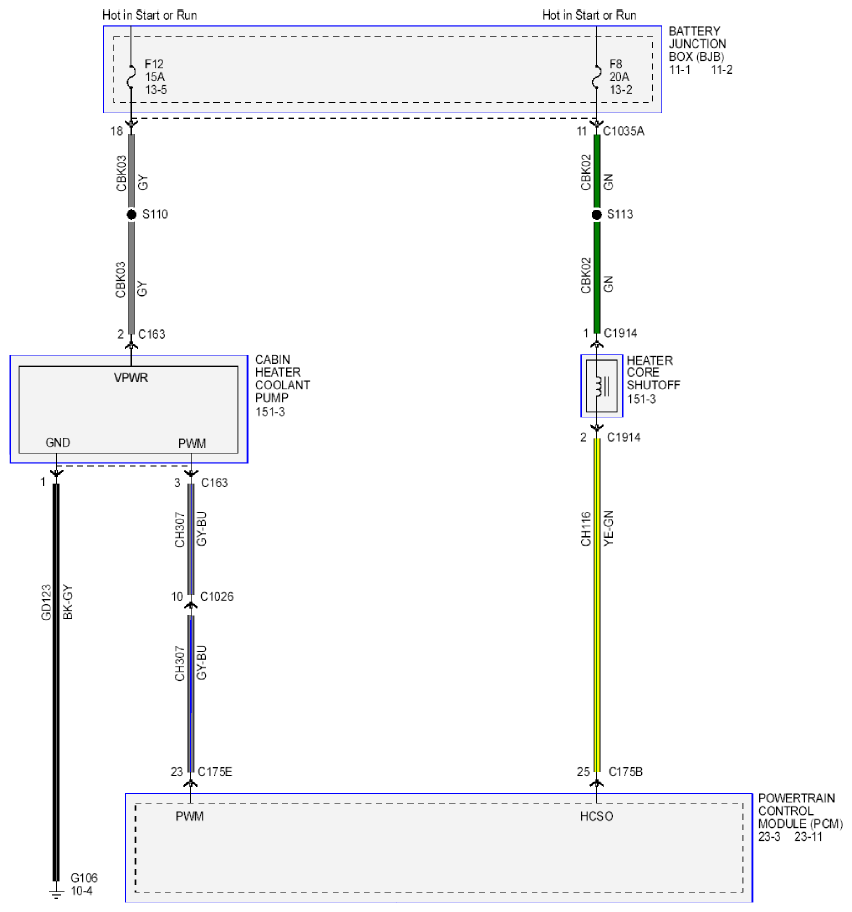

Fig 2: Automatic Climate Control System - PHEV - Wiring Diagram (2 Of 2)
G09269463Courtesy of FORD MOTOR CO.
