THX® Audio

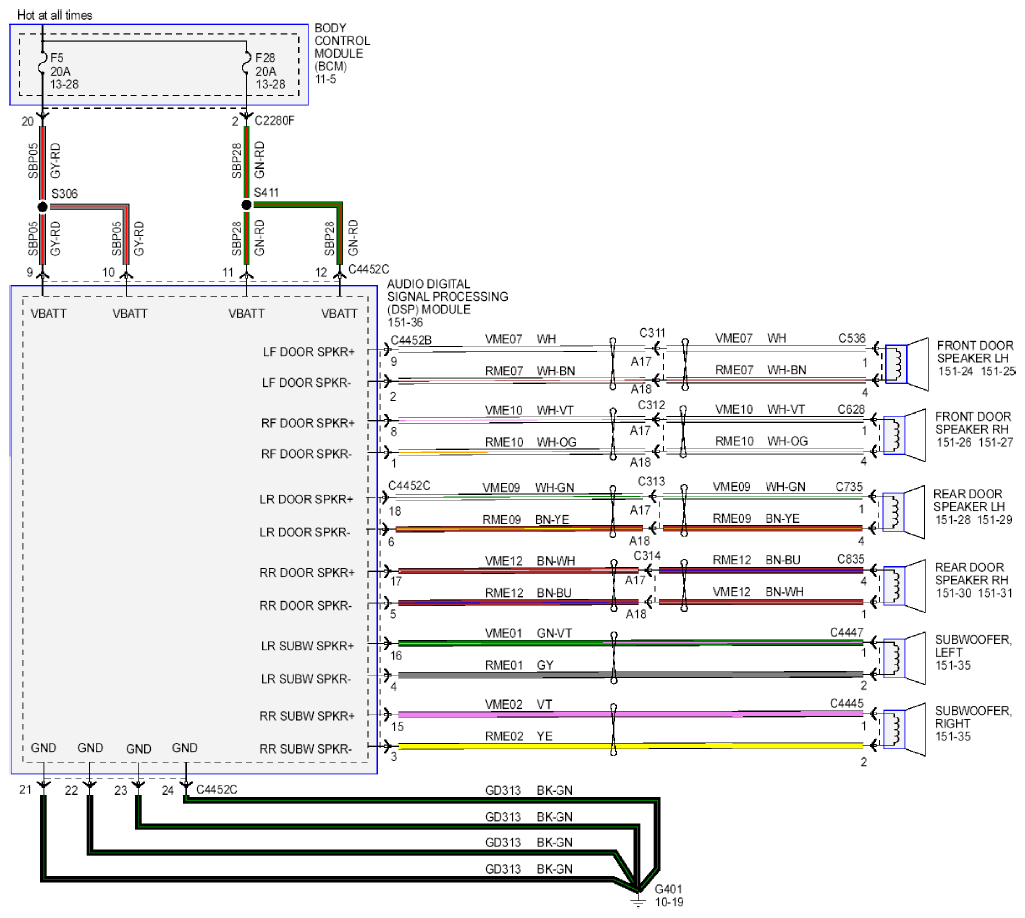

Fig 1: Audio System Navigation Base THX® Audio - Wiring Diagram (1 Of 4)
G09269594Courtesy of FORD MOTOR CO.

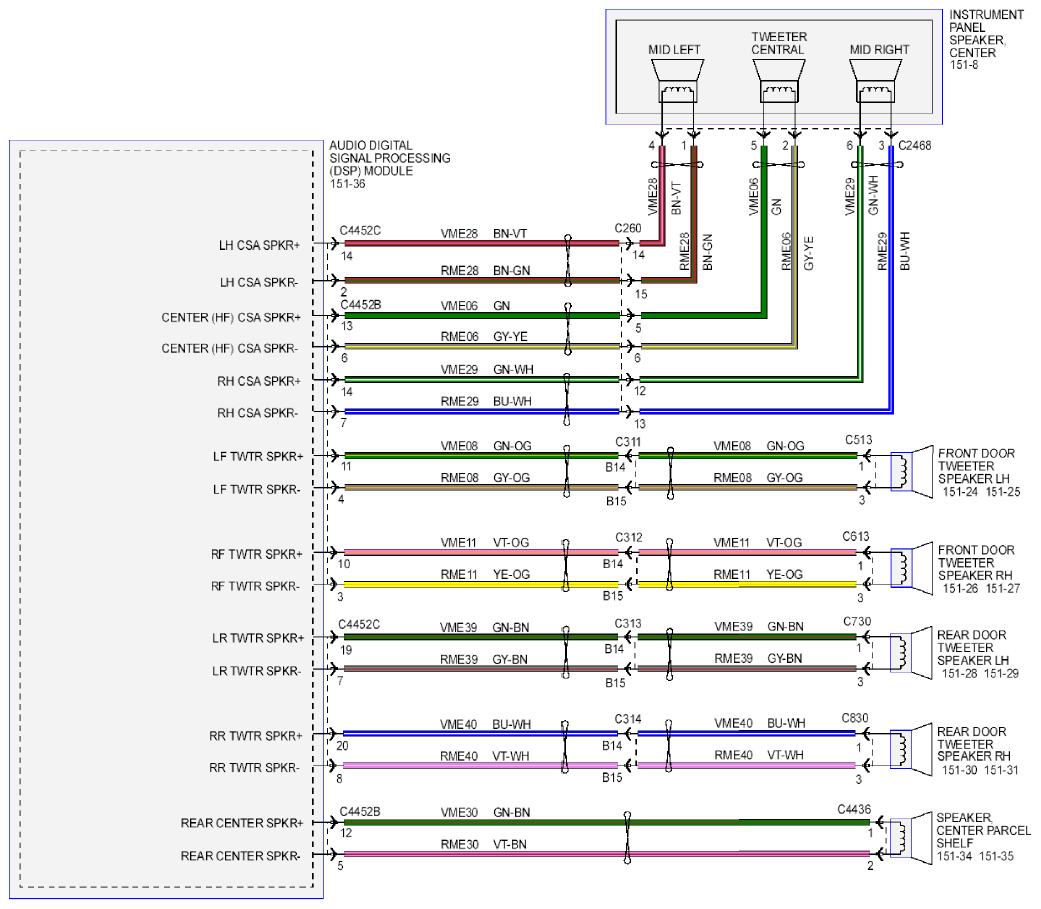

Fig 2: Audio System Navigation Base THX® Audio - Wiring Diagram (2 Of 4)
G09269595Courtesy of FORD MOTOR CO.

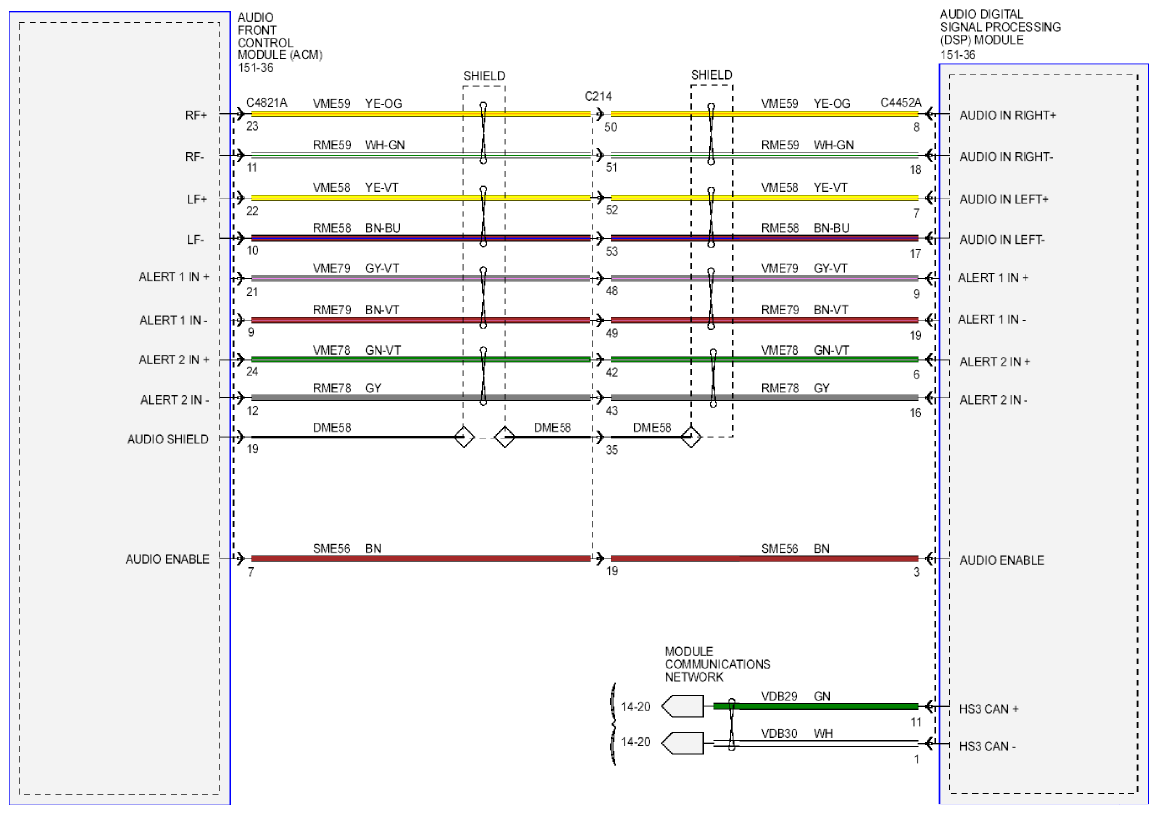

Fig 3: Audio System Navigation Base THX® Audio - Wiring Diagram (3 Of 4)
G09269596Courtesy of FORD MOTOR CO.

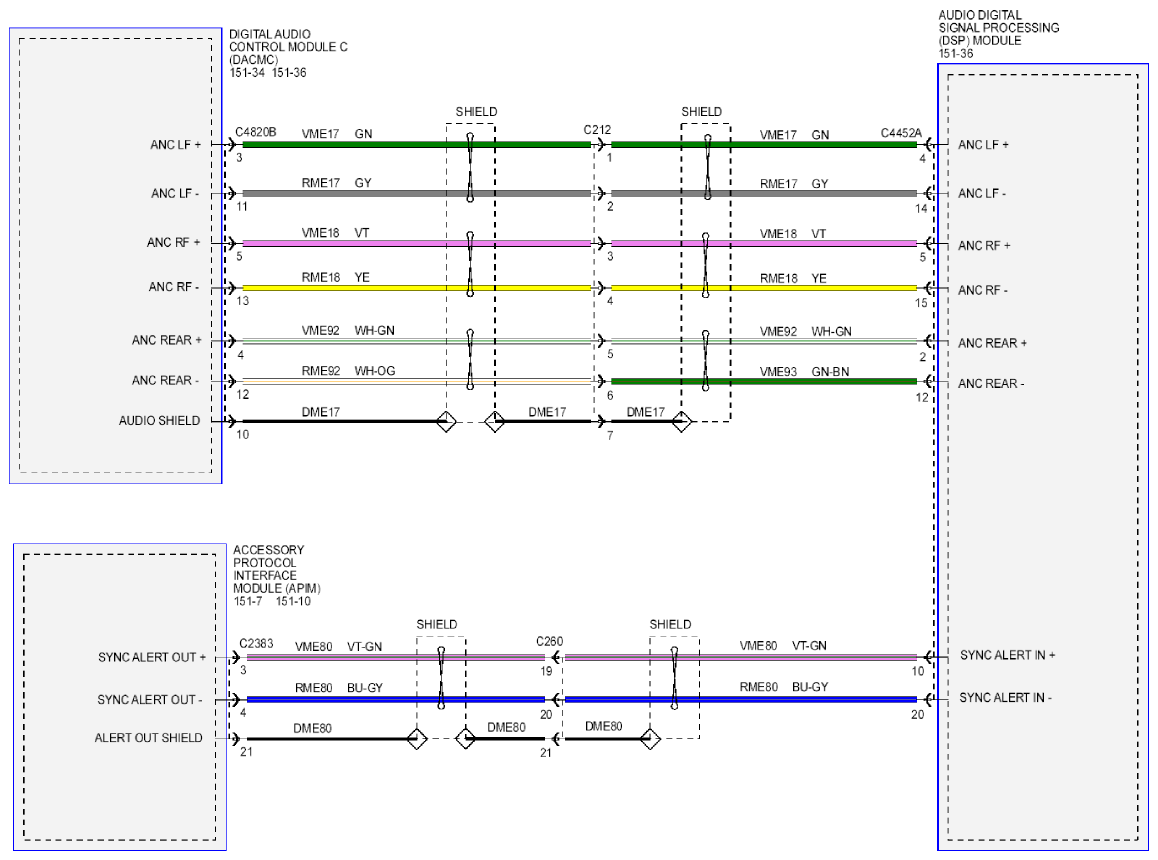

Fig 4: Audio System Navigation Base THX® Audio - Wiring Diagram (4 Of 4)
G09269597Courtesy of FORD MOTOR CO.
