Audio System/Navigation: PHEV

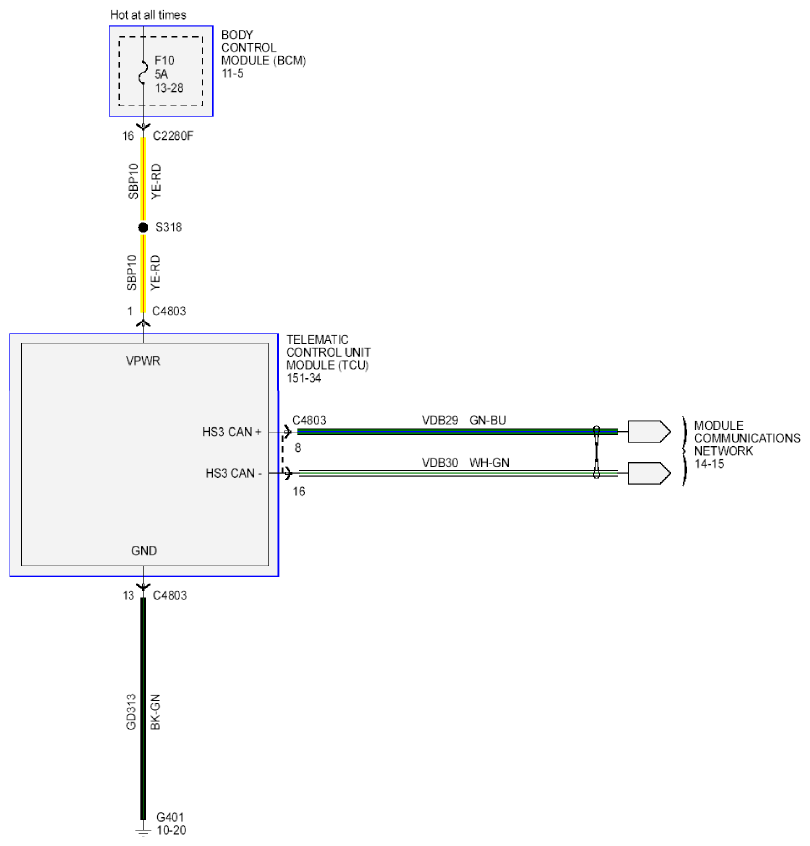

Fig 1: Audio System Navigation Base PHEV - Wiring Diagram

G09269603

Courtesy of FORD MOTOR CO.
