Audio System/Navigation: Notes

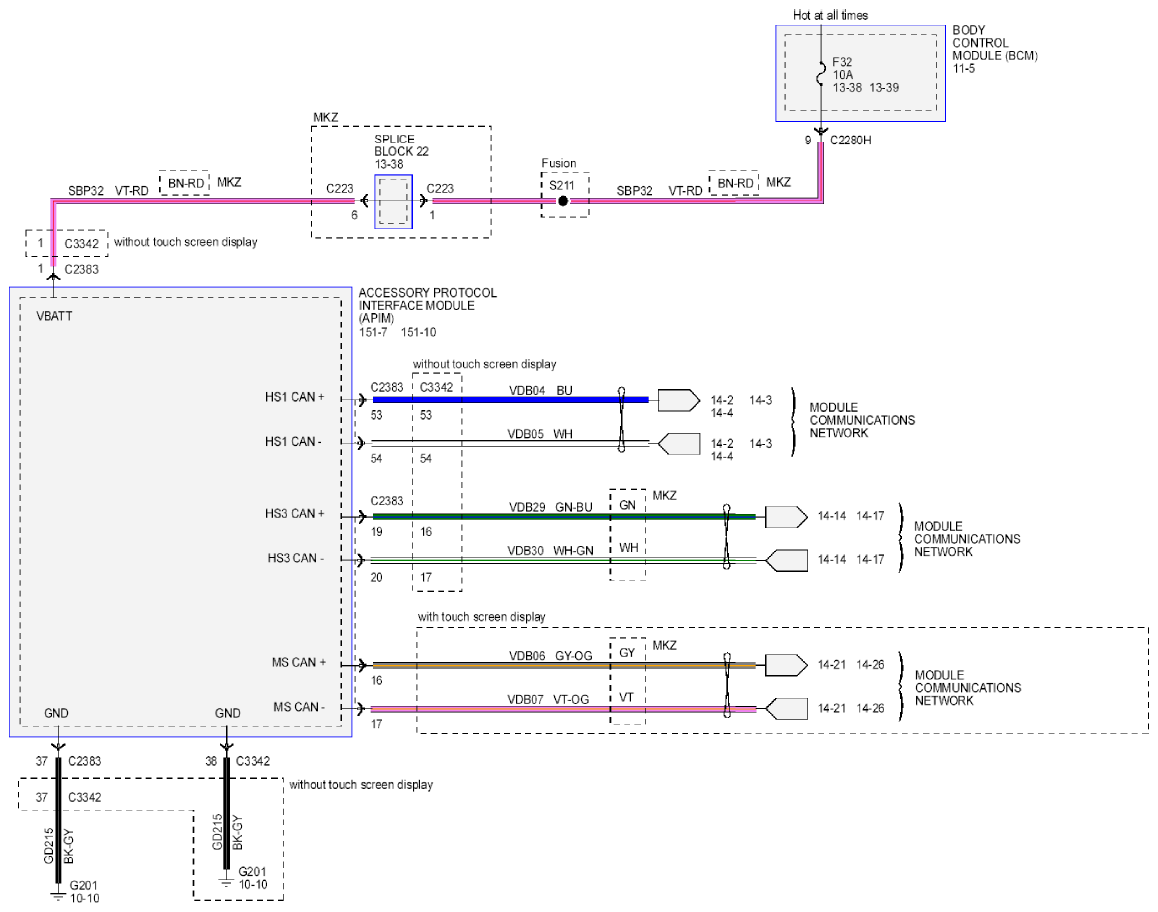

Fig 1: Audio System Navigation - Wiring Diagram (1 Of 3)
G09269579Courtesy of FORD MOTOR CO.

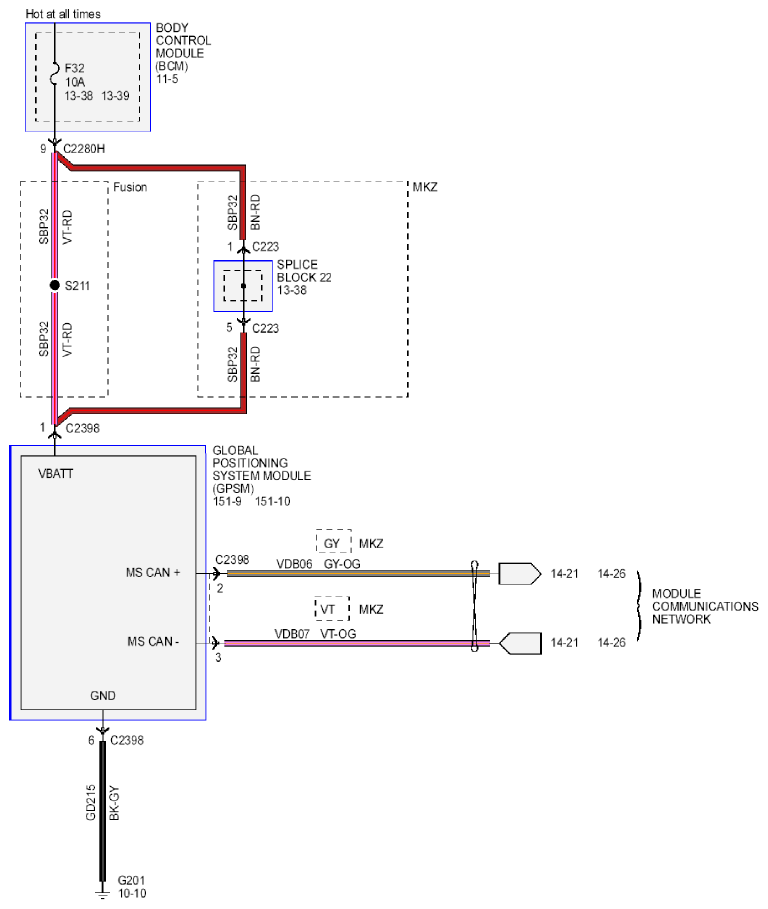

Fig 2: Audio System Navigation - Wiring Diagram (2 Of 3)
G09269602Courtesy of FORD MOTOR CO.

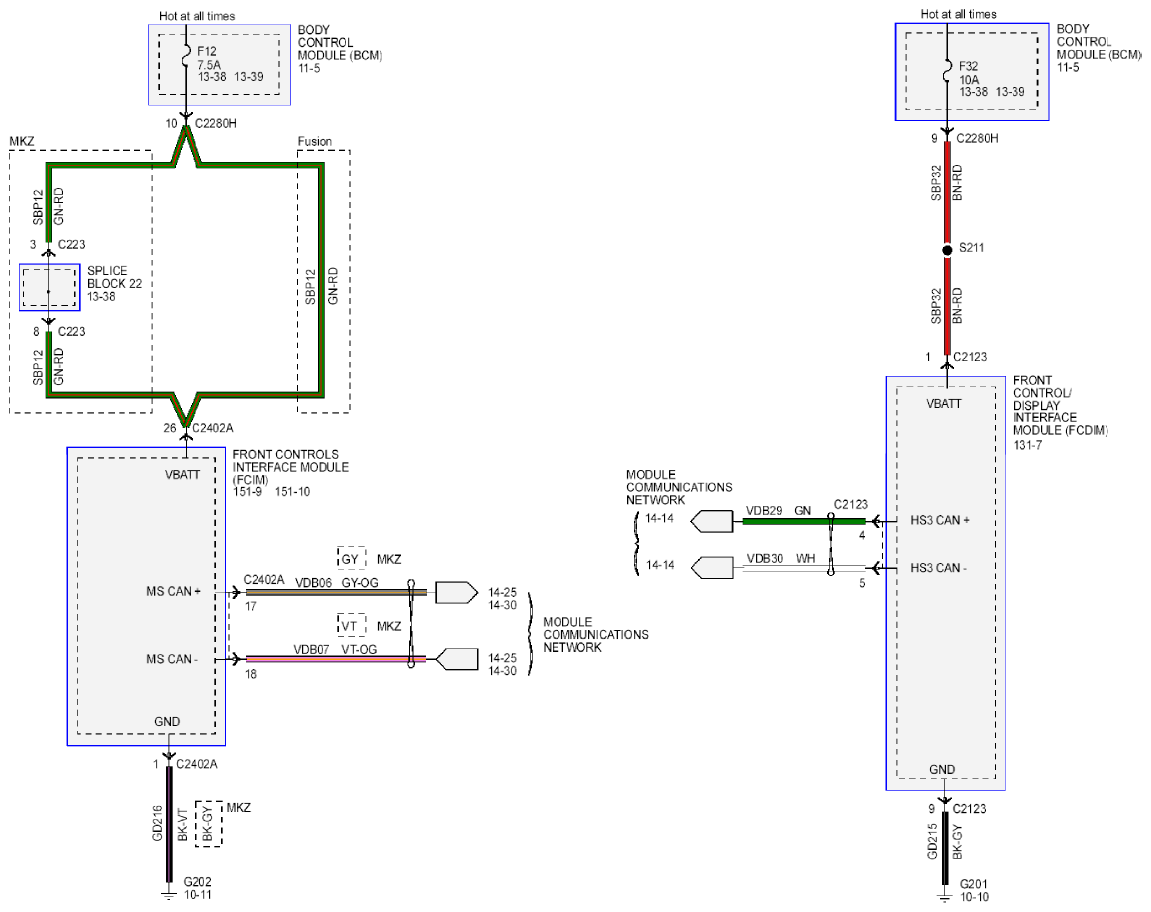

Fig 3: Audio System Navigation - Wiring Diagram (3 Of 3)
G09269607Courtesy of FORD MOTOR CO.
