OEM Wiring Diagrams -- (Hybrid)
>>
Audio System/Navigation
>>
Mid - Fusion
Mid - Fusion

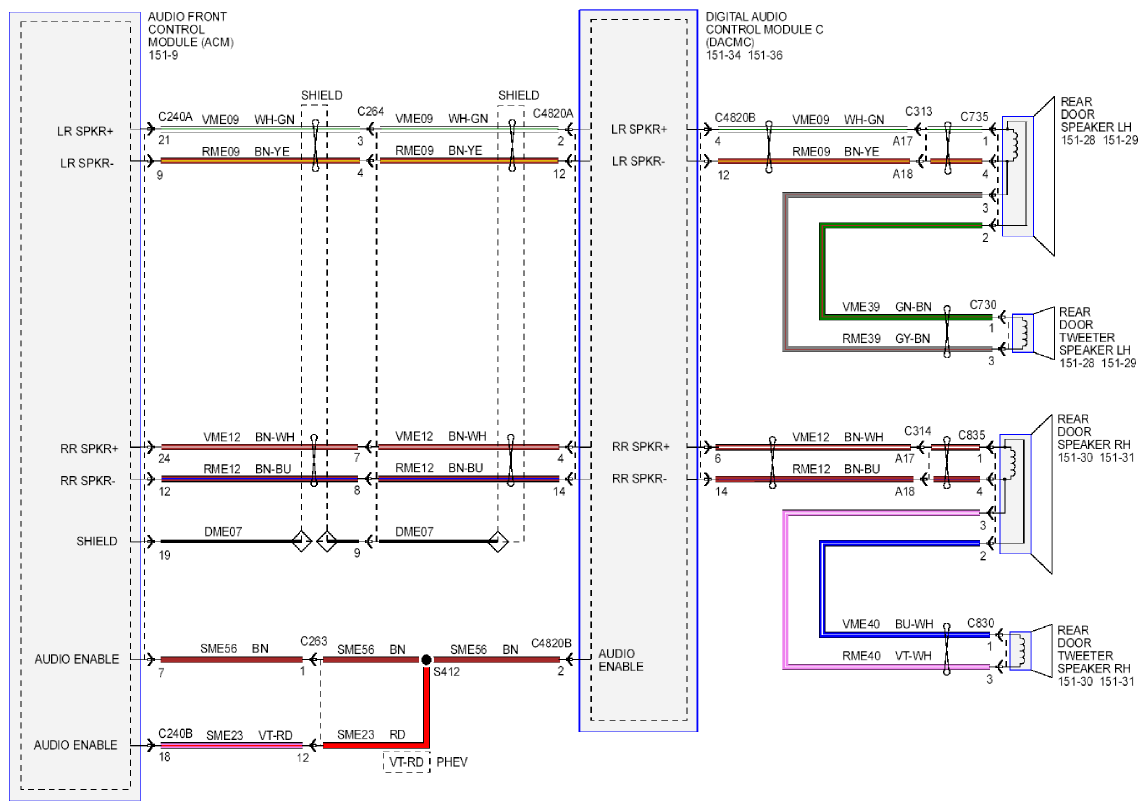

Fig 1: Audio System Navigation - MID Fusion - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

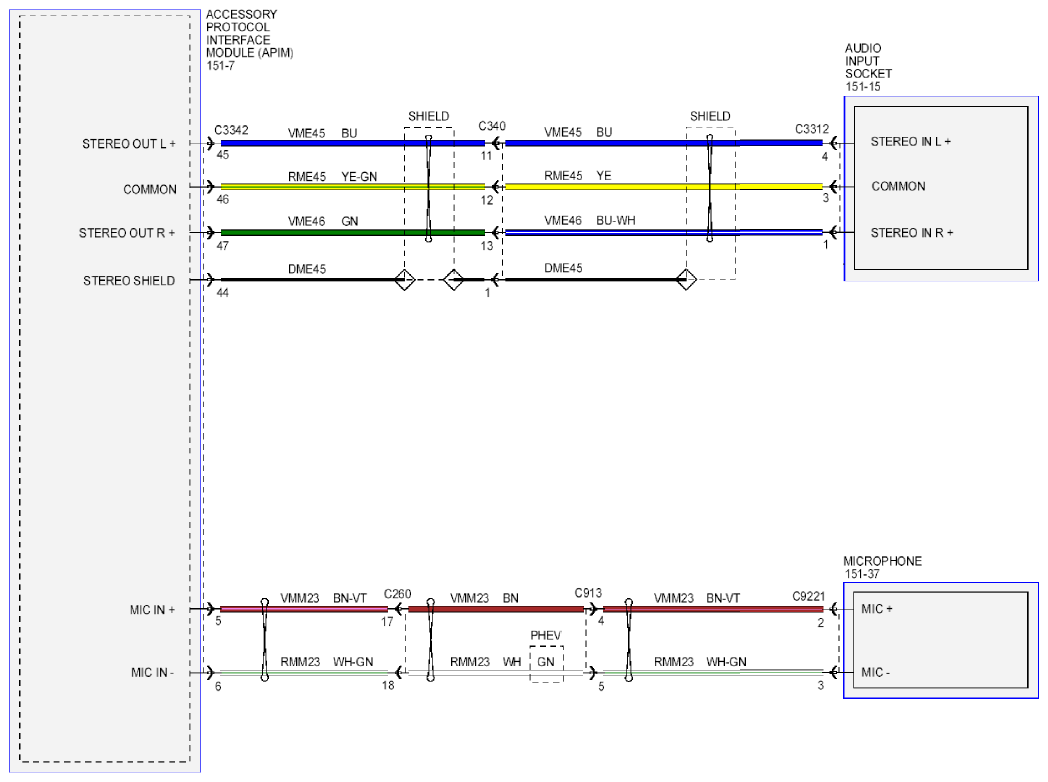

Fig 2: Audio System Navigation - MID Fusion - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

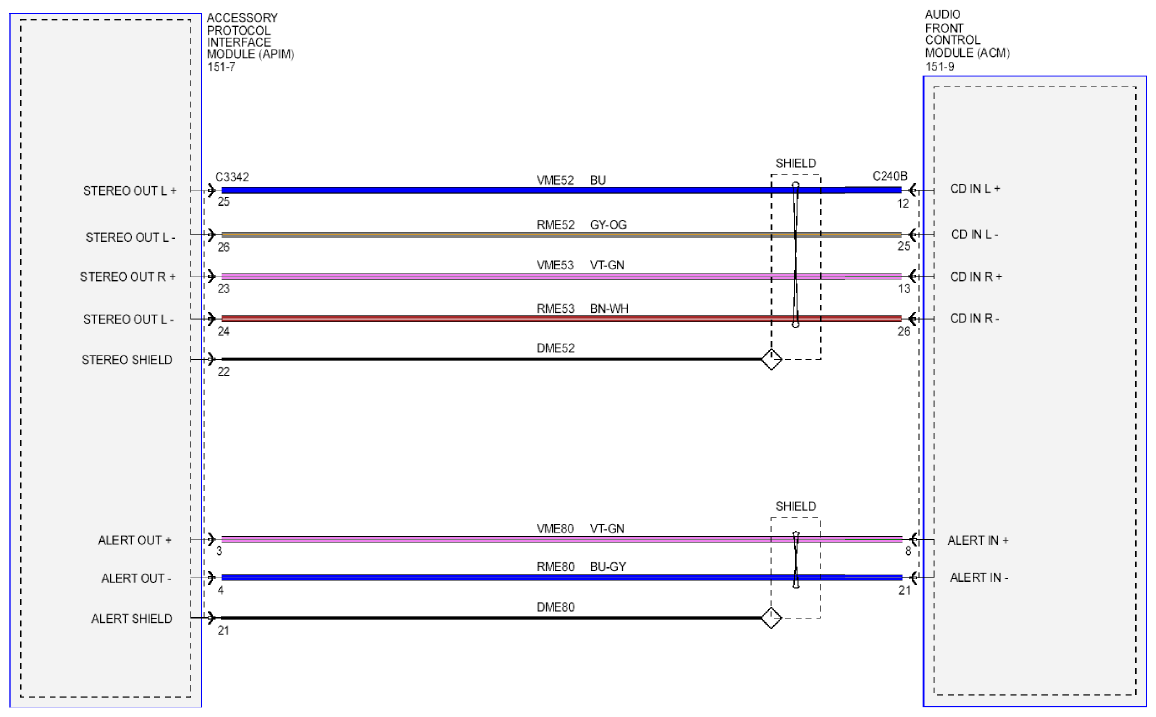

Fig 3: Audio System Navigation - MID Fusion - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

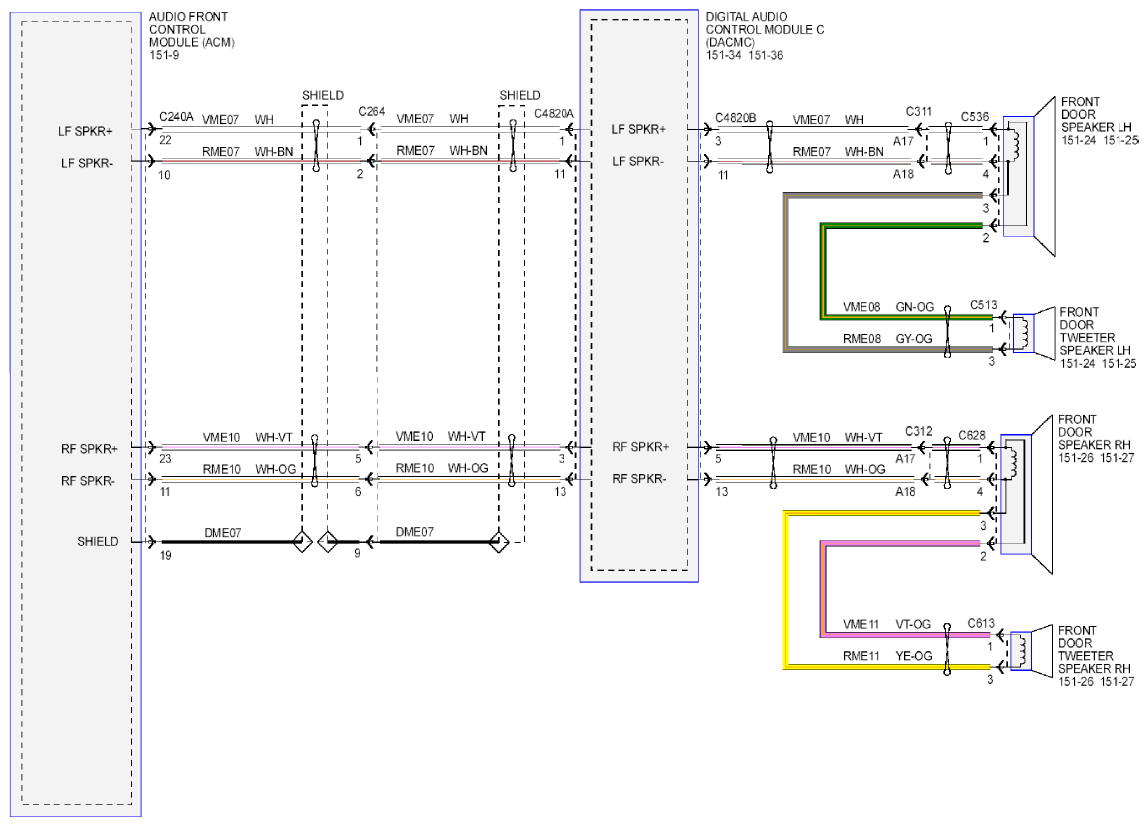

Fig 4: Audio System Navigation - MID Fusion - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
