Mid - Fusion With Touch Screen Display

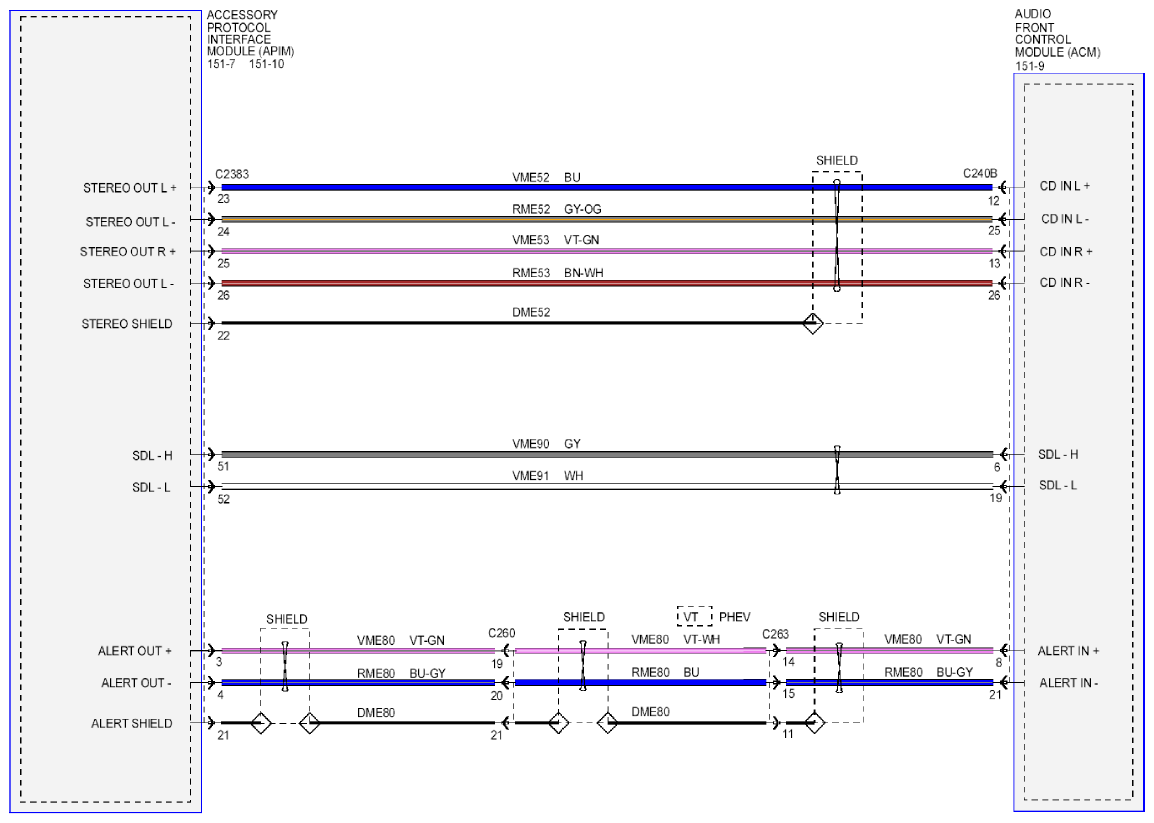

Fig 1: Audio System Navigation Base - MID Fusion With Touch Screen Display - Wiring Diagram

G09269591

Courtesy of FORD MOTOR CO.
