MKZ/Mid - Fusion With Touch Screen Display

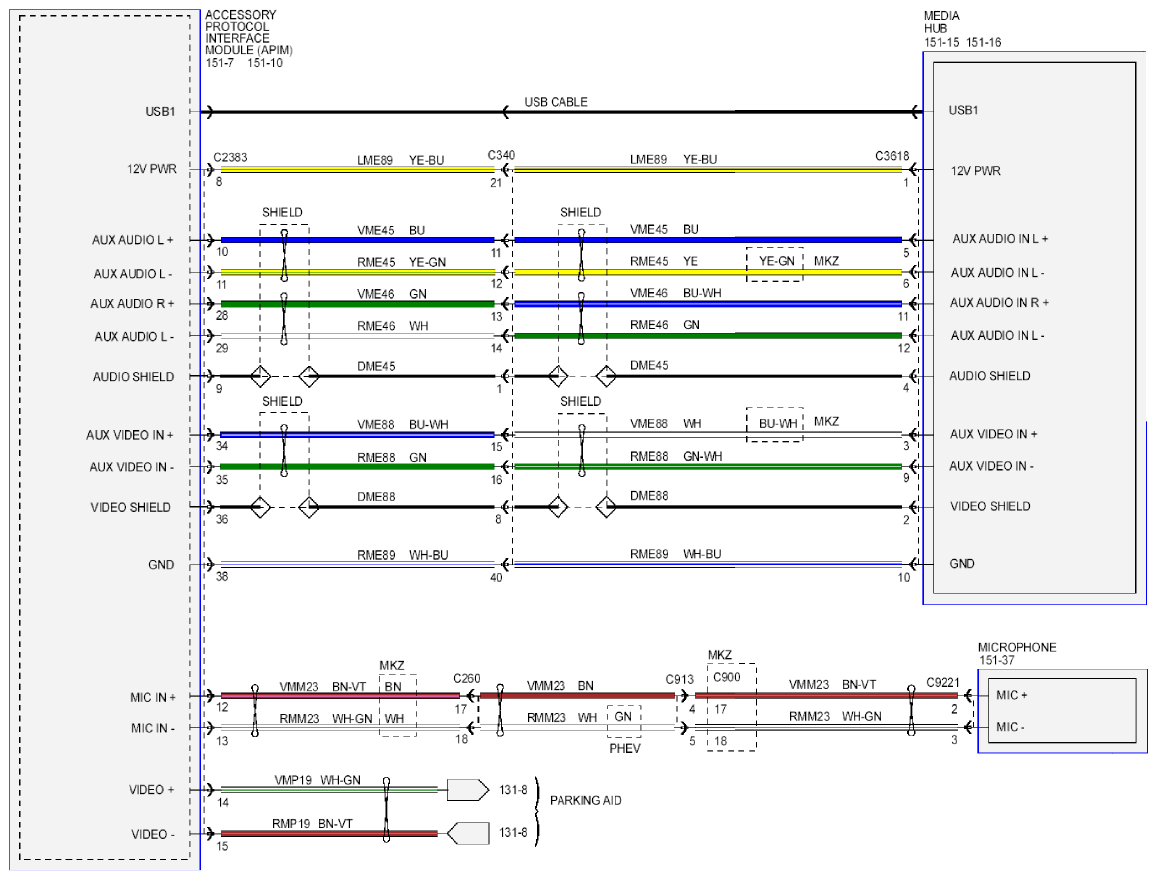

Fig 1: Audio System Navigation Base MKZ/MID - Fusion With Touch Screen Display - Wiring Diagram

G09269593

Courtesy of FORD MOTOR CO.
