Audio System/Navigation: Fusion

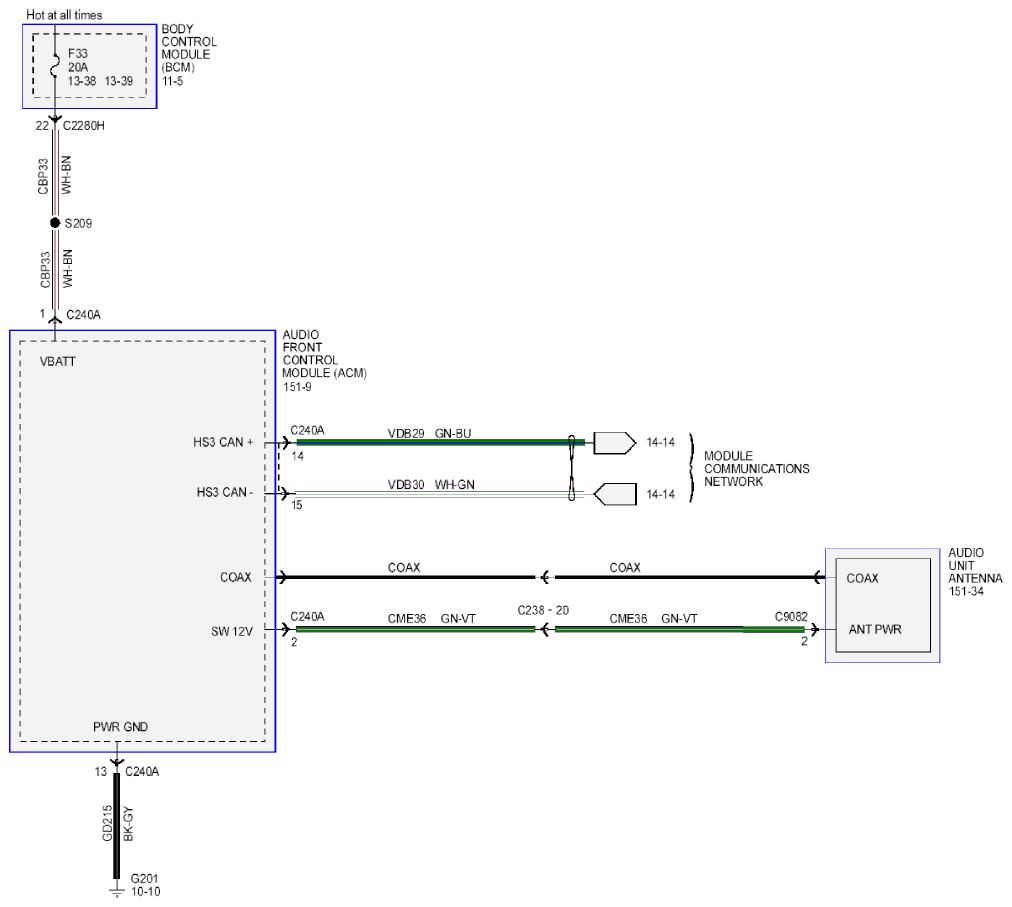

Fig 1: Audio System Navigation - Fusion - Wiring Diagram (1 Of 2)
G09269577Courtesy of FORD MOTOR CO.

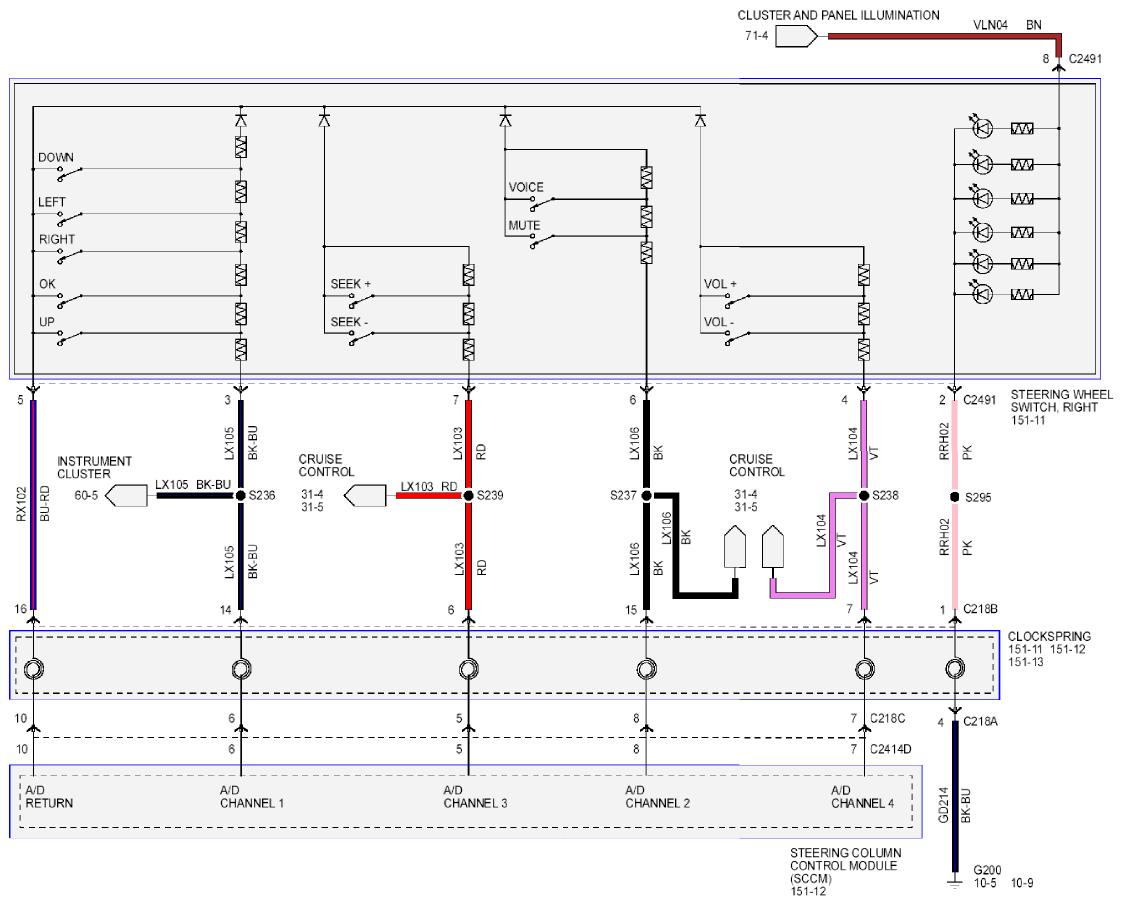

Fig 2: Audio System Navigation Fusion - Wiring Diagram (2 Of 2)
G09269604Courtesy of FORD MOTOR CO.
