OEM Wiring Diagrams -- (Hybrid)
>>
Audio System/Navigation
>>
Fusion With ANC
Fusion With ANC

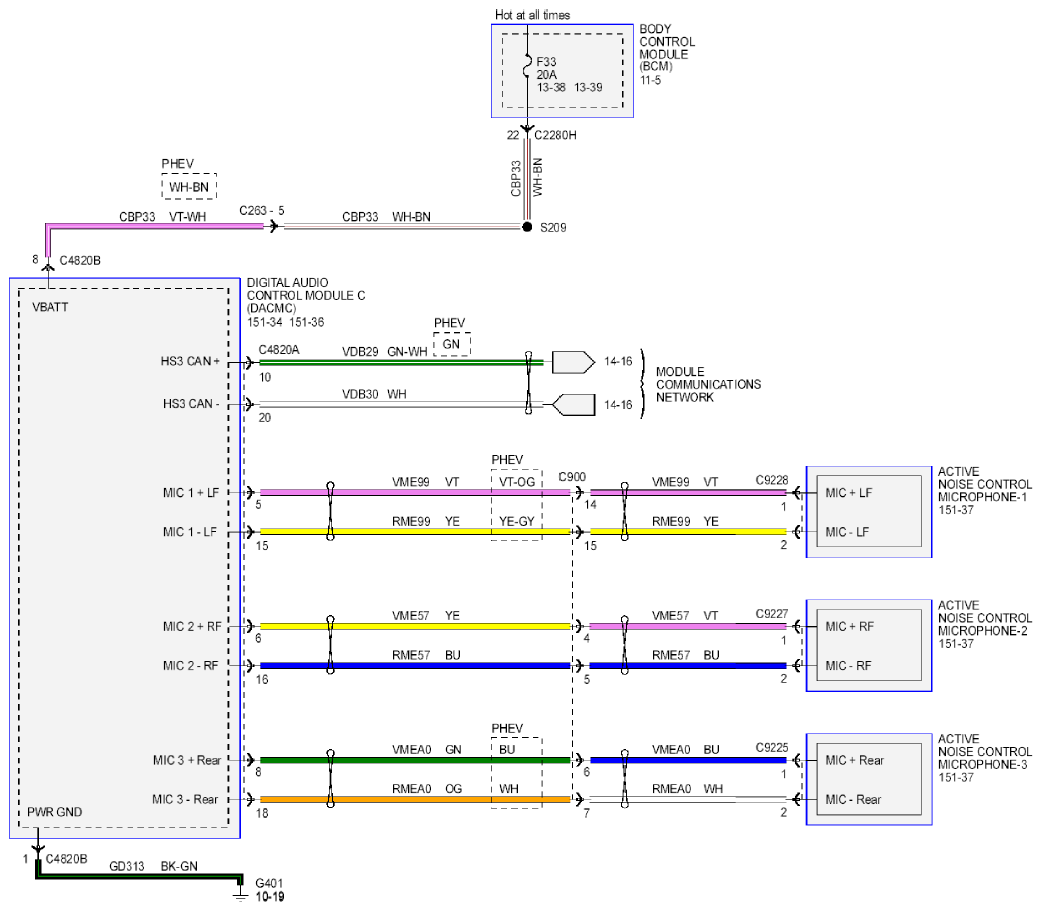

Fig 1: Audio System Navigation - Fusion With ANC - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
