All Wheel Drive (AWD)

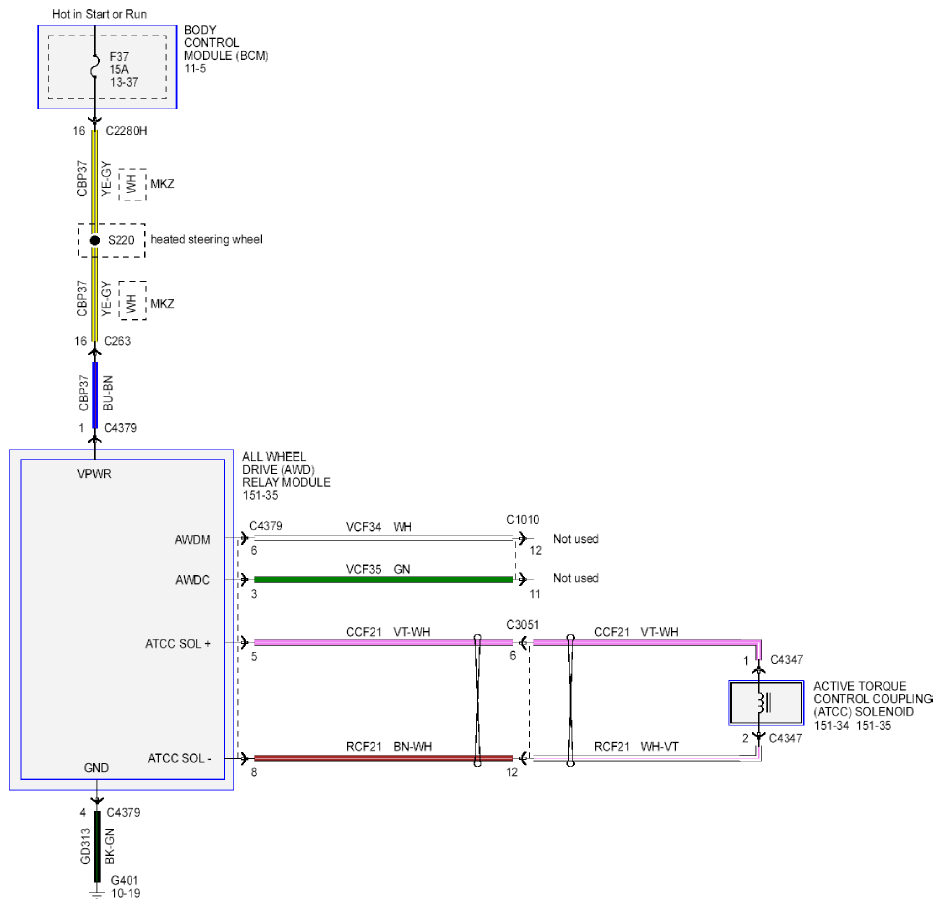

Fig 1: All Wheel Drive - Wiring Diagram

G09269427

Courtesy of FORD MOTOR CO.
