Adjustable Steering Column

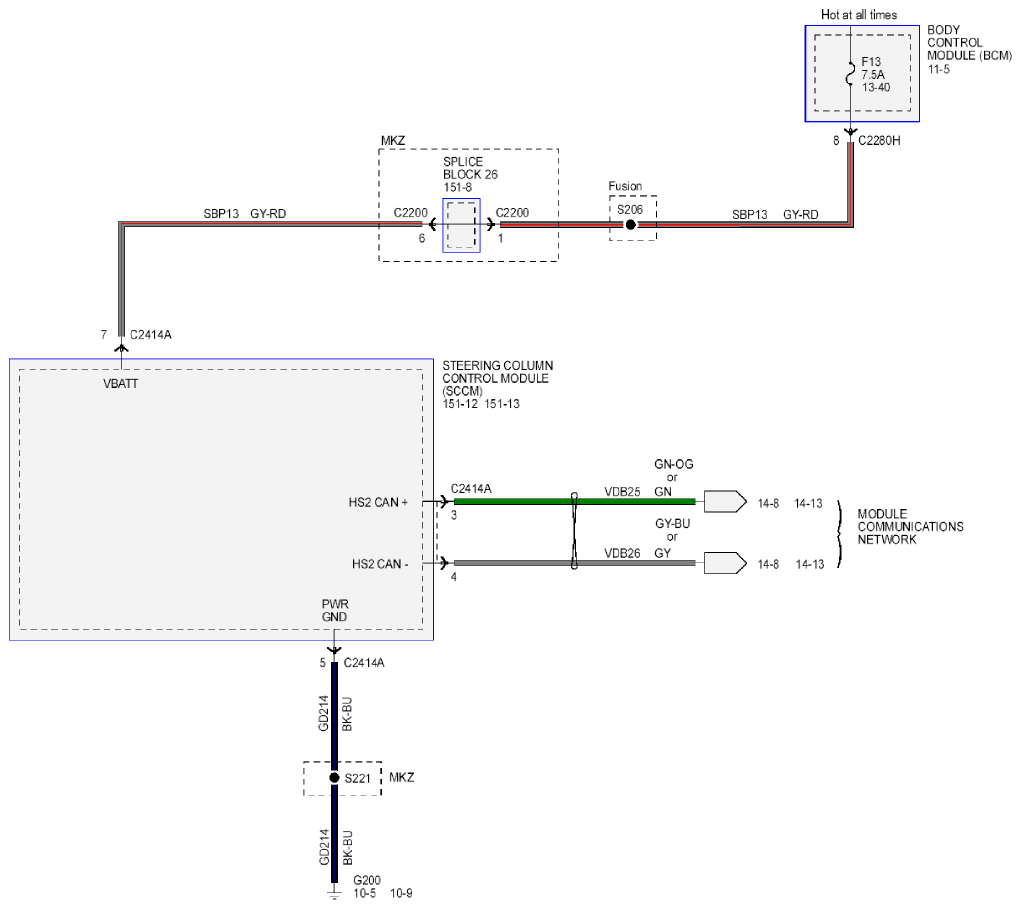

Fig 1: Adjustable Steering Column - Wiring Diagram (1 Of 4)
G09269573Courtesy of FORD MOTOR CO.

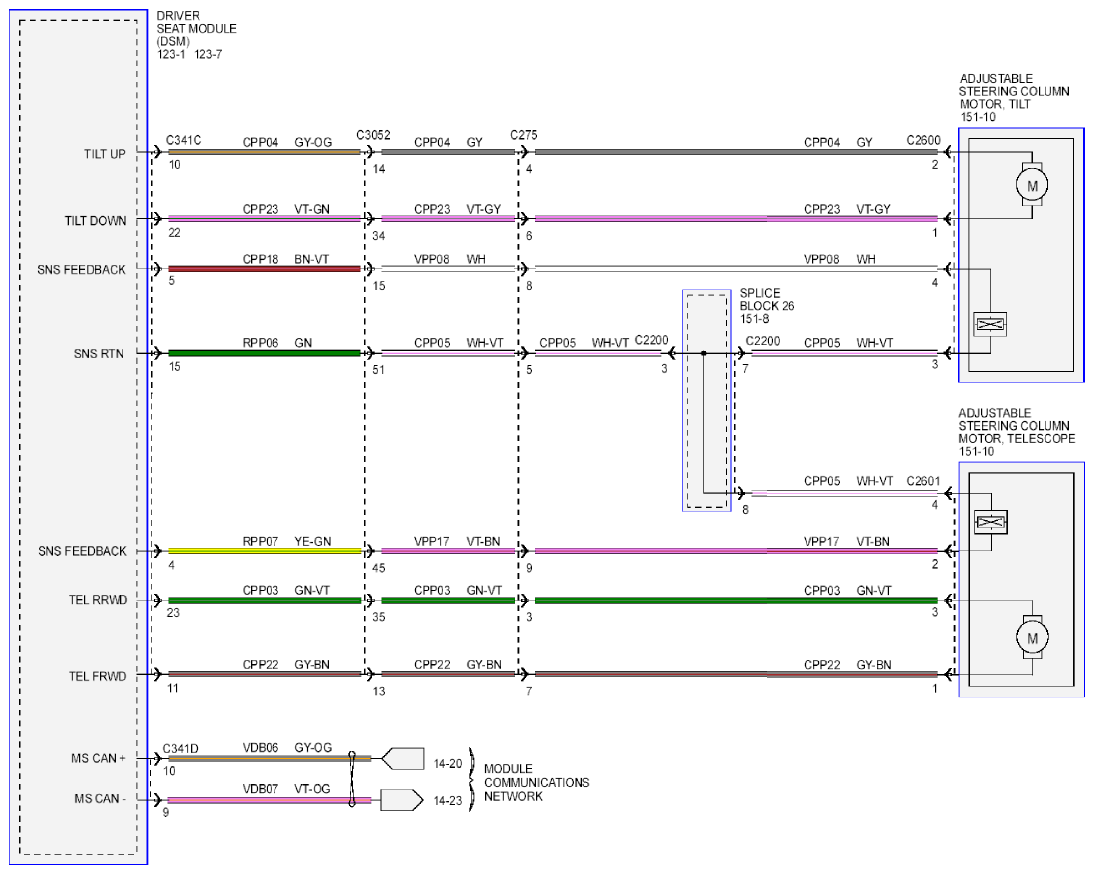

Fig 2: Adjustable Steering Column - Wiring Diagram (2 Of 4)
G09269574Courtesy of FORD MOTOR CO.

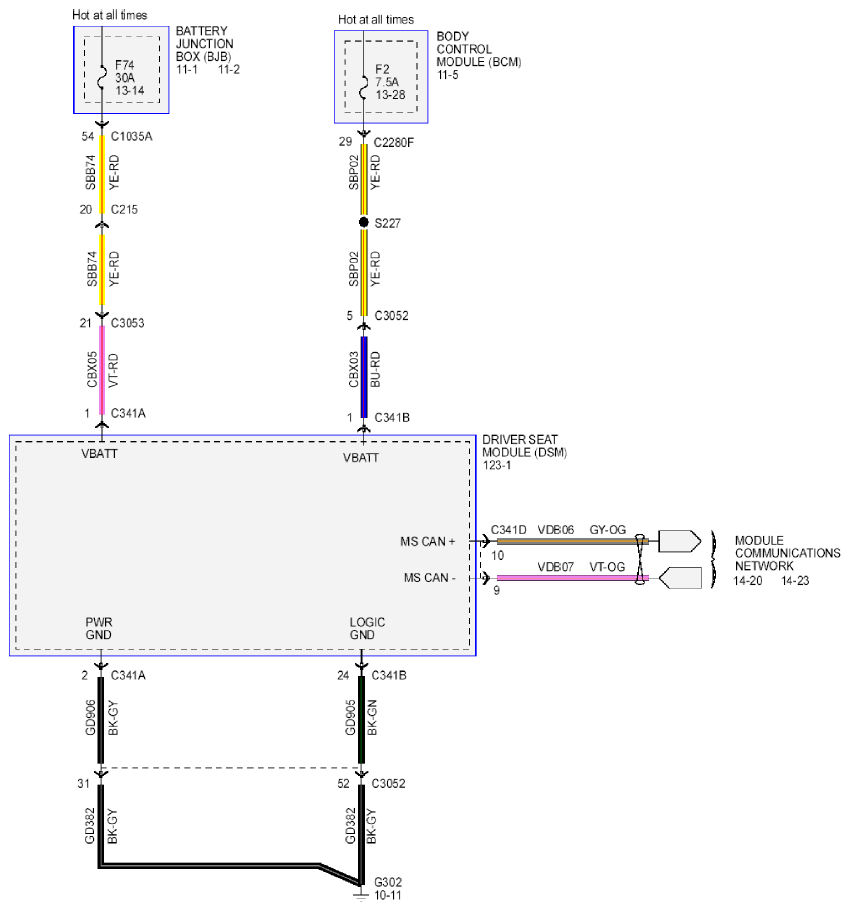

Fig 3: Adjustable Steering Column - Wiring Diagram (3 Of 4)
G09269575Courtesy of FORD MOTOR CO.

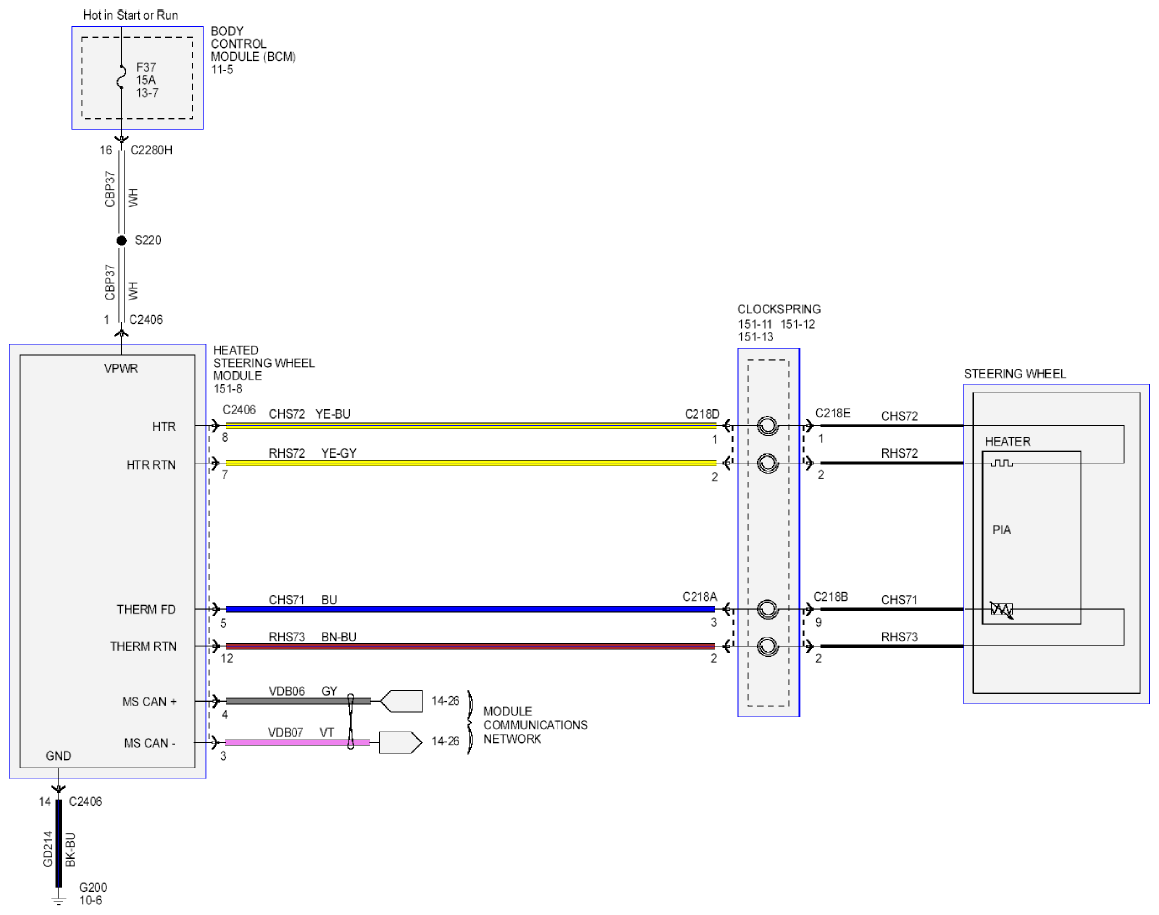

Fig 4: Adjustable Steering Column - Wiring Diagram (4 Of 4)
G09269576Courtesy of FORD MOTOR CO.
