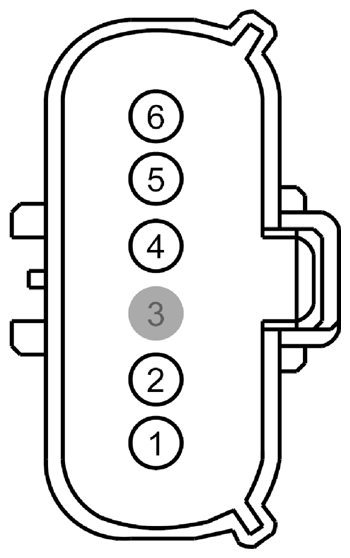

Transmission Fluid Pump Connector End View (C1717)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB17 (VT-RD) | 14 | FUSE - 17 OR CIRCUIT BREAKER | |
| 2 | CBB24 (VT-GN) | 20 | FUSE - 24 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | VYT11 (VT-GY) | 20 | CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) | |
| 5 | VYT12 (YE-GN) | 20 | PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) | |
| 6 | GD120 (BK-GN) | 14 | GROUND - FENDER FRONT LEFT |

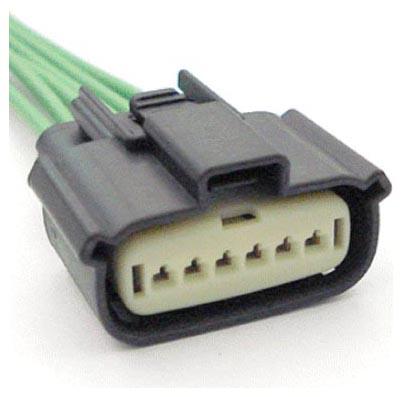

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-944 | Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses
|
