Transmission Control Module (TCM) Connector End View (C1719C)

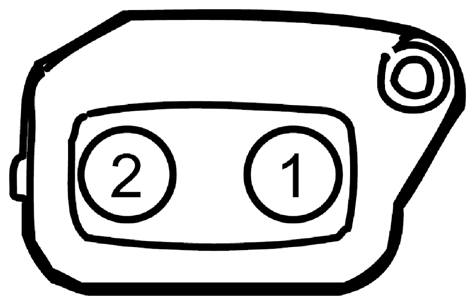

Fig 1: Identifying Transmission Control Module Connector (C1719C)
G09278568Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 HDC53 (OG) 4 HIGH VOLTAGE NEGATIVE (HVN)
2 HDC52 (OG) 4 HIGH VOLTAGE POSITIVE (POS)
