Splice Block 6 Connector End View (C2446)

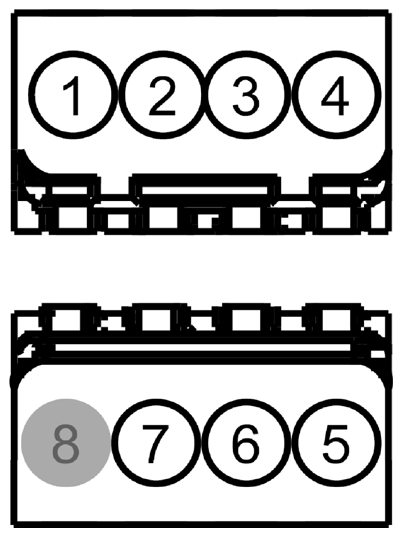

Fig 1: Identifying Splice Block 6 Connector (C2446)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD214 (BK)	26	GROUND - INSTRUMENT PANEL STRUCTURE
2	GD214 (BK)	26	GROUND - INSTRUMENT PANEL STRUCTURE
3	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
4	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
5	GD214 (BK)	26	GROUND - INSTRUMENT PANEL STRUCTURE
6	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE
7	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
8	*	*	Not Used
