Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458E)

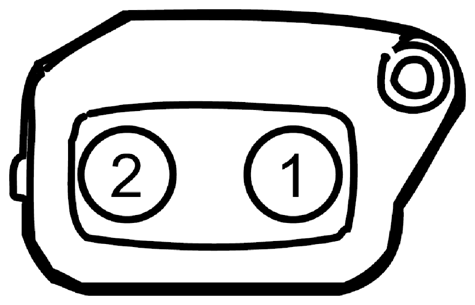

Fig 1: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458E)
G09278507Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 HDC53 (OG) 4 HIGH VOLTAGE NEGATIVE (HVN)
2 HDC52 (OG) 4 HIGH VOLTAGE POSITIVE (POS)
