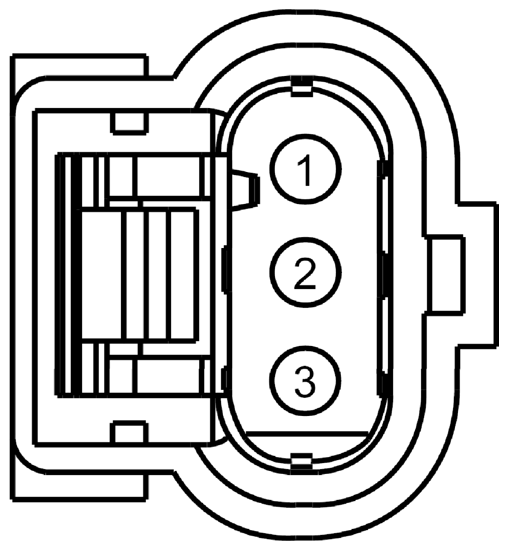

Motor Electronics Coolant System Pump (MECSP) Connector End View (C1472)

Fig 1: Identifying Motor Electronics Coolant System Pump Connector (C1472)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	GD122 (BK)	18	GROUND - FENDER FRONT LEFT # 3RD POINT
2	CBB54 (BU-BN)	18	FUSE - 54 OR CIRCUIT BREAKER
3	CE318 (VT)	18	CTRL MOD. - POWERTRAIN # MOTOR ELECTRONICS COOLANT SYSTEM PUMP (VPWR)

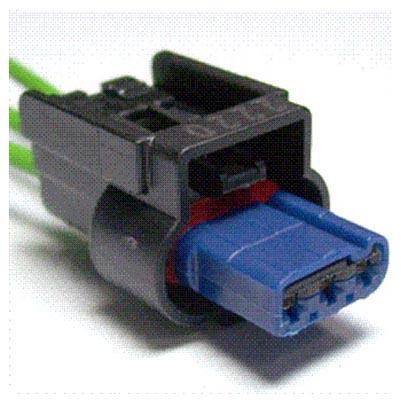

Available Pigtail Kits
Pigtail Kit Part Number WPT-1202	Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Actuator - Turbocharger Waste Gate Coil - Ignition Sensor - Cam Shaft Position Sensor - Crank Shaft Position
