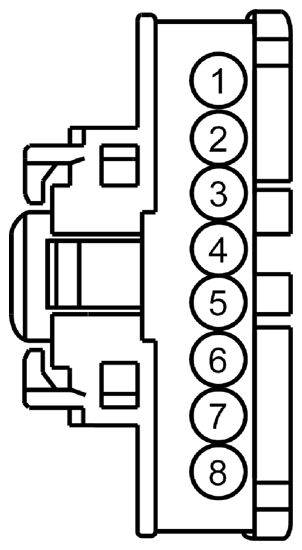

Instrument Panel Console Switch Assembly Connector End View (C2114)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD214 (BK) | 26 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 2 | VLN04 (VT) | 26 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 3 | CMP32 (GN) | 26 | SWITCH - ACTIVE PARK ASSIST (AUTOPARK) | |
| 4 | CH253 (BN-WH) | 26 | CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE | |
| 5 | CMP18 (GN-WH) | 26 | SWITCH - PARKING AID | |
| 6 | CMP31 (VT-WH) | 26 | CTRL MOD. - ACTIVE PARK ASSIST (AUTOPARK) # INDICATOR STATUS | |
| 7 | CE469 (BN) | 26 | CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR | |
| 8 | CMP02 (BU) | 26 | CTRL MOD. - PARKING AID # INDICATOR STATUS |

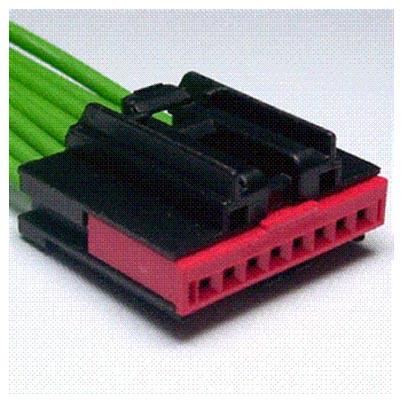

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1270 | Service Part Number: CU2Z-14S411-VA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
