Inline Connector End View (C1824)

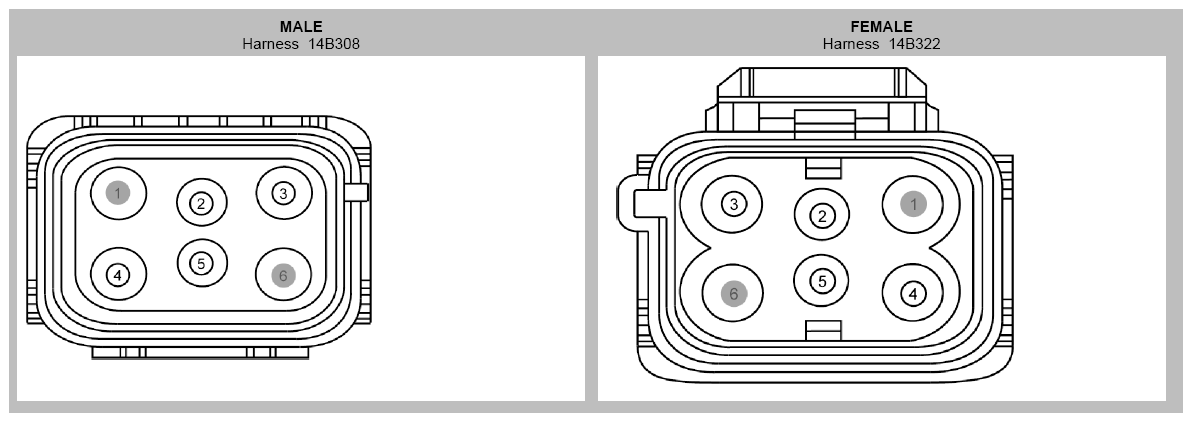

Fig 1: Identifying Inline Connector (C1824)
G09278590Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 * *
2 CYB56 (WH-VT) 20
3 HYB53 (OG) 10
4 HYB54 (OG) 10
5 CYB55 (YE-GY) 20
6 * *
